Brass Waterproof Cable Gland(Short Claw Type)

•Protection Degree: IP68(within fastening range, 0 Type was her will be uesd in tightening part)

• Thread: German (PG)/Metric/British(G) / American(NPT)

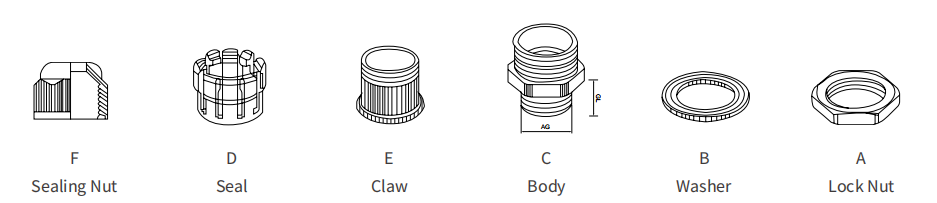

Materials:Part A.C.F is made of UL certified nickel plated brass, part E is made of UL approved nylon PA66(fire rating UL94V-2), part B.D butadiene rubber (NBR) or EPDM
Working Temperature: -40℃ to 100℃ in static state, instantaneous heat resistance up to 120℃
Product Features: Wide range for fastening cables, strong tensile strength, waterproof, dustproof, resistant to a cid and alkali,alcohol, grease and general solvents

Model	Cable Range(mm)	Thread O.D.AG(mm)	Thread Length GL(mm)	Spanner Size(mm)
PG7	3-6.5	12.5	6	14
PG9	4-8	15.2	7	17
PG11	5-10	18.6	7.5	20
PG13.5	6-12	20.4		22
PG16	10-14	22.5		24
PG19	10-15	24	8	25
PG21	13-18	28.3	8	30
PG25	15-20	30	9	33
PG29	18-25	37	9	40
PG36	25-32	47	10	50
PG42	32-38	54	11	57
PG48	37-44	59.3	11	64
PG63	42-52	72	20	78

Model	Cable Range(mm)	Thread O.D.AG(mm)	Thread Length GL(mm)	Spanner Size(mm)
M8x1	2-5	8	5	12
M10x1(1.5)	3-6.5	10	6	14
M12x1.5	3-6.5	12	6	14
M14x1.5	4-8	14	7	17
M16x1.5	4-8	16		17
M18x1.5	5-10	18		20
M20x1.5	6-12	20	7.5	22
M22x1.5	10-14	22	7.5	24
M24x1.5	10-15	24	8	26
M25x1.5	12-16	25		27
M25x1.5	13-18	25		30
M27x1.5(2)		27
M28x1.5(2)		28	9
M30x1.5(2)	15-20	30		33
M32x1.5(2)	16-22	32		35
M33x1.5(2)	16-22	33		35
M36x1.5(2)	18-25	36		40
M38x1.5(2)	18-25	38		40
M40x1.5(2)	22-30	40		45
M42x1.5(2)	22-30	42		45
M48x1.5(2)	22-32	48	10	50
M50x1.5(2)	32-38	50		57
M54x1.5(2)	32-38	54		57
M58x1.5(2)	37-44	58	11	64
M60x1.5(2)		60		64
M63x1.5(2)		63		68
M64x1.5(2)		64		68
M70x2	42-52	70	20	78
M72x2		72
M75x2		72
M80x2	55-62	80		87
M88x2	62-70	88		95
M90x2	62-70	90		95
M100x2	76-84	100		111

×
