KV-M20T

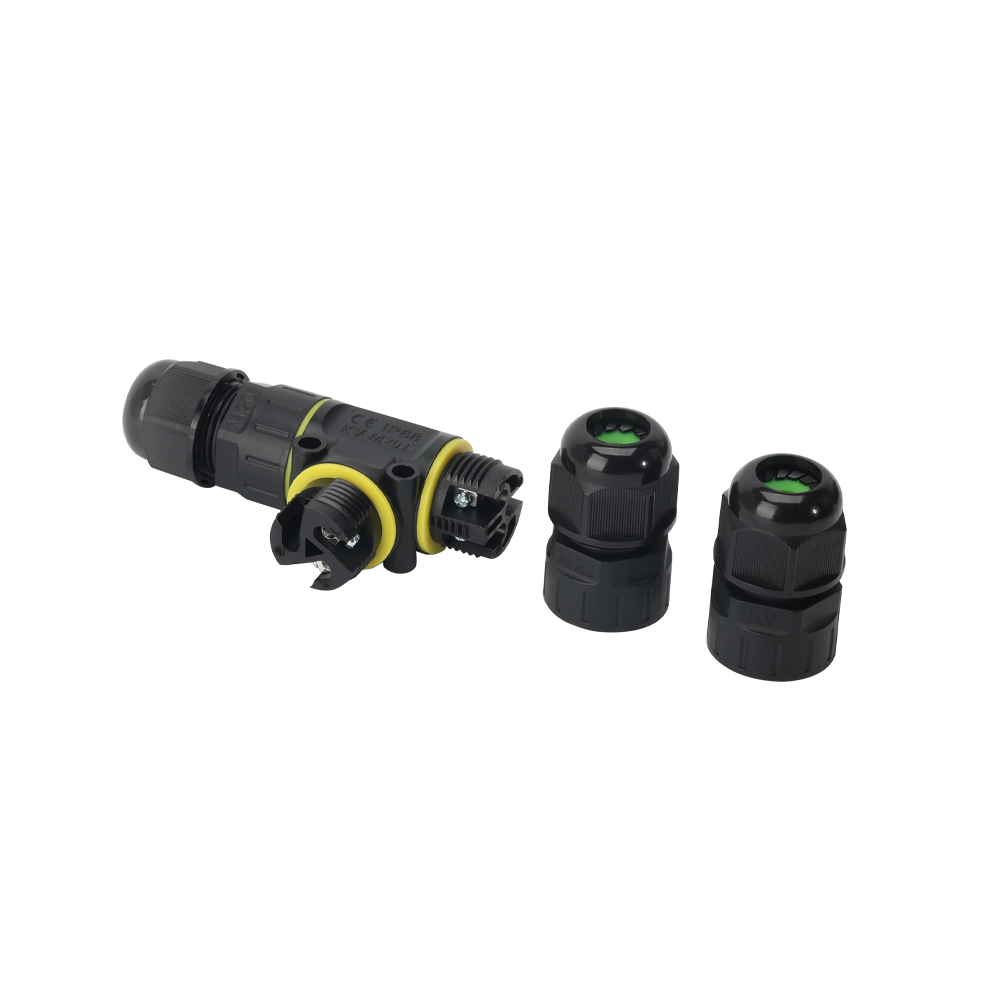

Waterproof Butt Connector KV-M20T
Rated Voltage: 450V
Current Rating: 24A
Wire Section: 0.5mm²-2.5mm²
Materials: PA66

Specifications

Number of Poles	2Pin/3Pin/4Pin
Rated Voltage	450V
Current Rating	24A
Wire Section	0.5mm²-2.5mm²
Min Wire Size OD	5-9mm,9-12mm
Temperature Rating	-40℃~+105℃
Waterproof grade IP Code	IP68
Housing Materials	PA66
Terminal Material	Nickel-Plated Brass

×
