KV-M25Y

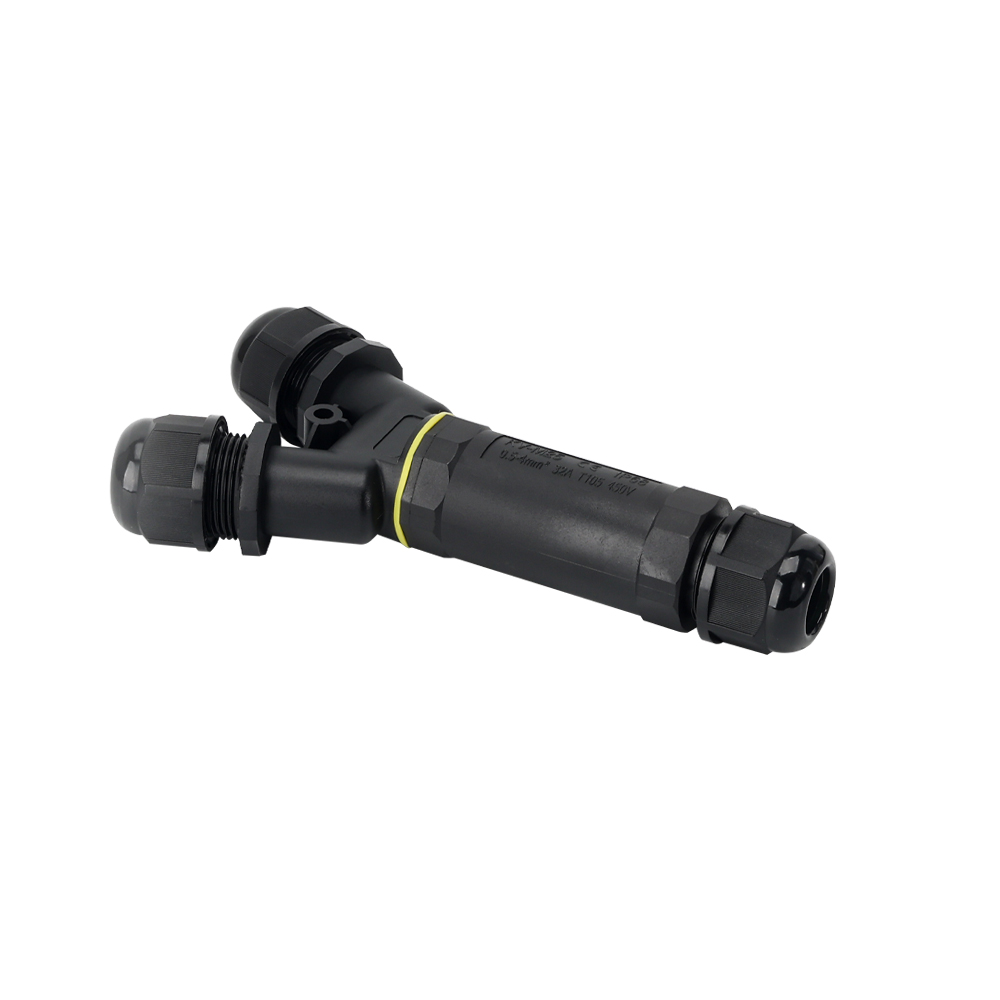

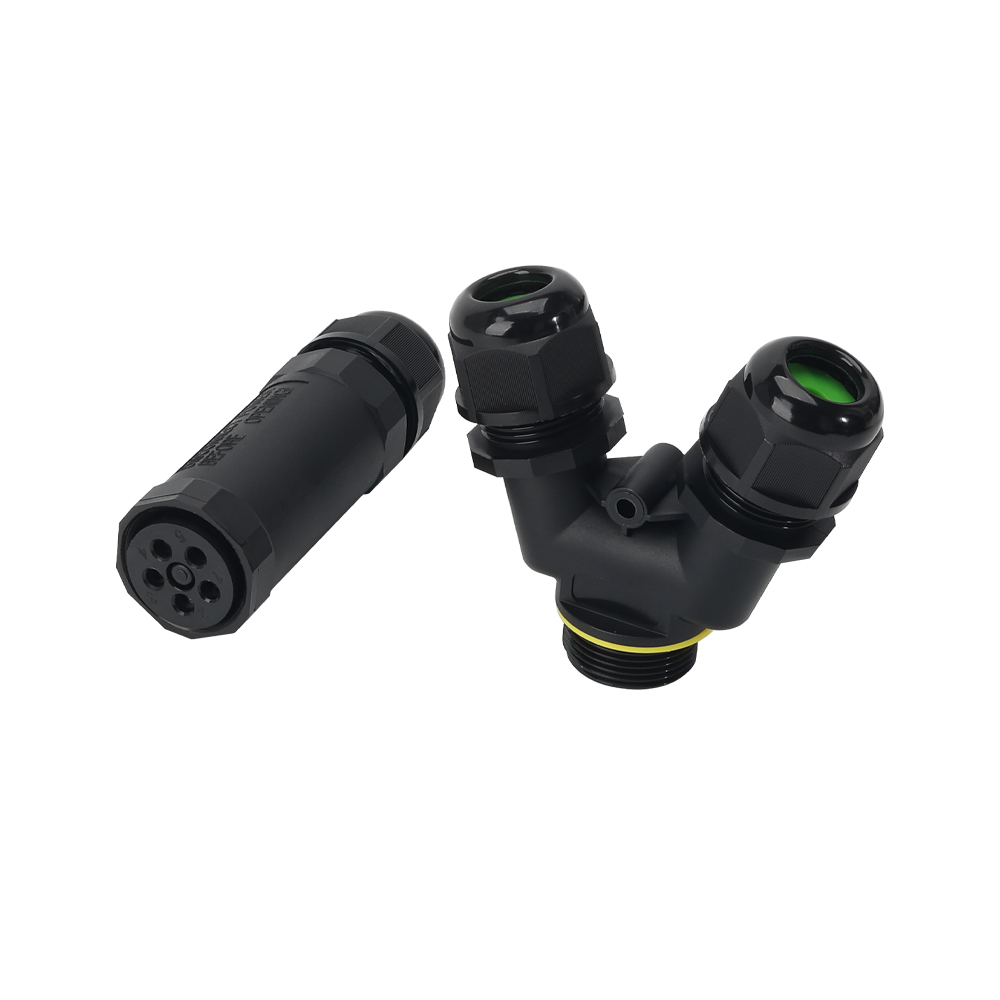

Waterproof Butt Connector KV-M25Y
Rated Voltage: 450V
Current Rating: 32A
Wire Section: 0.5mm²-4mm²
Materials: PA66

Specification

Number of Poles	2Pin/3Pin/4Pin/5Pin
Rated Voltage	450V
Current Rating	32A
Wire Section	0.5mm²-4.0mm²
Min Wire Size OD	5-9mm,9-12mm,10-14mm
Temperature Rating	-40℃~+105℃
Waterproof grade IP Code	IP68
Housing Materials	PA66
Terminal Material	Nickel-Plated Brass

×
