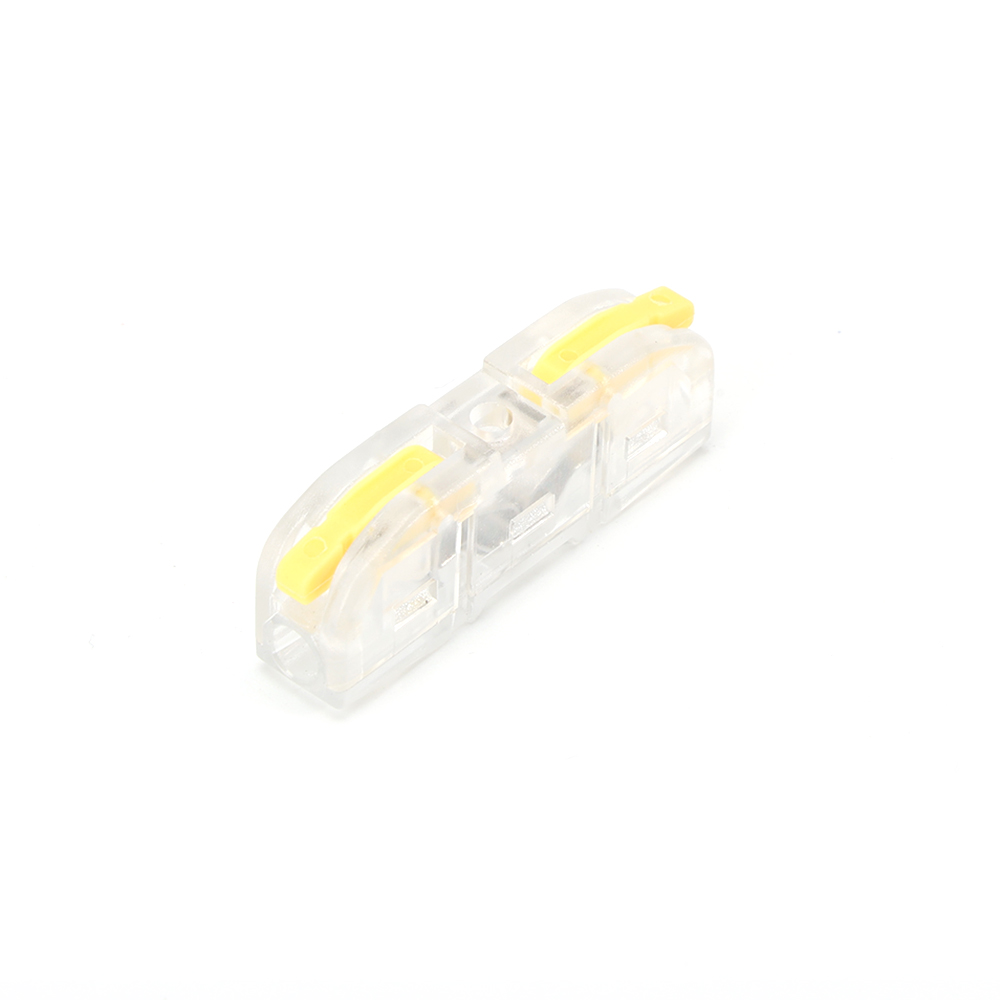

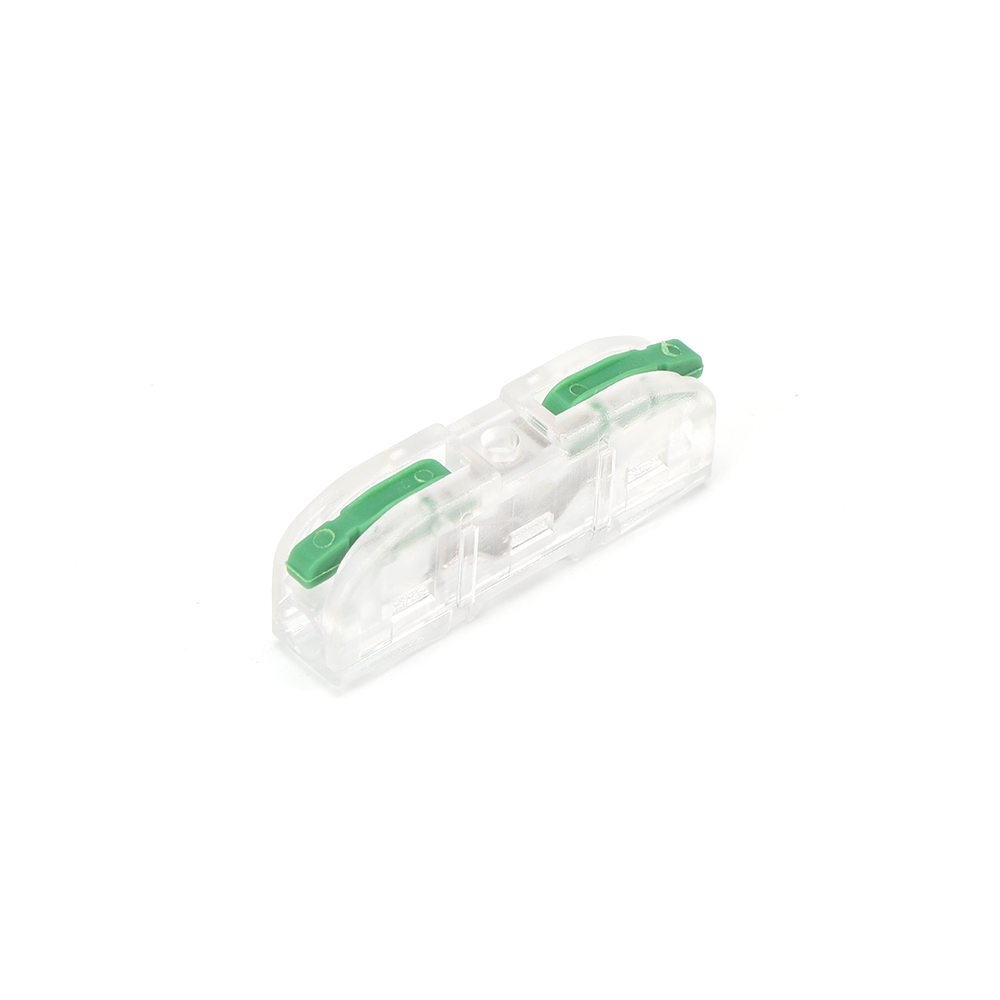

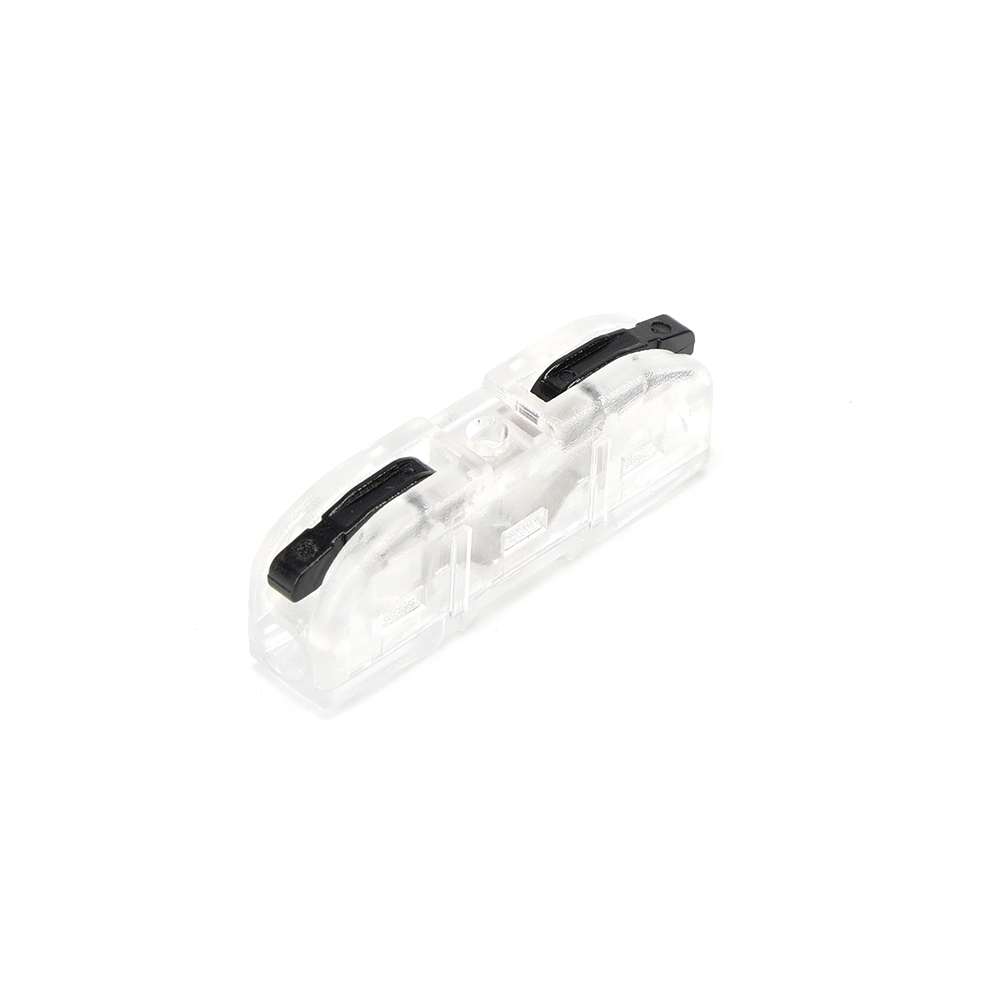

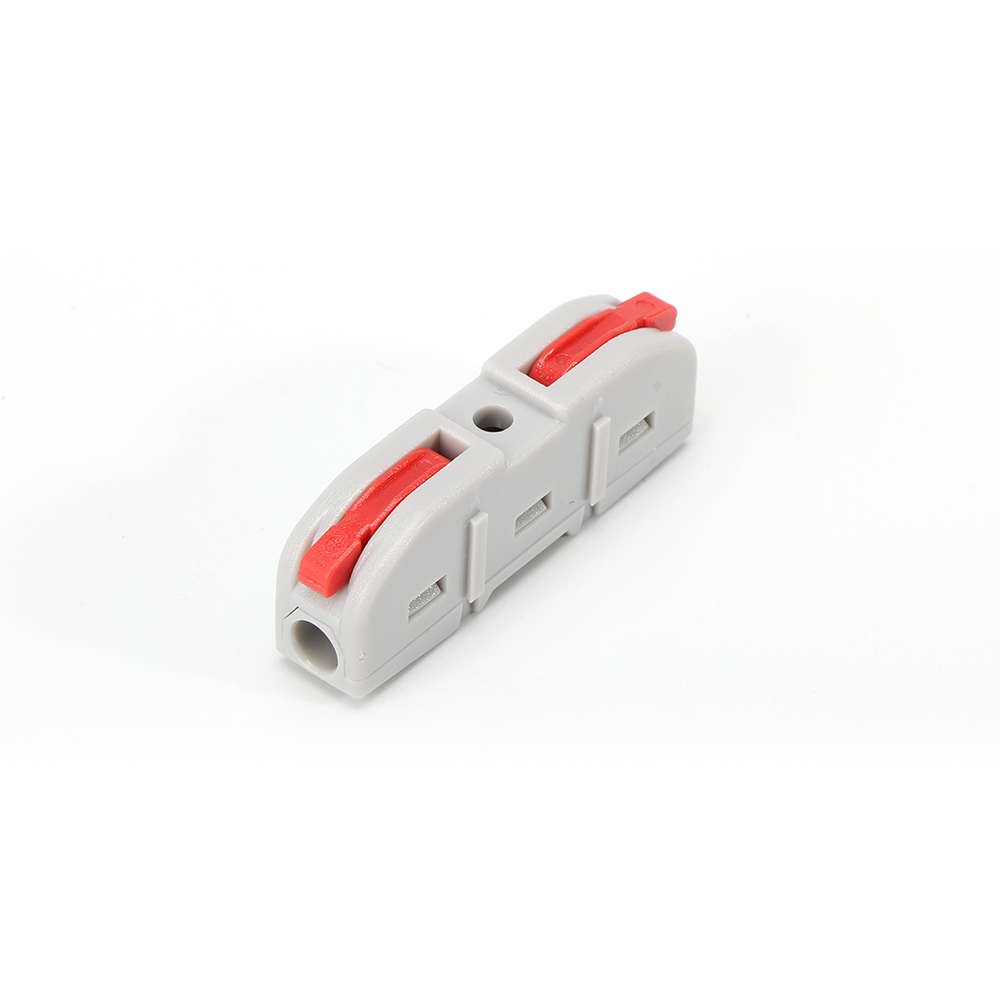

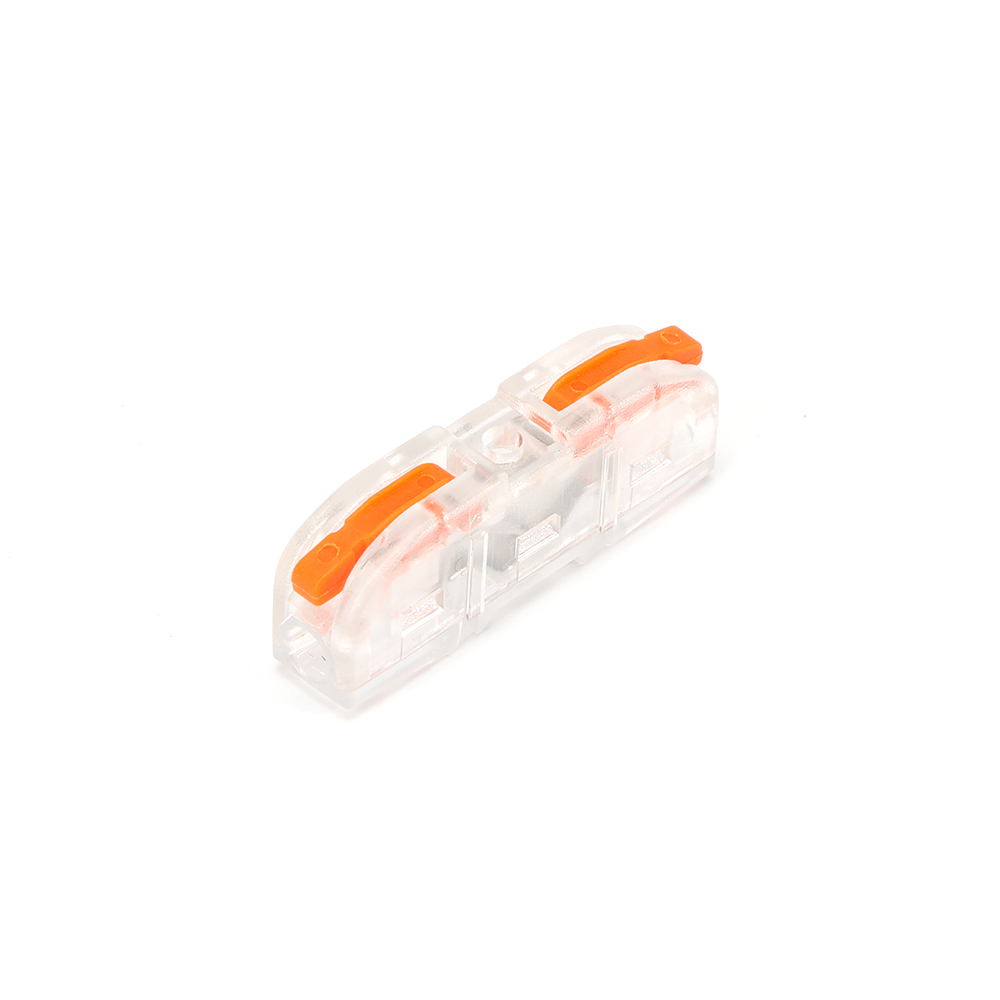

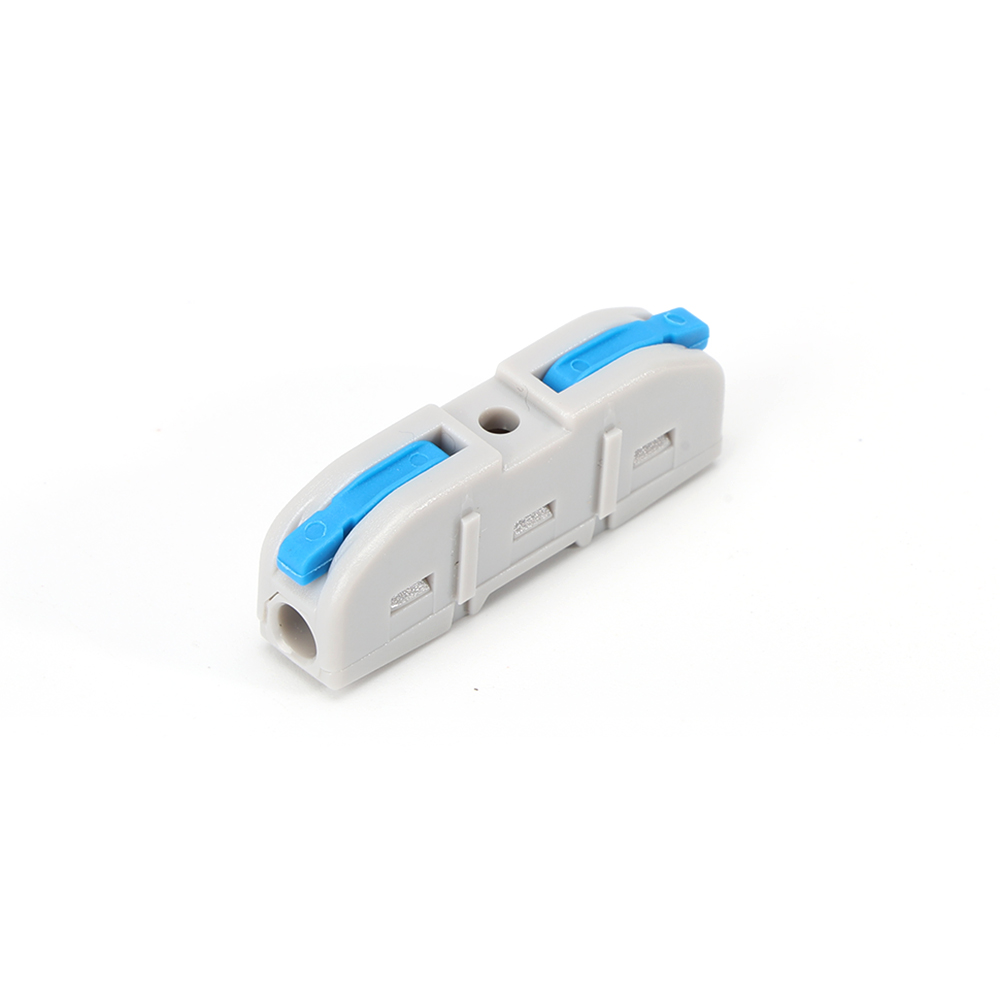

KV211

Applicable Wires: 0.2-4 mm²

Operating temperature: -25℃~95℃

Rated voltage: 250 V/600 V

Rated current: 32 A

Material of connectors shell: Nylon PA66/Polycarbon PC

Material of conductive parts: Brass Tin/plated

Characteristics:

Faster Wiring: KV211 lever terminals replace traditional tape/terminals with tool-free operation, saving installation time and space while supporting reuse.
Universal Connectivity: Compact bidirectional design handles 28-12 AWG stranded/solid wires for appliances, automotive, lighting, and industrial controls.
Error-Proof Color Coding: Multi-color levers (orange/red/yellow) prevent circuit mix-ups, requiring only 0.2-4mm² wire insertion at 90° for instant secure connections.

Technical Parameters

Applicable Wire Gauge	0.2-4mm²/28-12 AWG
Temperature range	-25℃~95℃
Rated Voltage	250V/600V
Rated Current	32A
Contact resistance	≤0.015Ω
Insulation resistance	≥1000mΩ
Material	Shell: Nylon PA66/Polycarbon PC(Nyion)UL94V-2(0)
	Contact piece: Brass Tin/plated
	Spring buckle: Imported 301 stainless steel
Reach	15 tests
Allowance	±0.05mm
