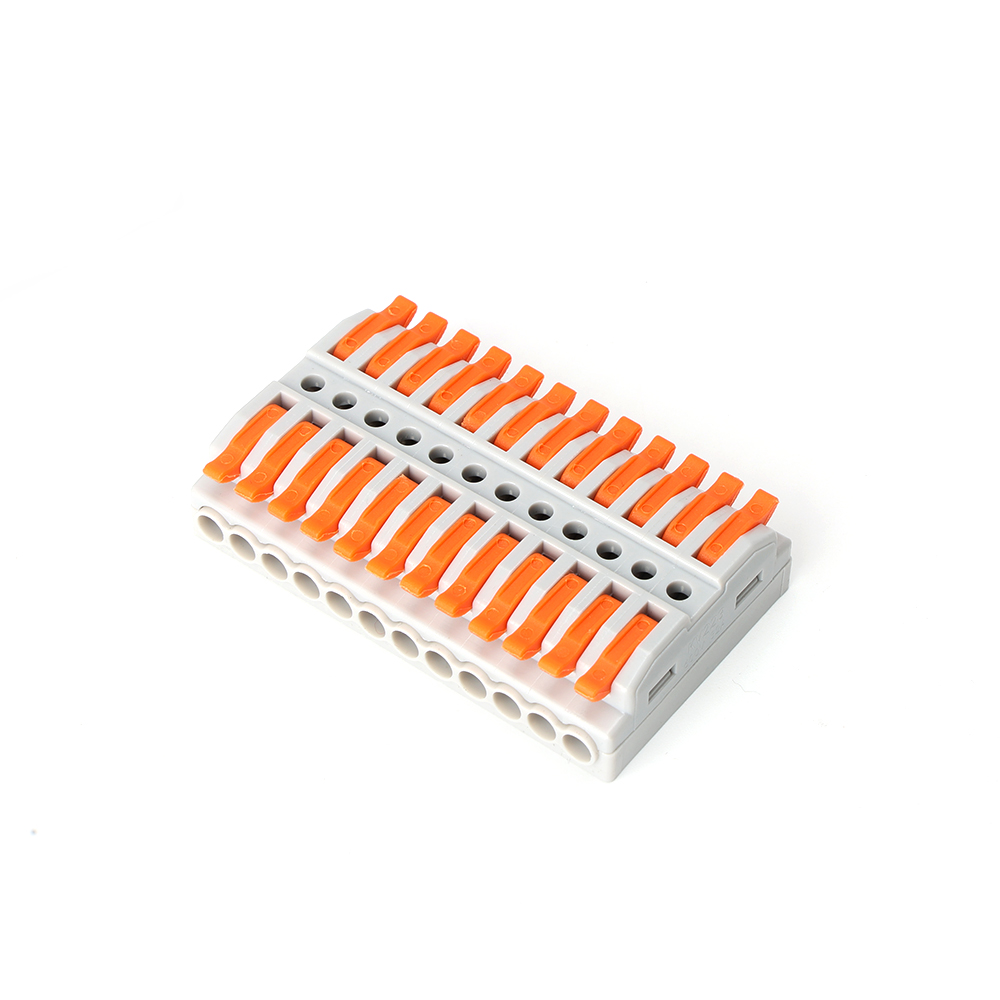

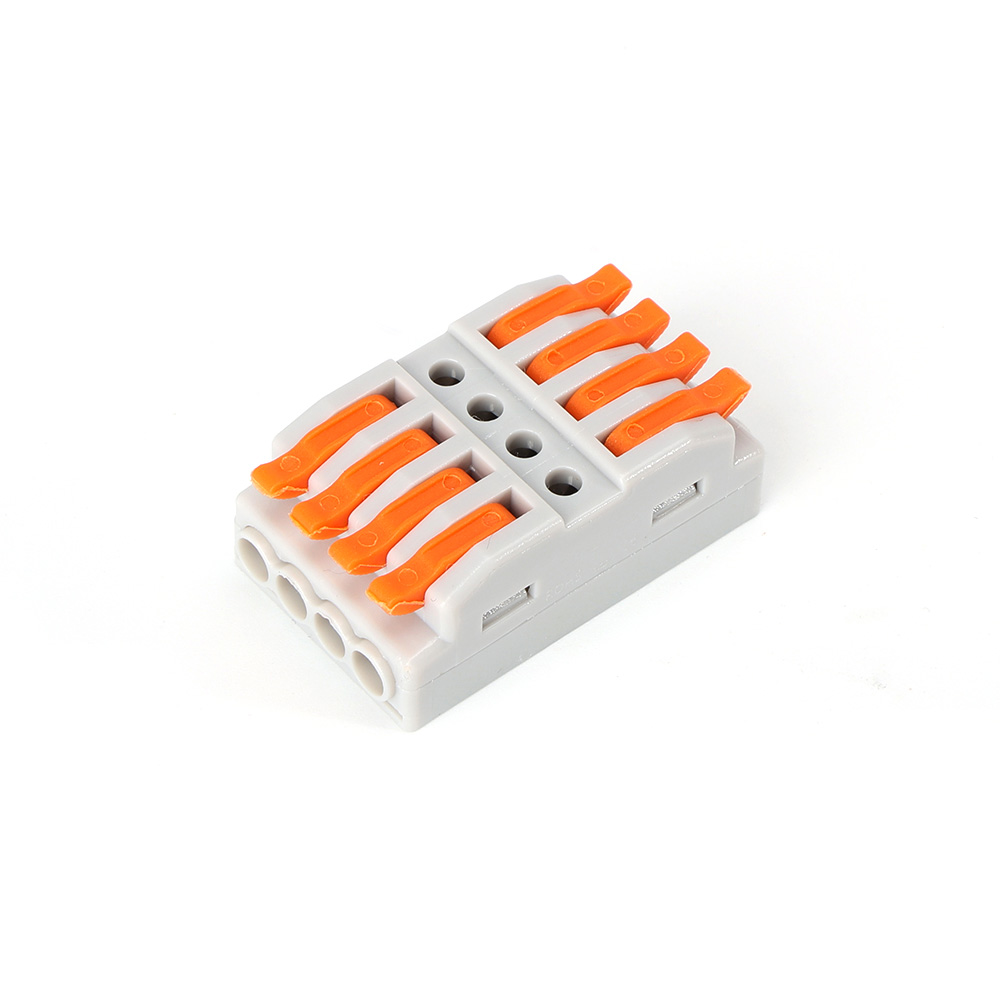

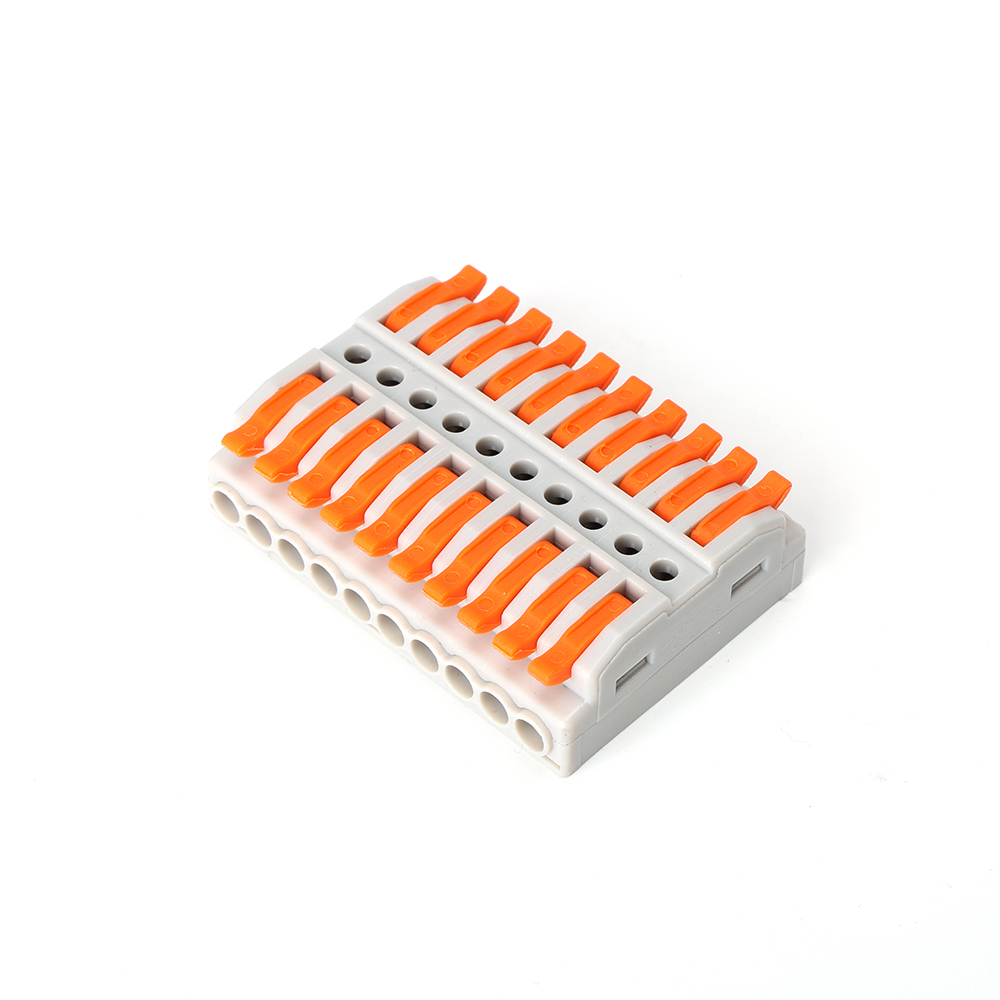

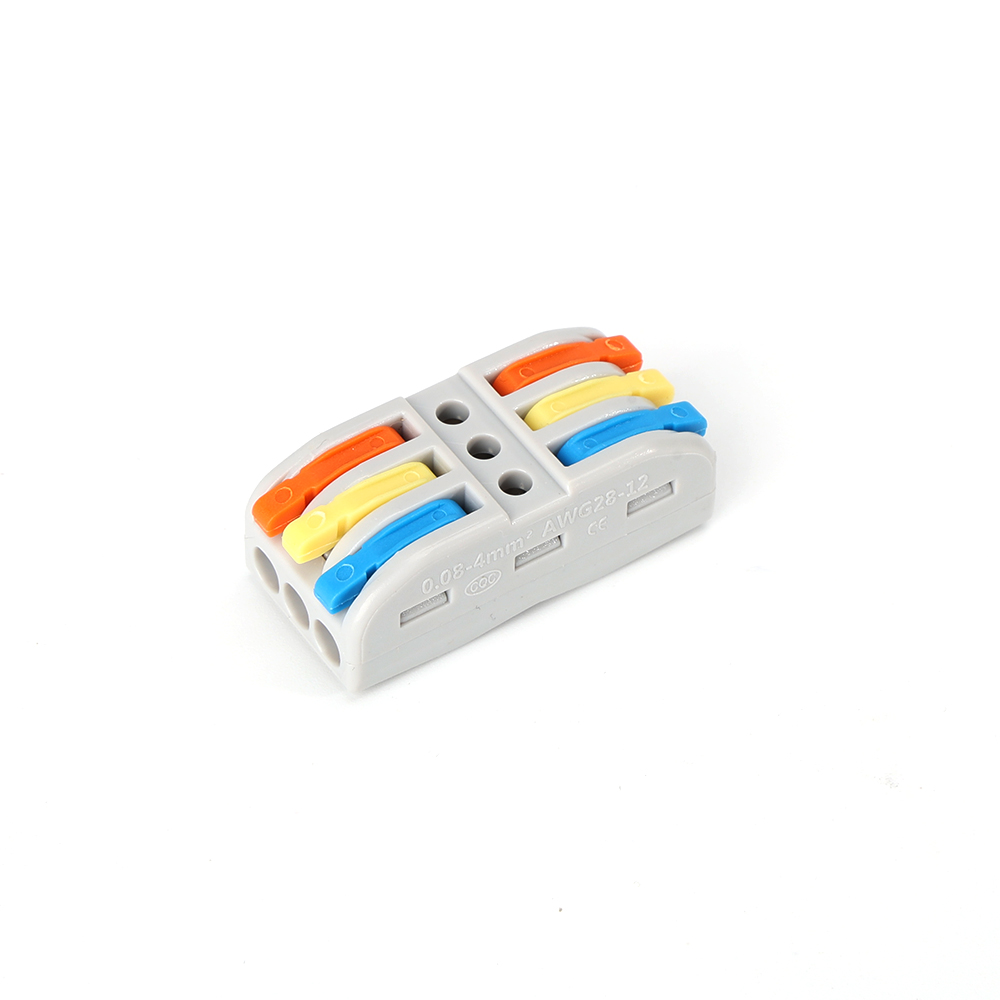

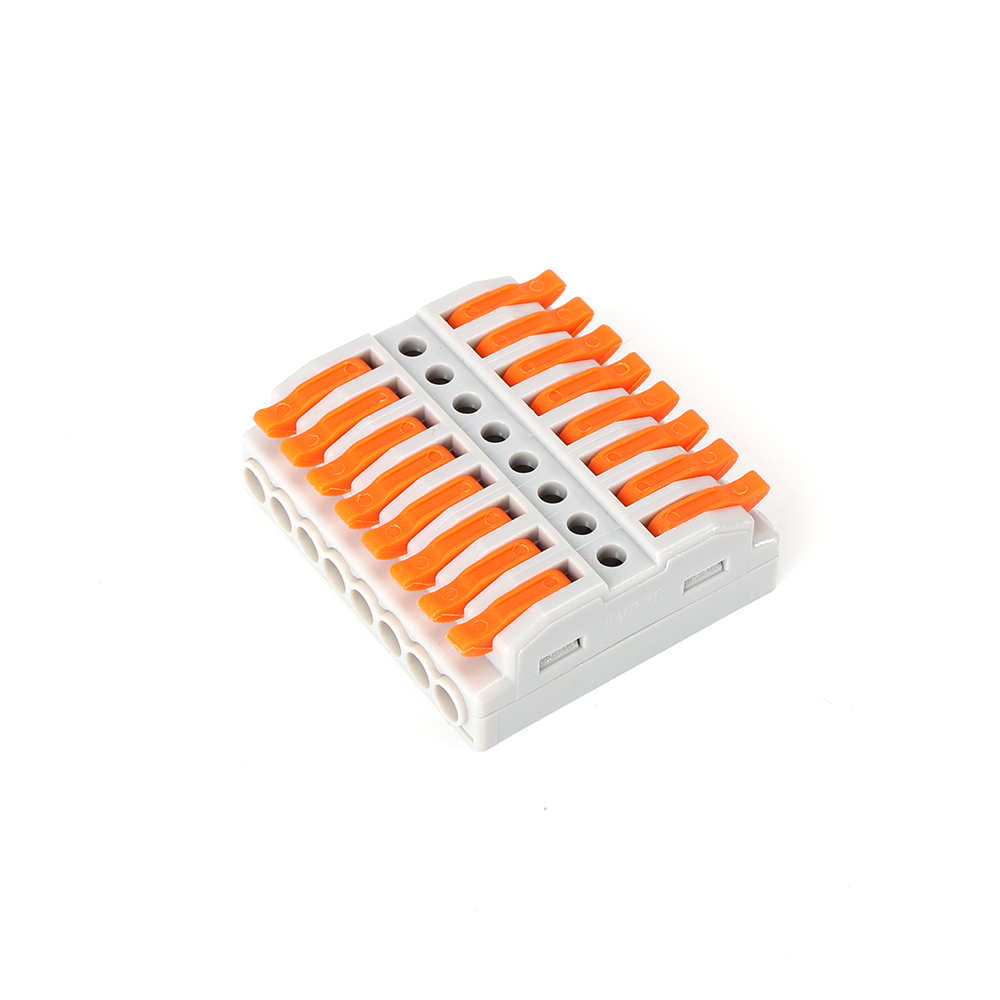

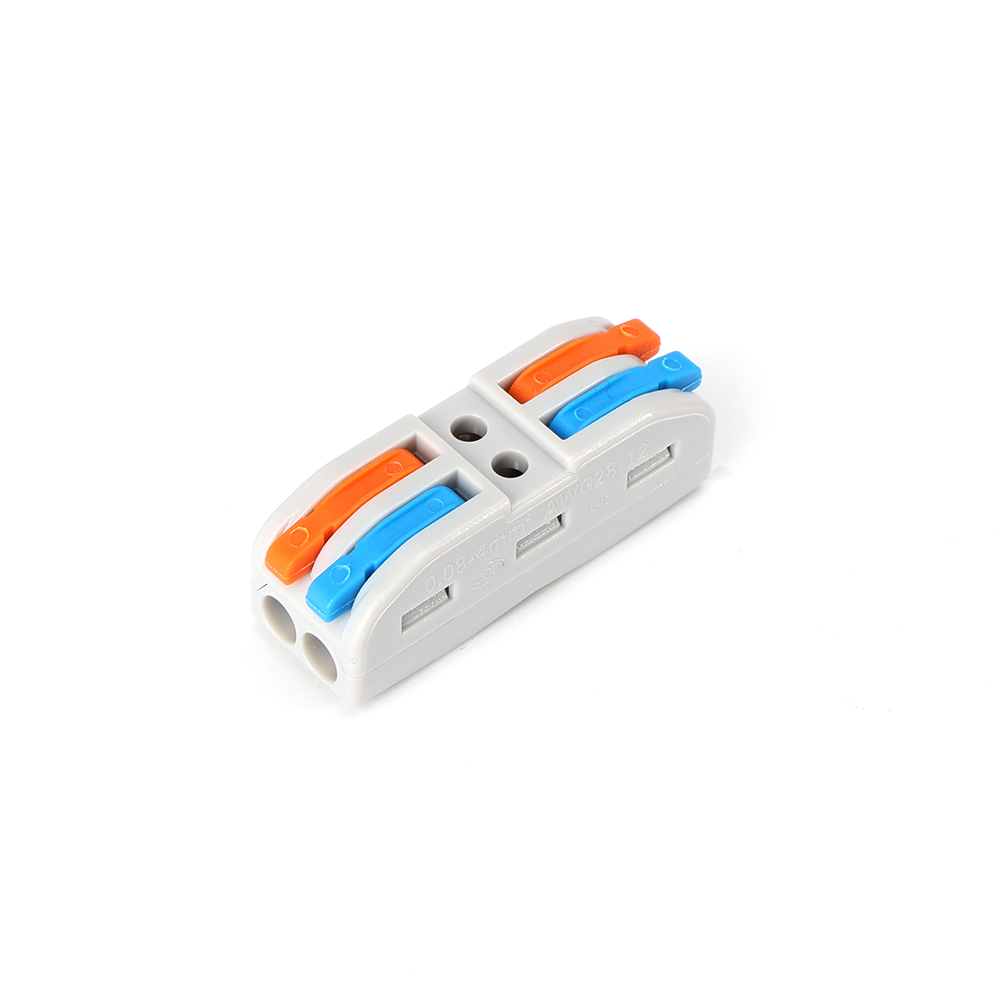

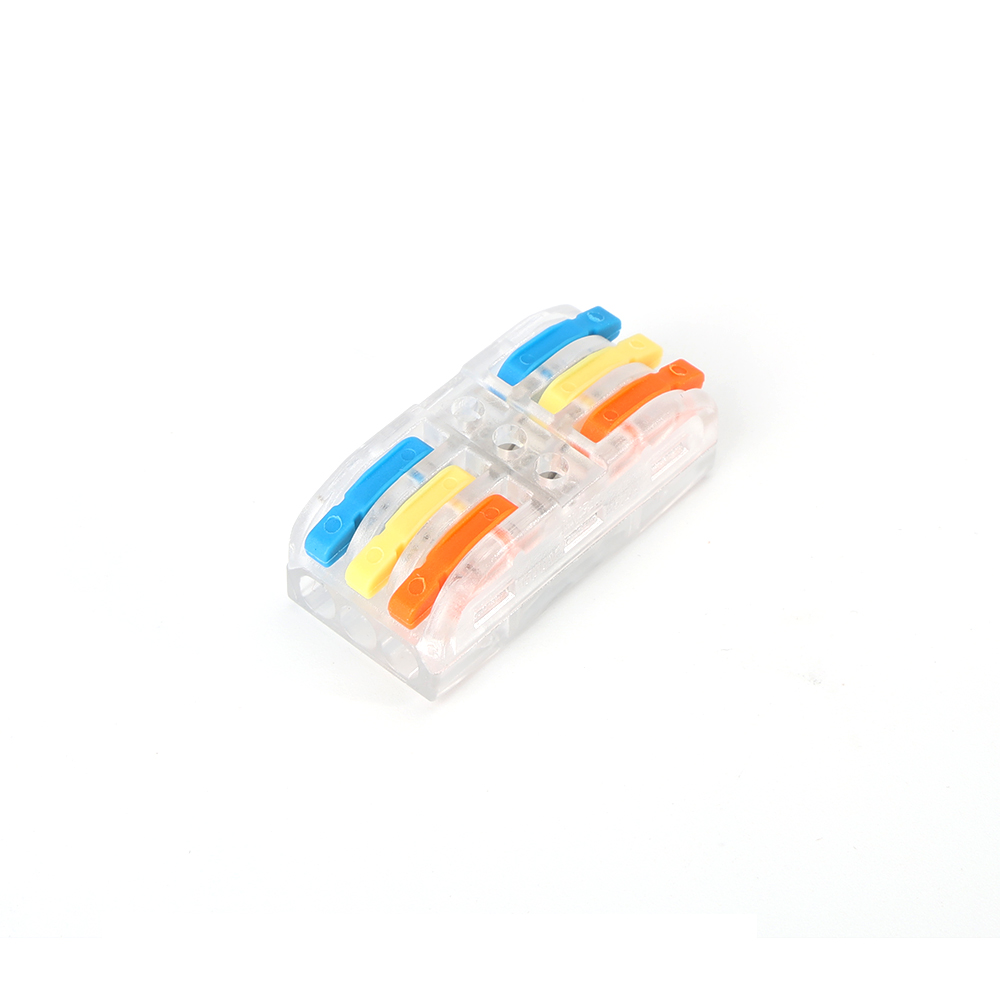

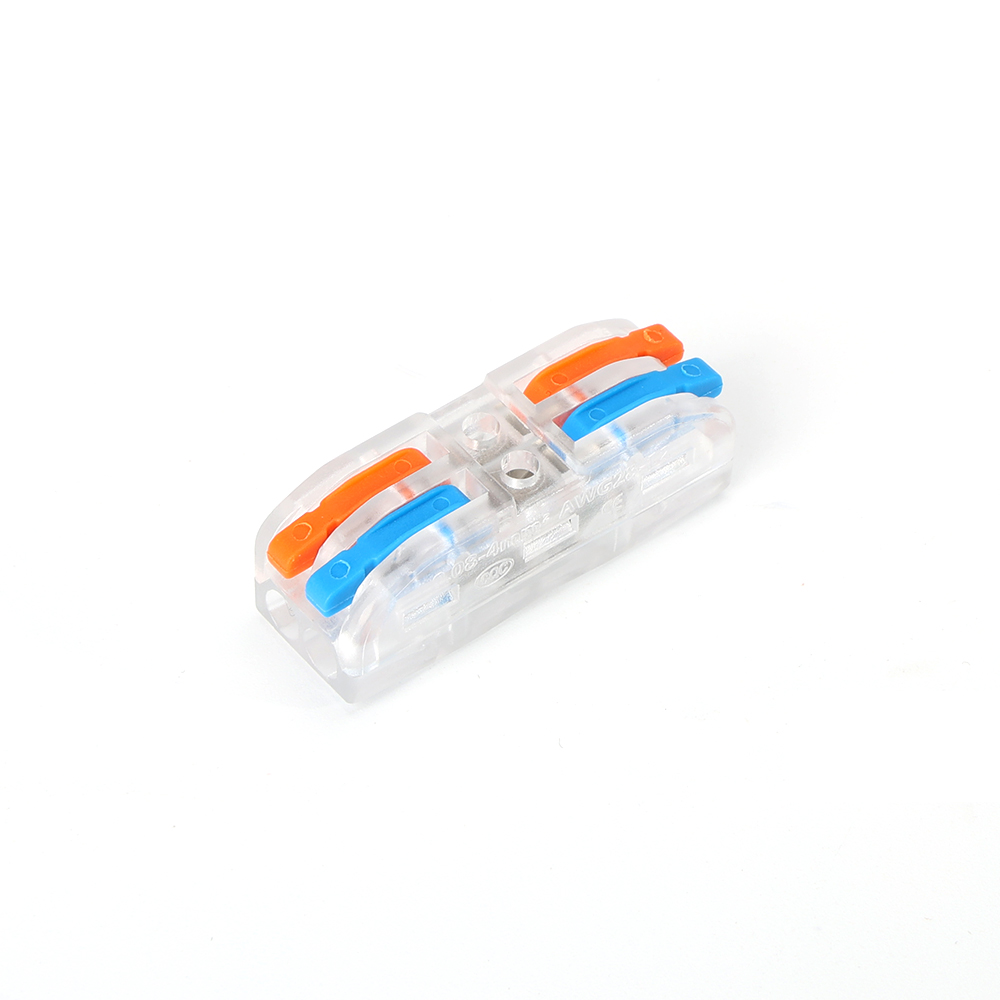

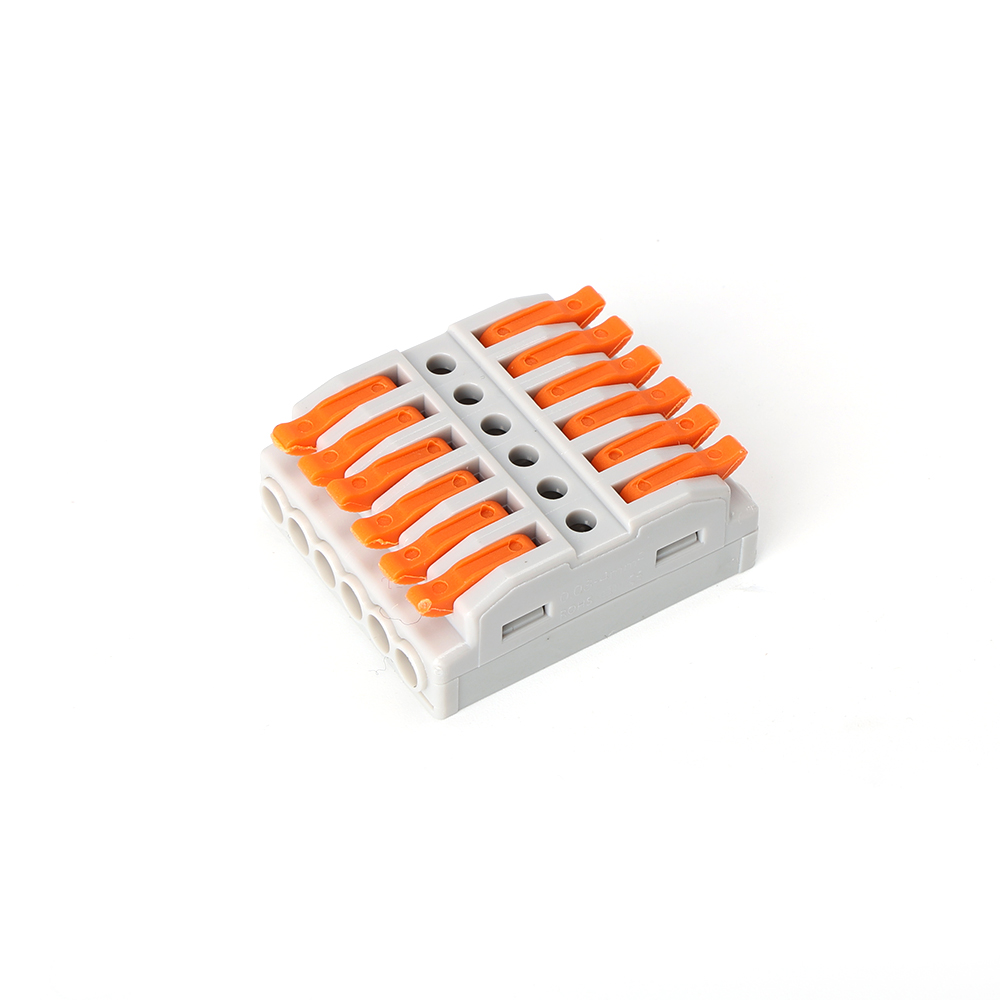

KV223B

Characteristics:

Quick & Secure Connections: The KV223A terminals feature a high-strength lever clamping system for tool-free installation, enabling immediate wire fastening with effortless lever operation.
High-Performance Conductivity: Equipped with high-purity purple copper conductive elements, they ensure maximum current flow with minimal resistance for optimal electrical efficiency.
Versatile & Safe Design: Flame-retardant construction reduces fire risks, while side mounting holes and a top-access test port provide stable installation and convenient voltage measurement, ideal for industrial and commercial applications.

Technical Parameters

Applicable Wire Gauge	0.2-4mm²/28-12AWG
Temperature range	-25℃~95℃
Rated Voltage	250V/600V
Rated Current	32A
Contact resistance	≤0.015Ω
Insulation resistance	≥1000mΩ
Material	Shell: Nylon PA66/Polycarbon PC(Nyion)UL94V-2(0)
	Contact piece: Brass Tin/plated
	Spring buckle: 301 stainless steel
Reach	15 tests

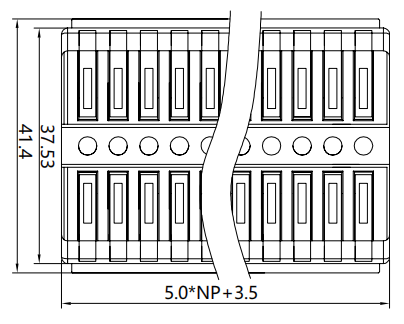

Allowance	±0.05mm
Interval	5.0mm
