Applicable Wires: 0.5-4 mm²
Operating temperature: -40℃~105℃
Rated voltage: 250 V/600V
Rated current: 32 A
Material of connectors shell: Nylon PA66/Polycarbon PC
Material of conductive parts: Brass Tin/plated
Characteristics:

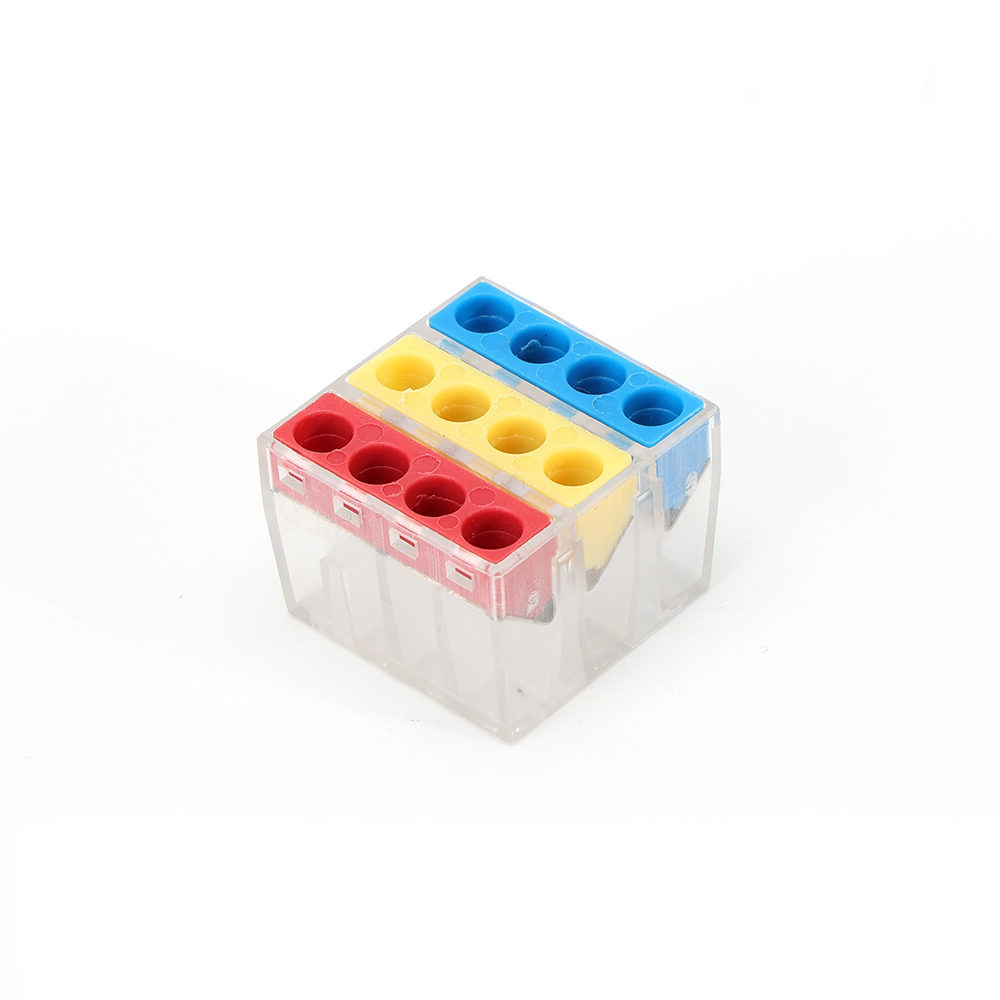

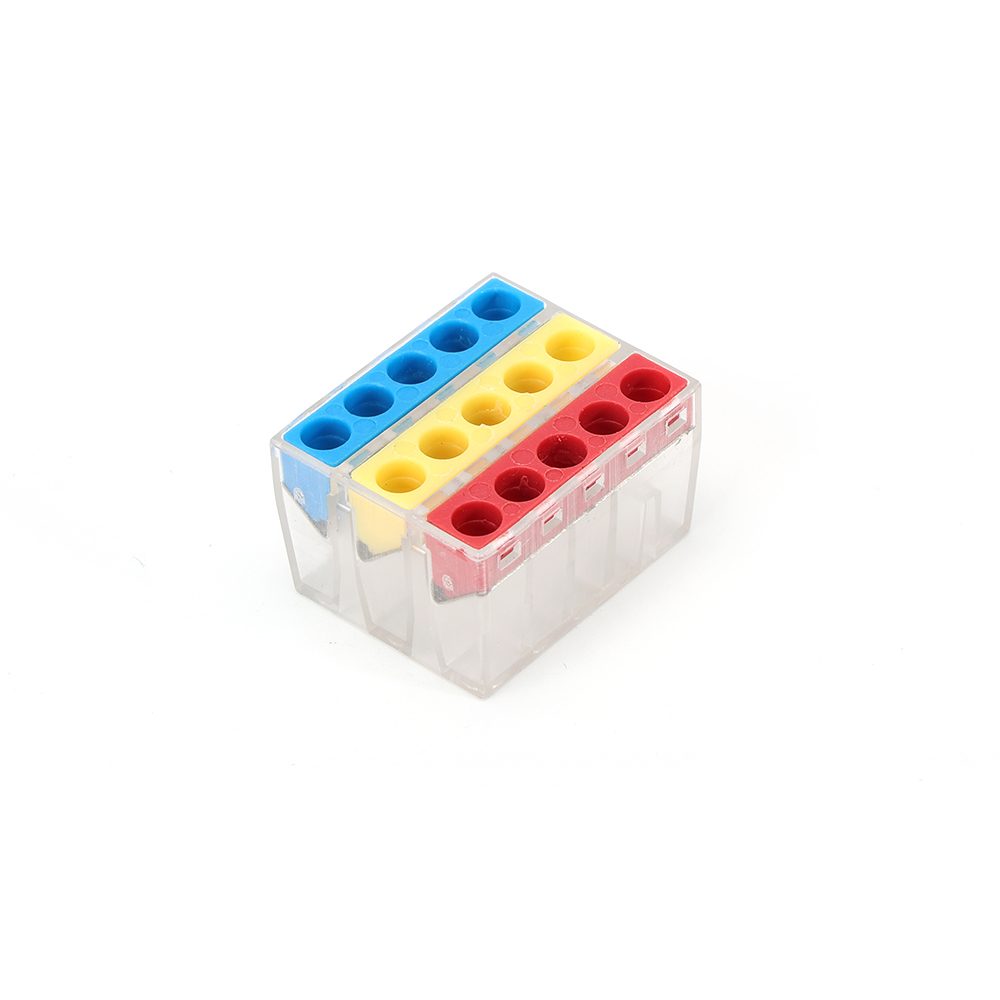

Premium Safety & Efficiency: The KV230-30 terminal blocks feature premium insulated construction for maximum safety, with a space-saving design that ensures neat installations and reduced maintenance costs.
Quick & Reusable Connections: Their innovative tool-less design enables faster wiring than traditional methods, allowing repeated use without compromising wire integrity for both temporary and permanent setups.
Versatile Applications: Ideal for household appliances, lighting systems, power distribution, and industrial equipment, these terminals cater to both casual users and professionals, delivering reliable, hassle-free connections.

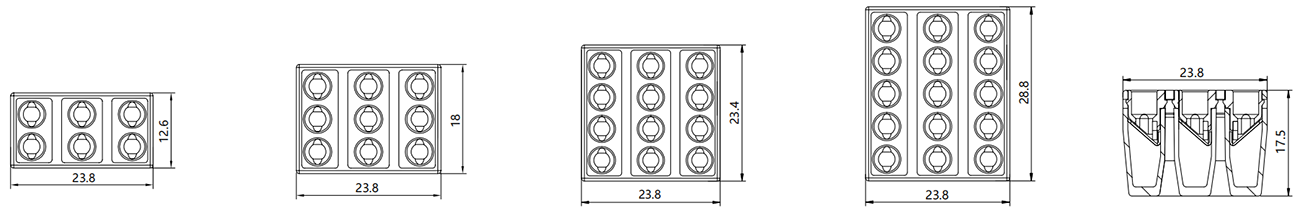

Technical Parameters
Applicable Wire Gauge | 0.5-4mm²/28-12AWG |
Temperature range | -40℃~+105℃ |
Rated Voltage | 250V/600V |
Rated Current | 32A |
Contact resistance | ≤0.015Ω |
Insulation resistance | ≥1000mΩ |
Material | Shell: Nylon PA66/Polycarbon PC(Nyion)UL94V-2(0) |
Contact piece: Brass Tin/plated | |
Spring buckle:Imported 301 stainless steel | |
Reach | 15 tests |
Allowance | ±0.05mm |
