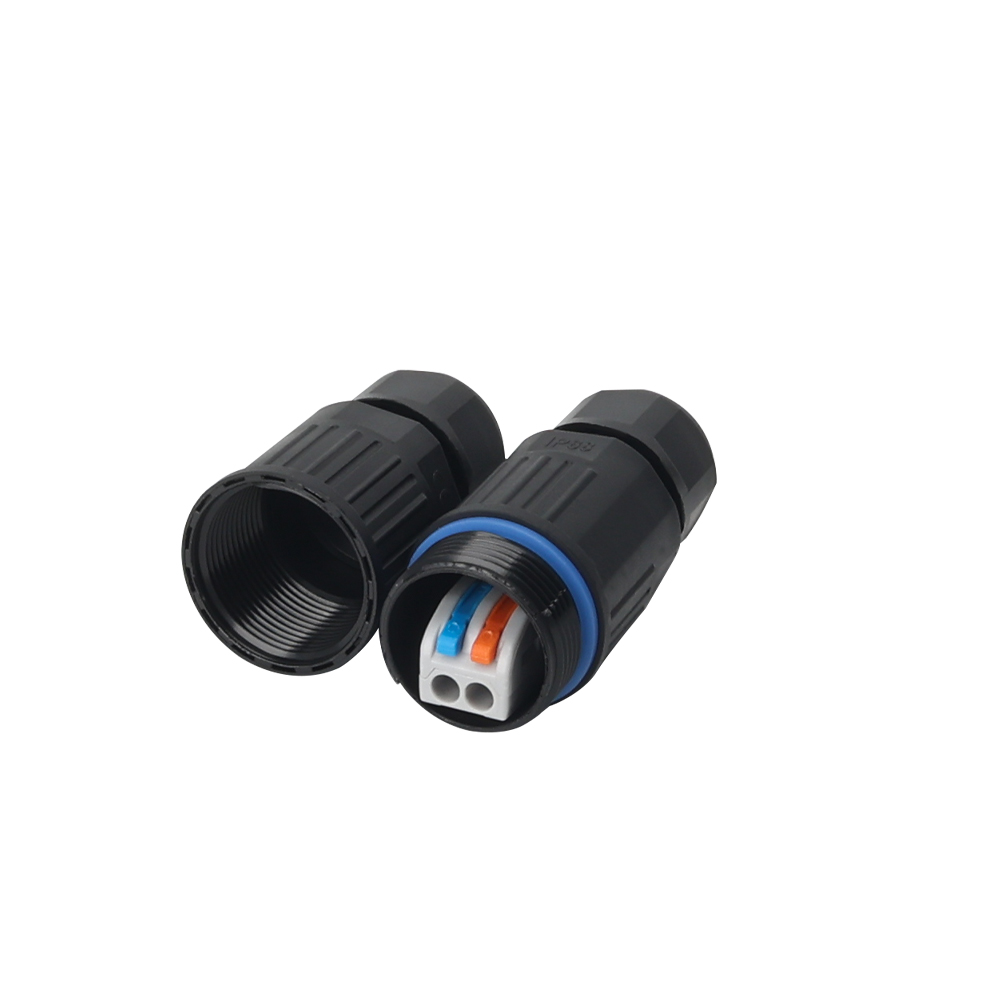

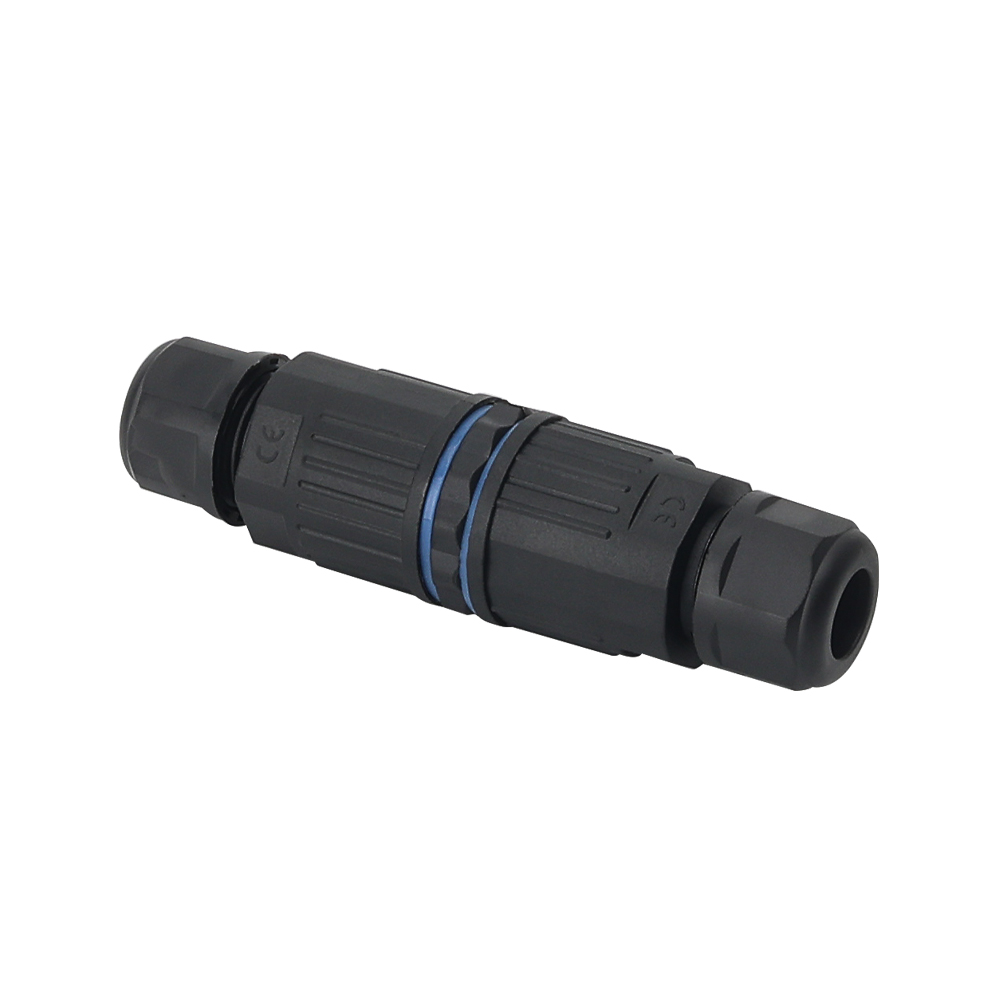

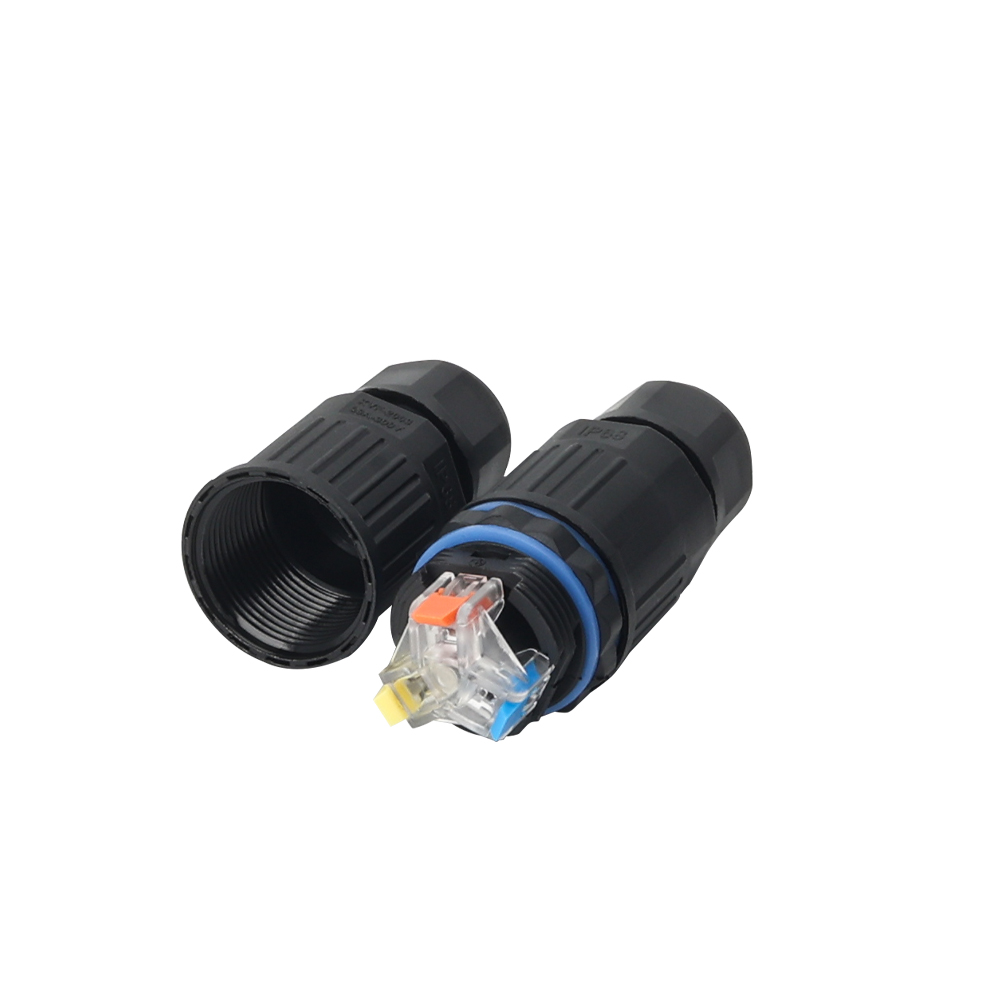

KVF2002-2003

Specification

Applicable wire gauge		0.5-1.5mm²
Temperature range		-25℃~60℃
Rated Voltage		250V
Rated Current		32A
Insulation resistance		≥1000MΩ
Waterproof class		IP68
Suitable guide		TH35-7.5 guide rail
Specification M20		Two in two out and three in three out connectors
Conform to		15 tests/15 tests
Materials	Shell	Nylon PA66/Polycarbon PC
	Liaison piece	Brass/Orichalcum
	Snap fastener	Imported 301 stainless steel

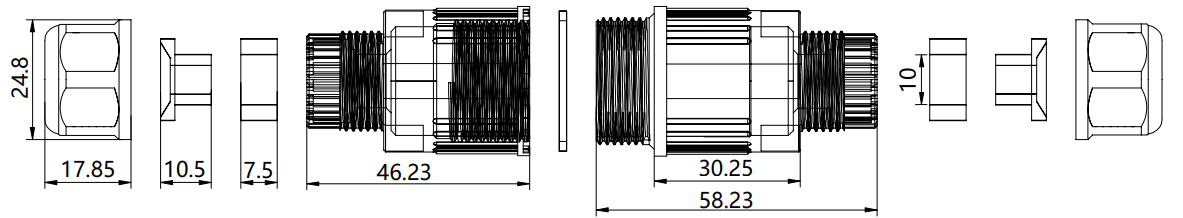

Tolerance of size<5±0.1mm
