Nylon Spiral Cable Gland Long Thread

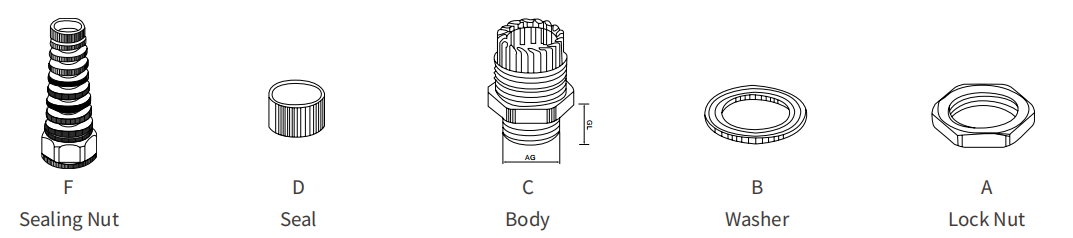

• Materials: Part A.C.F is made of UL approved nylon PA66, part B.D butadiene rubber (NBR) or EPDM

• Working Temperature: -40 ℃ to 100 ℃ in static state, instantaneous heat resistance up to 120 ℃ ; -20 ℃ to 80 ℃ in dynamic state,instantaneous heat resistance up to 100℃
• Product Features: Wide range for fastening cables, strong tensile strength, waterproof, dustproof, resistant to a cid and alkali,
alcohol, grease and general solvents
• Color: Light grey(RAL7035), black(RAL9005), other color can be customized according to request

Model	Cable Range(mm)	Thread O.D.AG(mm)	Thread Length GL(mm)	Spanner Size(mm)
PG7	3-6.5	12.5	15	18/17
PG7	2-5
PG9	4-8	15.2		22/19
PG9	2-6
PG11	5-10	18.6		24/22
PG11	4-8
PG13.5	6-12	20.4		27/24
PG13.5	5-9
PG16	10-14	22.5		30/27
PG16	8-12
PG21	13-18	28.3		36/33
PG21	10-16

Model	Cable Range(mm)	Thread O.D.AG(mm)	Thread Length GL(mm)	Spanner Size(mm)
M12x1.5	3-6.5	12	15	18/17
M12x1.5	2-5
M12x1.5	4-8			18/19
M16x1.5		16		22/19
M16x1.5	2-6
M16x1.5	5-10			22/22
M18x1.5		18		24/22
M18x1.5	4-8
M20x1.5	6-12	20		27/24
M20x1.5	5-9
M20x1.5	10-14			27/27
M22x1.5	10-14	22		30/27
M22x1.5	8-12
M25x1.5	13-18	25		33/33
M25x1.5	10-16
M27x1.5	13-18	27		36/33
M27x1.5	10-16
