Nylon Waterproof Cable Gland (Flange Type Cap and Locknut)

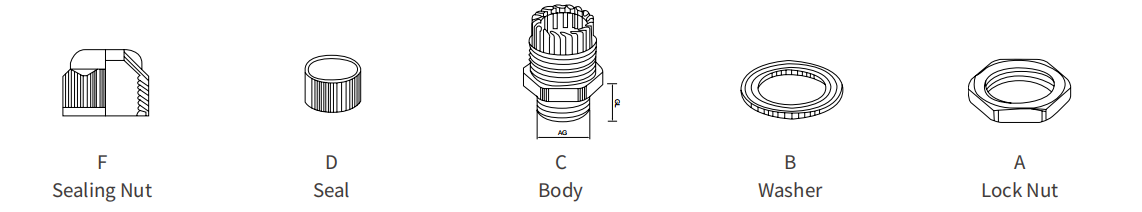

• Materials: Part A.C.F is made of UL approved nylon PA66, part B.D butadiene rubber (NBR) or EPDM

• Working Temperature: -40 ℃ to 100 ℃ in static state, instantaneous heat resistance up to 120 ℃ ; -20 ℃ to 80 ℃ in dynamic state,instantaneous heat resistance up to 100℃
• Product Features: Wide range for fastening cables, strong tensile strength, waterproof, dustproof, resistant to a cid and alkali,
alcohol, grease and general solvents
• Color: Light grey(RAL7035), black(RAL9005), other color can be customized according to request

Model	Cable Range(mm)	Thread O.D.AG(mm)	Thread Length GL(mm)	Spanner Size(mm)
PG 7S	3-6.5	12.5	8	17/15
PG7	4-8	12.5	8	17/19
PG 9	4-8	15.2	8	22/19
PG11	5-10	18.6	10	24/22
PG 13.5	6-12	20.4	10	27/24
PG 16	10-14	22.5	10.8	30/27
PG19	12-16	24	11	30/27
PG21	13-18	28.3	12	36/33
PG25	14-20	30	12	37/36
PG 29	18-25	37	12	46/42
PG 36	24-32	47	15	58/52
PG 42	32-38	54	15	64/62
PG 48	37-44	59.3	18	70/65

Model	Cable Range(mm)	Thread O.D.AG(mm)	Thread Length GL(mm)	Spanner Size(mm)
M10x1.5	2-3.5	10	8	13/13
M12x1.5S	3-6.5	12	8.5	17/15
M12x1.5	4-8	12	8.5	17/19
M16x1.5S	4-8	16	10	22/19
M16x1.5	5-10	16		22/22
M18x1.5S	5-10	18		24/22
M18x15	6-12	18		24/24
M20x1.5S	6-12	20		27/24
M20x15	10-14	20	11	27/27
M22x1.5	10-14	22		30/27
M24x15	12-16	24		30/27
M25x1.5S	12-16	25		33/27
M25x15	13-18	25	12	33/33
M32x1.5S	14-20	32		37/36
M32x15	18-25	32		37/42
M36x1.5	18-25	36		45/42
M40x15	23-32	40	15	50/52
M50x1.5	30-38	50	15	62/62
M63x1.5	35-45	63	18	75/68
