SV 1.25

Spade vinyl-insulted terminal

Cable size:0.5-1.5 mm²

Max current:19 A

Color:Red

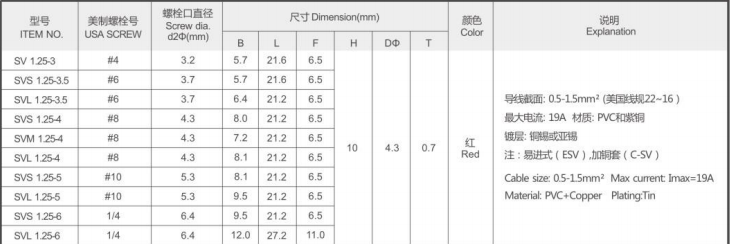

Technical Parameters

ITEM NO.		USA SCREW	Screw dia d2Φ(mm)	Dimension(mm)						Color	Explanation
ITEM NO.		USA SCREW	Screw dia d2Φ(mm)	B	L	F	H	DΦ	T	Color	Explanation
C-SV 1.25-3		#4	5.7	5.7	21.6	6.5	10.0	4.3	0.7	Red	Cable size:0.5-1.5mm² Max current Imax=19A Material:PVC+Copper Plating:Tin
C-SVS 1.25-3.5		#6	5.7	5.7	21.6	6.5
C-SVL1.25-3.5		#6	6.4	6.4	21.2	6.5
C-SVS 1.254		#8	8.0	8.0	21.2	6.5
C-SVM 1.25-4		#8	7.2	7.2	21.2	6.5
C-SVL 1.25-4		#8	8.1	8.1	21.2	6.5
C-SVS 1.25-5		#10	8.1	8.1	21.2	6.5
C-SVL 1.25-5		#10	9.5	9.5	21.2	6.5
C-SVS 1.25-6		1-4	9.5	9.5	21.2	6.5
C-SVL 1.25-6		1-4	12.0	12.0	27.2	11.0
ESV 1.25-3		#4	5.7	5.7	21.6	6.5	10.0	4.3	0.7	Red	Cable size:0.5-1.5mm² Max current Imax=19A Material:PVC+Copper Plating:Tin
ESVS 1.25-3.5		#6	5.7	5.7	21.6	6.5
ESVL 1.25-3.5		#6	6.4	6.4	21.2	6.5
ESVS 1.25-4		#8	8.0	8.0	21.2	6.5
ESVM 1.25-4		#8	7.2	7.2	21.2	6.5
ESVL 1.254		#8	8.1	8.1	21.2	6.5
ESVS 1.25-5		#10	8.1	8.1	21.2	6.5
ESVL 1.25-5		#10	9.5	9.5	21.2	6.5
ESVS 1.25-6		1-4	9.5	9.5	21.2	6.5
ESVL 1.25-6		1-4	12.0	12.0	27.2	11.0
NSV 1.25-3	NC-SV 1.25-3	#4	5.7	5.7	21.6	6.5	10.0	4.3	/	红 Red	Cable size:0.5-1.5mm²(AW.G22~16)Max current Imax=19A Material:Nylon &CopperThickness:0.7mm Plating:Tin
NSVS 1.25-3.5	NC-SVS 1.25-3.5	#6	5.7	5.7	21.6	6.5
NSVL 1.25-3.5	NC-SVL 1.25-3.5	#6	6.4	6.4	21.2	6.5
NSVS 1.254	NC-SVS 1.254	#8	8.0	8.0	21.2	6.5
NSVM 1.25-4	NC-SVM 1.254	#8	7.2	7.2	21.2	6.5
NSVL 1.25-4	NC-SVL 1.25-4	#8	8.1	8.1	21.2	6.5
NSVS 1.25-5	NC-SVS 1.25-5	#10	8.1	8.1	21.2	6.5
NSVL 1.25-5	NC-SVL 1.25-5	#10	9.5	9.5	21.2	6.5
NSVS 1.25-6	NC-SVS 1.25-6	1-4	9.5	9.5	21.2	6.5
NSVL 1.25-6	NC-SVL 1.25-6	1-4	12.0	12.0	27.2	11.0
