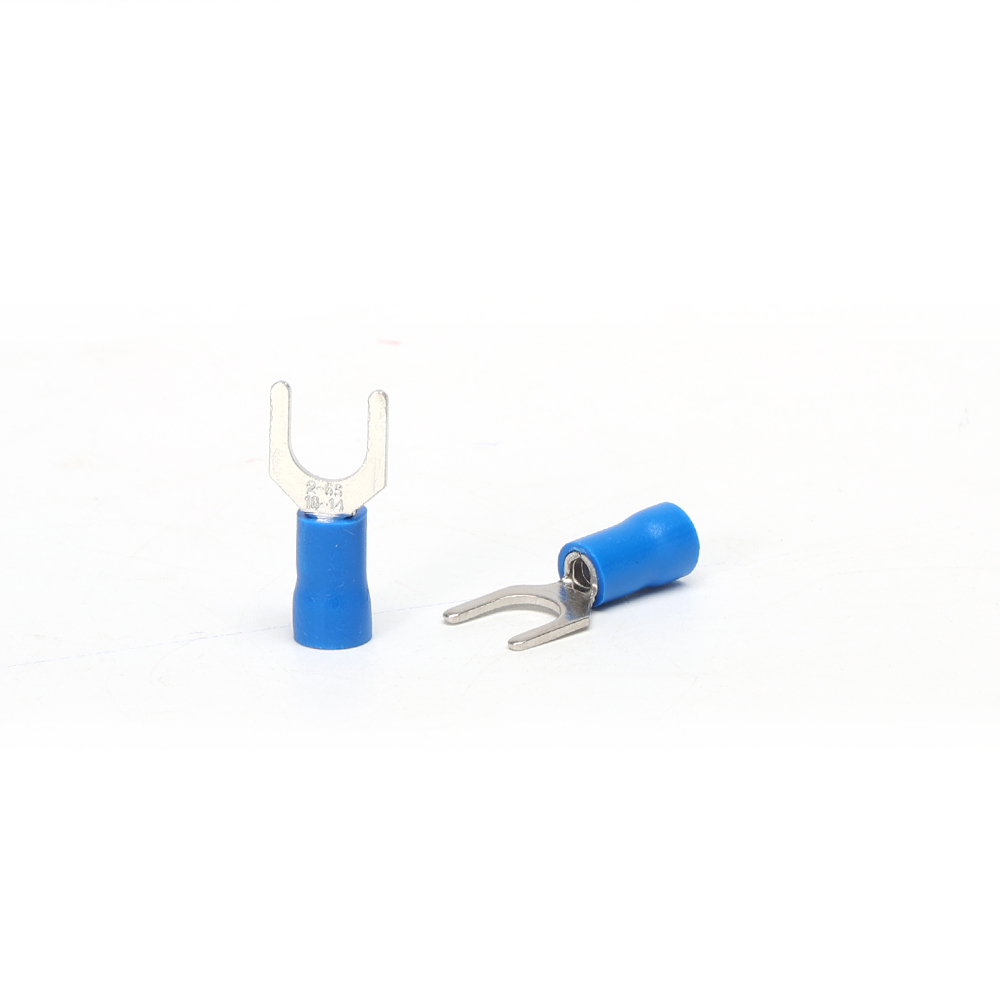

SV 2 Spade Terminal 27A 1.5-2.5mm²

Spade vinyl-insulted terminal

Cable size:1.5-2.5 mm²

Max current:27 A

Color:Blue

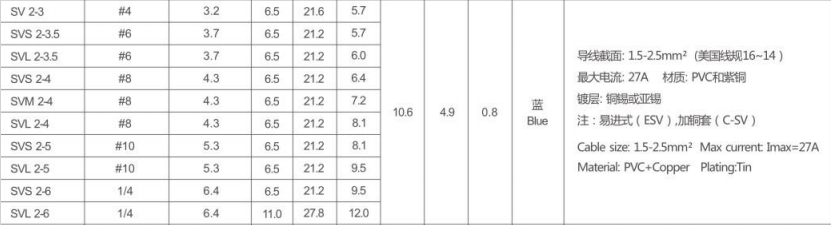

Technical Parameters

ITEM NO.		USA SCREW	Screw dia d2Φ(mm)	Dimension(mm)						Color	Explanation
ITEM NO.		USA SCREW	Screw dia d2Φ(mm)	B	L	F	H	DΦ	T	Color	Explanation
C-SV 2-3		#4	3.2	6.5	21.6	5.7	10.6	4.9	0.8	Blue	Cable size:1.5-2.5mm² Max current Imax=27A Material:PVC+Copper Plating:Tin
C-SVS 2-3.5		#6	3.7	6.5	21.2	5.7
C-SVL2-3.5		#6	3.7	6.5	21.2	6.0
C-SVS 2-4		#8	4.3	6.5	21.2	6.4
C-SVM 2-4		#8	4.3	6.5	21.2	7.2
C-SVL2-4		#8	4.3	6.5	21.2	8.1
CSVS 2-5		#10	5.3	6.5	21.2	8.1
C-SVL2-5		#10	5.3	6.5	21.2	9.5
C-SVS 2-6		1-4	6.4	6.5	21.2	9.5
C-SVL2-6		1-4	6.4	11.0	27.8	12.0
ESV 2-3		#4	3.2	6.5	21.6	5.7	10.6	4.9	0.8		Cable size:1.5-2.5mm² Max current Imax=27A Material:PVC+Copper Plating:Tin
ESVS 2-3.5		#6	3.7	6.5	21.2	5.7
ESVL2-3.5		#6	3.7	6.5	21.2	6.0
ESVS 2-4		#8	4.3	6.5	21.2	6.4
ESVM 2-4		#8	4.3	6.5	21.2	7.2
ESVL2-4		#8	4.3	6.5	21.2	8.1
ESVS 2-5		#10	5.3	6.5	21.2	8.1
ESVL2-5		#10	5.3	6.5	21.2	9.5
ESVS 2-6		1-4	6.4	6.5	21.2	9.5
ESVL2-6		1-4	6.4	11.0	27.8	12.0
NSV 2-3	NC-SV 2-3	#4	3.2	6.5	21.6	5.7	10.6	4.9	/		Cable size:1.5-2.5mm²(AW.G16-14)Max current Imax=27A Material:Nylon &Copper Thickness:0.8mm Plating:Tin
NSVS 2-3.5	NC-SVS 2-3.5	#6	3.7	6.5	21.2	5.7
NSVL2-3.5	NC-SVL2-3.5	#6	3.7	6.5	21.2	6.0
NSVS 2-4	NC-SVS 2-4	#8	4.3	6.5	21.2	6.4
NSVM 2-4	NC-SVM 2-4	#8	4.3	6.5	21.2	7.2
NSVL2-4	NC-SVL2-4	#8	4.3	6.5	21.2	8.1
NSVS 2-5	NC-SVS 2-5	#10	5.3	6.5	21.2	8.1
NSVL2-5	NC-SVL2-5	#10	5.3	6.5	21.2	9.5
NSVS 2-6	NC-SVS 2-6	1-4	6.4	6.5	21.2	9.5
NSVL2-6	NC-SVL2-6	1-4	6.4	11.0	27.8	12.0

SV 2
