SV 5.5 Spade Vinyl-Insulated Terminal

Spade vinyl-insulted terminal

Cable size:4-6 mm²

Max current:48 A

Color:Yellow

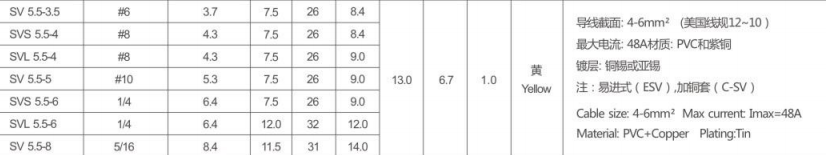

Technical Parameters

ITEM NO.		USA SCREW	Screw dia d2Φ(mm)	Dimension(mm)						Color	Explanation
ITEM NO.		USA SCREW	Screw dia d2Φ(mm)	B	L	F	H	DΦ	T	Color	Explanation
CSV 5.5-3.5		#6	3.7	7.5	26	8.4	13.0	6.7	1.0	Yellow	Cable size:4-6mm²Max current Imax=48A Material:PVC+Copper Plating:Tin
C-SVS 5.5-4		#8	4.3	7.5	26	8.4
C-SVL 5.5-4		#8	4.3	7.5	26	9.0
C-SV 5.5-5		#10	5.3	7.5	26	9.0
C-SVS 5.5-6		1-4	6.4	7.5	26	9.0
C-SVL 5.5-6		1-4	6.4	12.0	32	12.0
C-SV 5.5-8		5-16	8.4	11.5	31	14.0
ESV 5.5-3.5		#6	3.7	7.5	26	8.4	13.0	6.7	1.0		Cable size:4-6mm²Max current Imax=48A Material:PVC+Copper Plating:Tin
ESVS 5.5-4		#8	4.3	7.5	26	8.4
ESVL 5.5-4		#8	4.3	7.5	26	9.0
ESV 5.5-5		#10	5.3	7.5	26	9.0
ESVS 5.5-6		1-4	6.4	7.5	26	9.0
ESVL5.5-6		1-4	6.4	12.0	32	12.0
ESV 5.5-8		5-16	8.4	11.5	31	14.0
NSV 5.5-3.5	NC-SV 5.5-3.5	#6	3.7	7.5	26	8.4	13.0	6.7	/		Cable size:4-6mm²(AW.G12~10) Max current Imax=48A Material:Nylon &Copper Thickness:1.0mm Plating:Tin
NSVS 5.5-4	NC-SVS 5.54	#8	4.3	7.5	26	8.4
NSVL 5.54	NC-SVL 5.54	#8	4.3	7.5	26	9.0
NSV 5.5-5	NC-SV 5.5-5	#10	5.3	7.5	26	9.0
NSVS 5.5-6	NC-SVS 5.5-6	1-4	6.4	7.5	26	9.0
NSVL 5.5-6	NC-SVL 5.5-6	1-4	6.4	12.0	32	12.0
NSV 5.5-8	NC-SV 5.5-8	5-16	8.4	11.5	31	14.0

SV 5.5
