How To Choose The Right Size Non Insulated Ring Terminal

Jun 24, 2026

Selecting the correct non insulated ring terminal is critical for ensuring electrical safety, current-carrying capacity, and long-term connection reliability. An undersized terminal can cause overheating, voltage drops, and premature failure, while an oversized terminal may lead to poor crimping performance and unstable electrical contact.

Whether you are working on industrial control panels, power distribution systems, automotive wiring, battery connections, or heavy-duty equipment, understanding how to choose the proper Ring Terminal Non Insulated size will help improve system performance and reduce maintenance costs. This guide explains the key factors to consider, including cable size, current rating, material selection, application requirements, and installation practices.

Table of Contents

How To Choose The Right Size Non Insulated Ring Terminal

Choosing the proper Non Insulated Ring Connector involves more than simply matching a wire to a terminal. Several technical factors affect connection performance and safety.

Cable Cross-Section And Current Rating Relationship

The cross-sectional area of a conductor directly affects the amount of current it can safely carry.

As conductor size increases, electrical resistance decreases, allowing more current to flow without excessive heat generation. Therefore, terminal selection must always match the cable’s cross-sectional area.

General Rule

Cable Size (mm²)	Typical Current Range
6-10 mm²	Up to 62A
10-16 mm²	Up to 88A
16-25 mm²	Up to 115A
50-70 mm²	Up to 215A
70-95 mm²	Up to 235A
95-120 mm²	Up to 255A
120-150 mm²	Up to 300A
150-185 mm²	Up to 395A

When selecting a Copper Ring Terminal Non Insulated, always verify both cable size and current requirement.

Key Considerations

Match the terminal barrel to conductor size
Verify maximum current capacity
Consider ambient operating temperature
Account for continuous or intermittent loads
Include safety margins for future expansion

Matching Size With Conductor Size

The most important selection criterion is conductor compatibility.

A properly sized Non Insulated Crimp Terminal should allow the stripped conductor to fully enter the barrel without excessive looseness or force.

Risks Of Incorrect Sizing

Terminal Too Small

Wire cannot fully enter barrel
Reduced contact area
Difficult crimping process
Increased resistance
Potential overheating

Terminal Too Large

Weak mechanical retention
Poor conductivity
Higher vibration failure risk
Reduced pull-out strength

Always follow manufacturer specifications rather than estimating based on visual inspection.

Selecting Based On Current Load (Ampacity Requirements)

Current-carrying capacity is equally important as conductor size.

A terminal operating beyond its rated current may experience:

Excessive temperature rise
Oxidation of contact surfaces
Reduced conductivity
Insulation damage nearby
Connection failure

For example:

RNB 8 supports up to 62A
RNB 22 supports up to 115A
RNB 100 supports up to 300A
RNB 150 supports up to 395A

When designing electrical systems, engineers typically maintain a safety margin between operating current and terminal rating.

Best Practice

Select a Bare Ring Terminal with at least 20% additional capacity above expected continuous load whenever possible.

Choosing Material For High Conductivity And Durability

Material quality significantly affects the performance of an Electrical Ring Terminal Non Insulated.

Copper remains the preferred material because of its:

Excellent electrical conductivity
High thermal conductivity
Superior mechanical strength
Good corrosion resistance
Long service life

Why Copper Is Preferred

Compared with aluminum or lower-grade alloys, copper provides lower contact resistance and better long-term stability.

Benefits include:

Reduced energy losses
Lower operating temperatures
Improved crimp reliability
Better vibration resistance
Enhanced durability in industrial environments

For demanding applications, a Copper Ring Terminal Non Insulated offers the most dependable solution.

Considering Application Scenarios

Different applications place different demands on ring terminals.

Power Distribution Systems

Require:

High current capacity
Stable conductivity
Long-term reliability

Industrial Equipment

Require:

Vibration resistance
Mechanical durability
Consistent electrical performance

Battery Connections

Require:

Low resistance
High current transfer
Corrosion resistance

Automotive Applications

Require:

Compact installation
Resistance to vibration
Reliable crimp retention

Renewable Energy Systems

Require:

Long service life
Environmental durability
High conductivity

Application requirements should always influence the selection of an Uninsulated Ring Terminal.

Using Product Size Chart

The RNB Series provides a wide range of terminal sizes suitable for low, medium, and high-current applications.

Quick Selection Guide

Model	Cable Size (mm²)	Max Current
RNB 8	6-10	62A
RNB 14	10-16	88A
RNB 22	16-25	115A
RNB 60	50-70	215A
RNB 70	70-95	235A
RNB 80	95-120	255A
RNB 100	120-150	300A
RNB 150	150-185	395A

This chart provides a practical starting point when selecting Non Insulated Ring Terminals for various electrical systems.

Non Insulated Ring Terminal Size Reference Table

Cable Size Vs Current Capacity Comparison

The following table summarizes the relationship between conductor size and current-carrying capability.

Model	Cable Range	Current Rating	Typical Use
RNB 8	6-10 mm²	62A	Automotive, lighting
RNB 14	10-16 mm²	88A	Control panels
RNB 22	16-25 mm²	115A	Industrial machinery
RNB 60	50-70 mm²	215A	Distribution systems
RNB 70	70-95 mm²	235A	Power equipment
RNB 80	95-120 mm²	255A	Heavy-duty machinery
RNB 100	120-150 mm²	300A	Main power connections
RNB 150	150-185 mm²	395A	High-current industrial applications

Recommended Applications For Each Model

RNB 8 (6–10 Mm², 62A)

Suitable for:

Automotive wiring
Marine electrical systems
Lighting circuits
Small power distribution

RNB 14 (10–16 Mm², 88A)

Suitable for:

Control cabinets
Industrial equipment
Motor circuits
Commercial installations

RNB 22 (16–25 Mm², 115A)

Suitable for:

Medium-power equipment
Generator connections
Electrical control systems

RNB 60 (50–70 Mm², 215A)

Suitable for:

Distribution panels
Battery banks
Industrial power systems

RNB 70 (70–95 Mm², 235A)

Suitable for:

Large motors
Industrial machinery
Utility equipment

RNB 80 (95–120 Mm², 255A)

Suitable for:

Heavy-duty power distribution
Renewable energy systems
High-current equipment

RNB 100 (120–150 Mm², 300A)

Suitable for:

Transformer connections
Main feeders
Industrial switchgear

RNB 150 (150–185 Mm², 395A)

Suitable for:

Utility substations
High-current busbar systems
Large industrial installations

Common Mistakes When Choosing Non Insulated Ring Terminals

Selecting the wrong terminal can compromise system safety and reliability.

Based Only On Wire Diameter Without Considering Current

Wire size alone does not determine terminal suitability. Current requirements must also be evaluated.

Ignoring Temperature Rise And Load Conditions

Continuous operation at high temperatures can reduce terminal lifespan and performance.

Using Undersized Bare Ring Terminal For High-Power Systems

An undersized Bare Ring Terminal may overheat and fail under heavy electrical loads.

Mixing Metric Cable Size With AWG Confusion

Always convert cable sizes accurately when working between metric and AWG standards.

Poor Crimping Leading To Resistance And Heat Build-Up

Even the best Non Insulated Ring Terminal can fail if improperly crimped.

Common consequences include:

Increased resistance
Voltage drops
Excessive heat
Reduced lifespan
Electrical failure

Installation Tips

Proper installation ensures the maximum performance of your Non Insulated Crimp Terminal.

Proper Crimping Tool Selection

Always use professional crimping tools designed for the specific cable and terminal size.

Benefits include:

Uniform compression
Better conductivity
Improved mechanical strength
Longer service life

Correct Strip Length And Insertion Depth

The conductor should fully occupy the barrel without exposed strands outside the crimp area.

Ensuring Tight Mechanical And Electrical Connection

A properly crimped connection should provide both strong retention and low-resistance conductivity.

Recommended checks:

Visual inspection
Crimp profile verification
Pull-out testing
Resistance measurement

Inspection After Crimping And Pull Test Guidelines

After installation:

Check for cracks or deformation
Confirm complete wire insertion
Verify terminal alignment
Perform pull tests
Inspect for loose strands

Regular inspection helps maintain long-term reliability in demanding electrical environments.

FAQ

How Does Crimp Quality Affect Performance?

Crimp quality directly impacts both the electrical and mechanical performance of a Non Insulated Ring Terminal. A properly executed crimp creates a gas-tight connection between the conductor and the terminal barrel, minimizing contact resistance and preventing oxidation.

Poor crimping can lead to:

Increased electrical resistance
Excessive heat generation
Voltage drops
Connection loosening under vibration
Premature terminal failure

Using the correct crimping tool and die size is essential for achieving a reliable connection.

What Is A Non Insulated Ring Terminal Used For?

A Non Insulated Ring Terminal is a crimp connector designed to create a secure electrical connection between a wire and a stud, screw, or bolt connection point.

Common applications include:

Electrical control panels
Power distribution systems
Automotive wiring
Battery connections
Industrial machinery
Renewable energy systems

Because the ring design fully surrounds the mounting stud, it provides excellent resistance to accidental disconnection caused by vibration or movement.

Bare Ring Terminal Vs Insulated Type Ring Terminal

Both terminal types serve similar functions, but they are used in different environments.

Feature	Bare Ring Terminal	Insulated Ring Terminal
Insulation Sleeve	No	Yes
Operating Temperature	Higher	Moderate
Conductivity	Excellent	Good
Cost	Lower	Higher
Crimp Inspection	Easy	Limited
Industrial Applications	Preferred	Common

A Bare Ring Terminal is often preferred in industrial and high-current applications because it provides better heat dissipation and allows direct visual inspection of the crimped connection.

What Material Is Best For High Current Applications?

Copper is widely recognized as the best material for high-current terminal applications.

A Copper Ring Terminal Non Insulated offers:

Excellent electrical conductivity
Low contact resistance
High mechanical strength
Superior thermal performance
Long service life

For demanding applications such as switchgear, battery systems, transformers, and industrial equipment, copper terminals provide the most reliable performance.

Which Copper Ring Terminal Non Insulated Size Do I Need?

The correct size depends on two factors:

Cable cross-sectional area (mm²)
Maximum operating current

For example:

Cable Size	Recommended Model
6-10 mm²	RNB 8
10-16 mm²	RNB 14
16-25 mm²	RNB 22
50-70 mm²	RNB 60
70-95 mm²	RNB 70
95-120 mm²	RNB 80
120-150 mm²	RNB 100
150-185 mm²	RNB 150

Always verify both the cable size and current requirement before selecting a terminal.

Can Non Insulated Ring Connectors Be Used In Automotive Systems?

Yes. A Non Insulated Ring Connector is commonly used in automotive electrical systems because it provides a secure and vibration-resistant connection.

Typical automotive applications include:

Battery terminals
Grounding connections
Starter motors
Alternator wiring
Fuse and relay systems

For automotive environments, proper crimping and corrosion protection are especially important to ensure long-term reliability.

Can I Use Smaller Electrical Ring Terminal Non Insulated For Lower Current?

No. Terminal size should always match the conductor size regardless of the actual operating current.

Using a smaller Electrical Ring Terminal Non Insulated may result in:

Improper wire insertion
Weak crimp strength
Increased resistance
Potential overheating
Reduced safety

Always select the terminal according to the manufacturer’s cable-size specification.

Are RNB Series Terminals Suitable For Industrial High-Current Applications?

Yes. The RNB Series is specifically designed for demanding electrical applications and offers a wide range of current capacities.

Examples include:

Model	Max Current
RNB 60	215A
RNB 70	235A
RNB 80	255A
RNB 100	300A
RNB 150	395A

These models are commonly used in:

Industrial control systems
Power distribution equipment
Renewable energy installations
Battery storage systems
Utility infrastructure

Their copper construction provides excellent conductivity and long-term durability under high electrical loads.

Conclusion

Choosing the right Non Insulated Ring Terminal is essential for achieving safe, efficient, and long-lasting electrical connections. The selection process should always begin with matching the terminal to the conductor size and current-carrying requirements. Factors such as material quality, operating environment, installation method, and application type must also be considered to ensure optimal performance.

The RNB Series offers a comprehensive range of Non Insulated Ring Terminals from 6 mm² to 185 mm², supporting currents from 62A up to 395A. Whether you need a compact Uninsulated Ring Terminal for automotive wiring or a heavy-duty Copper Ring Terminal Non Insulated for industrial power distribution, choosing the correct size will improve reliability, reduce maintenance costs, and enhance overall system safety.

For critical electrical applications, always use high-quality copper terminals and professional crimping tools to achieve the most secure and efficient connection possible.

Prev article：Push In Terminal Connectors VS Spring Loaded Terminal Blocks: Which Is Better For Modern Wiring?

Next article：How Butt Splice Terminals Ensure Reliable Wire Connections (Complete Guide)

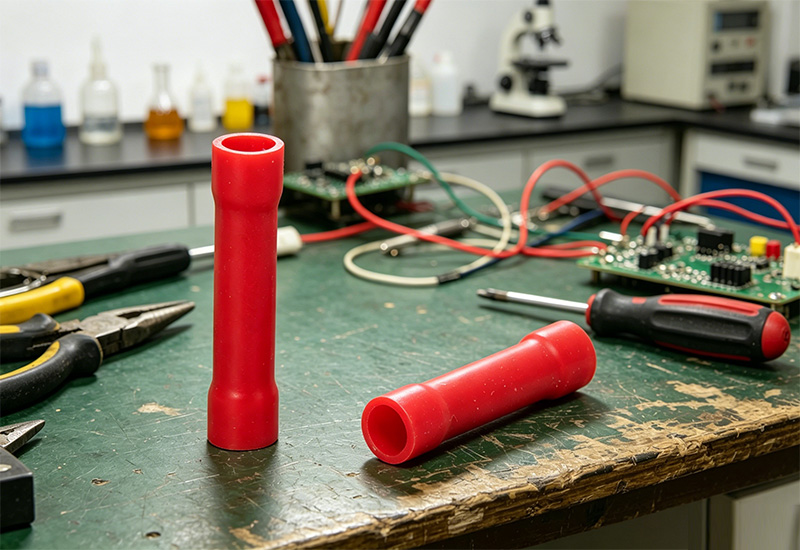

How Butt Splice Terminals Ensure Reliable Wire Connections

When you evaluate wiring components as a buyer, reliability is rarely about one single feature—it’s a combination of geometry, material behavior, and installation consistency. A Butt Splice Terminal is engineered so that every step of the connection process reduces failure risk, even in demanding environments like automotive systems or industrial control panels.

Wire-To-Wire Connection Alignment Mechanism

The first factor that defines reliability is how accurately two conductors align inside the terminal barrel. A Butt Splice Connector is designed with a symmetrical cylindrical structure that guides both wire ends into a perfectly centered position. Once inserted, the internal barrel creates a controlled compression zone that ensures both conductors meet with uniform contact pressure. This eliminates uneven resistance points, which is something you often see in twisted or poorly soldered joints. In practice, this is why technicians prefer crimp-based splicing in field maintenance—you get repeatability, not guesswork. ● Perfect axial alignment of conductors ● Stable insertion depth for both wire ends ● Even pressure distribution across contact area ● Reduced risk of partial conductivity failure ● Consistent performance across repeated installations

Mechanical Strength & Vibration Resistance

In industrial environments, electrical failure is often mechanical before it is electrical. Vibration, tension, and cable movement gradually degrade poor joints. A properly installed Crimp Butt Connector solves this by creating a cold-weld-like structure between wire strands and the metal barrel. Once crimped, the connector behaves almost like a single solid conductor. That’s a big reason it’s widely used in automotive harnesses and machinery systems where movement is constant. It’s not perfect in theory—but in real-world field conditions, it performs surprisingly well. ● High pull-out resistance after crimping ● Stable performance under continuous vibration ● Strain relief effect on conductor joints ● Reduced micro-movement at contact interface ● Long lifecycle in dynamic wiring systems

Material Selection For Electrical Stability

Now, here’s where many low-cost alternatives fail: material quality. A professional Electrical Terminal Manufacturer like Westlec typically uses tin-plated copper or high-conductivity copper alloys, which directly influence current stability and heat behavior. Material selection determines whether the joint stays stable after thousands of thermal cycles—or starts degrading slowly over time. Copper provides conductivity, tin plating reduces oxidation, and together they create a balance between performance and durability. It’s not flashy engineering, but it’s what keeps systems running. ● Tin-plated copper improves corrosion resistance ● High conductivity reduces voltage drop ● Stable thermal expansion behavior under load ● Longer operational lifespan in humid environments ● Reduced maintenance frequency in field applications

Types Of Butt Splice Terminals

Different environments require different insulation strategies. You don’t really choose based on “preference”—you choose based on exposure conditions, voltage levels, and maintenance expectations.

Vinyl Insulated Butt Splice Terminals

Vinyl types are the entry-level solution, typically used in controlled environments. They’re cost-effective and easy to install, which makes them common in general wiring systems where environmental stress is minimal. They’re simple—but sometimes simple is exactly what procurement needs.

Nylon Insulated Butt Splice Terminals

Nylon insulation improves mechanical toughness and heat resistance. In industrial panels or automotive systems, this becomes the more balanced option between cost and durability. It feels like the “default professional choice” in many projects.

Heat Shrink Butt Splice Terminals

This is where sealing becomes critical. Heat shrink versions provide adhesive-lined insulation that protects against moisture, dust, and corrosion. You’ll often see these used in marine or outdoor installations where failure is expensive—not just inconvenient.

Color Coding System For Wire Gauge Matching

Wire mismatch is one of the most common sourcing mistakes. Color coding exists to reduce that risk.

Color	Wire Range (AWG)	Typical Use
Red	22–16 AWG	Low current circuits
Blue	16–14 AWG	General industrial wiring
Yellow	12–10 AWG	Higher load applications

It looks basic, but it prevents costly installation errors in bulk projects.

Step-By-Step Guide: How To Crimp Butt Splice Terminals

When you’re evaluating installation reliability, the process matters as much as the product. ● Strip wire insulation to correct length ● Match terminal size with wire gauge ● Insert wire ends fully into barrel ● Apply calibrated crimping tool ● Perform pull-test for mechanical validation ● Inspect insulation coverage and seal integrity A small mistake in crimp force can change everything—and that’s usually where cheap connectors fail.

Applications Of Butt Splice Terminals

You’ll see Butt Splice Terminal solutions across multiple industries, especially where reliability matters more than cost per unit. ● Automotive wiring harness systems ● Industrial automation control panels ● Renewable energy installations ● Marine electrical systems ● HVAC and building wiring systems In many procurement cases, the decision isn’t “if” you use them—it’s which grade you choose.

Common Mistakes To Avoid

Even good components fail when misused, and this is something buyers often underestimate. ● Using incorrect wire gauge size ● Under-crimping or over-crimping ● Mixing stranded and solid wires improperly ● Ignoring environmental sealing requirements ● Skipping pull-test verification These are small details, but they decide long-term system reliability.

Why Choose High-Quality Butt Splice Terminals From Westlec

When you compare suppliers, the difference usually isn’t visible at first glance. It shows up after installation—sometimes months later. Westlec focuses on consistent crimp performance, stable material quality, and scalable manufacturing control as an Electrical Terminal Manufacturer supporting industrial procurement needs. ● Stable conductivity under load conditions ● Reliable crimp geometry consistency ● Industrial-grade corrosion resistance ● OEM/ODM production capability ● Designed for long-term electrical stability

FAQ

Are Crimp Connectors Reliable?

Yes—when properly crimped, they create a gas-tight joint with stable conductivity and strong mechanical bonding. How Butt Splice Terminals Work? They connect two wire ends inside a metal barrel using compression crimping to form an electrical and mechanical bond.

What Is A Butt Splice Terminal?

It is a wire connector used to join two conductors end-to-end in a straight-line configuration.

Can I Reuse A Butt Splice Connector?

No, most crimp-based terminals are designed for single-use applications.

Are Butt Splice Connectors Waterproof?

Heat shrink versions can provide waterproof and moisture-resistant sealing.

What Industries Use Butt Splice Terminals Most?

Automotive, industrial automation, renewable energy, and marine systems.

What Is The Difference Between Crimp And Solder Connection?

Crimping uses mechanical compression; soldering uses melted alloy. Crimping is more vibration-resistant in most field applications.

What Is Difference Between Insulated And Non-Insulated Butt Splices?

Insulated versions provide safety and environmental protection; non-insulated require external insulation.

What Quality Standards Should Electrical Terminal Manufacturer Follow?

Typically UL, CE, RoHS, and ISO quality management systems are expected in industrial procurement.

Conclusion

In real-world electrical systems, reliability is never accidental—it’s engineered. A Butt Splice Terminal provides a controlled, repeatable method for joining conductors, combining mechanical strength, electrical stability, and environmental protection in a single solution. Whether you are sourcing for automotive production, industrial control systems, or energy infrastructure, the difference between average and high-quality components becomes visible over time, not on day one. For procurement teams, choosing a trusted Butt Splice Connector supplier is less about price and more about lifecycle performance. Westlec positions itself exactly in that space, delivering consistent crimp quality and stable material performance for demanding applications. If you are evaluating sourcing options, it may be worth looking beyond specifications—and focusing on how the connection performs after installation, vibration, and time.

Copper Tube Terminals: Manufacturing & Crimping Guide

In modern electrical systems, reliable cable terminations are just as important as the cables themselves. Whether you are sourcing components for switchgear, power distribution panels, renewable energy systems, or industrial machinery, choosing the right Copper Tube Terminal can directly impact system safety, conductivity, and long-term reliability. As a buyer, you may focus on pricing and specifications, but understanding how Copper Tube Terminal Lugs are manufactured and properly crimped can help you avoid costly failures and maintenance issues later. In this guide, you'll learn how copper tube terminals are produced, which crimping tools are suitable for different applications, and how to evaluate crimping quality before installation.

Copper Tube Terminals: Manufacturing & Crimping Guide

How Copper Tube Terminals Are Manufactured

The performance of a Copper Lug Connector begins long before installation. Manufacturing quality determines conductivity, mechanical strength, corrosion resistance, and service life. Professional manufacturers follow a series of controlled production processes to ensure every terminal meets industry requirements.

Copper Tube Selection

Everything starts with raw materials. High-quality Copper Tube Terminal Lugs are typically manufactured from seamless electrolytic copper tubes with a purity level exceeding 99.9%. Pure copper offers excellent electrical conductivity while maintaining the mechanical strength needed for heavy-duty applications. A reputable manufacturer will carefully inspect incoming copper materials to verify: ● Copper purity ● Wall thickness consistency ● Surface quality ● Dimensional accuracy ● Conductivity standards Low-grade copper may appear similar externally, but often results in increased electrical resistance and reduced lifespan.

Cutting And Forming

After material verification, copper tubes are cut into precise lengths according to product specifications. Advanced CNC cutting equipment helps ensure: ● Uniform barrel length ● Smooth cutting edges ● Consistent dimensions ● Minimal material waste The terminal palm is then formed through stamping and pressing operations. This stage determines the final shape of the terminal and directly affects installation compatibility.

Punching And Hole Making

The mounting hole is one of the most critical features of a terminal. Precision punching machines create stud holes designed for common bolt sizes such as: ● M6 ● M8 ● M10 ● M12 ● M16 Accurate hole dimensions ensure secure fastening while preventing unnecessary movement during operation. Many industrial users prefer Ring Type Cable Lug designs because the closed-ring structure provides superior vibration resistance compared to fork-type terminals.

Annealing Process

Copper naturally hardens during forming operations. To restore flexibility and improve crimping performance, manufacturers perform annealing. During annealing, terminals are heated under controlled conditions and then cooled gradually. Benefits include: ● Improved ductility ● Better crimping performance ● Reduced cracking risk ● Increased mechanical strength ● Enhanced conductor compression Without proper annealing, terminals may become brittle and fail during installation.

Surface Treatment

Before plating, terminals undergo thorough cleaning procedures. The surface must be free from: ● Oxidation ● Oil contamination ● Metal particles ● Production residues Surface preparation ensures proper coating adhesion and improves corrosion protection.

Tin Plating

Tin plating is one of the most important steps in manufacturing modern Copper Tube Terminal products. The tin layer provides several advantages: ● Corrosion resistance ● Oxidation protection ● Improved appearance ● Longer service life ● Better environmental durability For outdoor installations, renewable energy projects, and coastal environments, tin-plated terminals are generally preferred over bare copper alternatives.

Quality Inspection

Professional manufacturers conduct multiple quality inspections throughout production. Common inspection items include:

Inspection Item	Purpose	Importance
Dimensional Check	Verify specifications	Installation accuracy
Hole Diameter Test	Confirm bolt compatibility	Secure connection
Plating Inspection	Check coating quality	Corrosion resistance
Conductivity Test	Verify electrical performance	Safety
Pull-Out Test	Evaluate mechanical strength	Reliability
Visual Inspection	Detect defects	Quality assurance

At Westlec, strict quality control procedures help ensure every terminal performs consistently under demanding electrical conditions.

Manufacturing Process Flow

The manufacturing workflow of a high-quality Copper Tube Terminal typically follows the sequence below: Raw Copper Tube ↓ Material Inspection ↓ Cutting ↓ Forming ↓ Hole Punching ↓ Annealing ↓ Surface Cleaning ↓ Tin Plating ↓ Quality Inspection ↓ Packaging ↓ Shipment Each stage contributes to the final performance of the terminal. Skipping or poorly controlling any step can significantly affect product quality.

Why Manufacturing Quality Matters

Many buyers compare suppliers primarily based on price. However, experienced engineers often evaluate manufacturing capability before considering cost. A well-manufactured Copper Lug Connector delivers advantages that extend far beyond initial purchase savings.

Lower Electrical Resistance

Higher copper purity and accurate compression design reduce resistance. Lower resistance means: ● Less energy loss ● Reduced heat generation ● Improved efficiency ● Enhanced safety

Greater Mechanical Reliability

Industrial environments often expose cable connections to: ● Vibration ● Thermal cycling ● Mechanical stress ● Outdoor weather conditions Properly manufactured terminals maintain secure connections under these challenging conditions.

Improved Corrosion Protection

In renewable energy projects, substations, and marine applications, corrosion can significantly shorten component lifespan. High-quality tin plating protects the terminal surface and helps maintain conductivity over many years.

Longer Service Life

A buyer once replaced low-cost cable lugs across a solar installation after only three years due to severe corrosion. The replacement terminals, sourced from a certified manufacturer, remained operational for more than a decade with minimal maintenance. While the initial investment was slightly higher, the overall lifecycle cost was substantially lower. This is why manufacturing quality should never be overlooked.

Types Of Copper Tube Terminal Crimping Tools

Even the best terminal can fail if improper crimping tools are used. Different applications require different crimping solutions.

Manual Crimping Tools

Manual crimpers are commonly used for: ● Small cable sizes ● Field installations ● Maintenance work ● Low-volume applications Advantages include: ● Portable design ● Low investment cost ● Easy operation ● Suitable for light-duty work However, operator consistency plays a significant role in crimp quality.

Hydraulic Crimping Tools

Hydraulic crimpers are among the most widely used tools for industrial applications. They provide: ● Higher compression force ● Consistent crimp quality ● Reduced operator effort ● Improved productivity Hydraulic tools are suitable for medium and large cable sizes commonly found in power distribution systems.

Battery-Powered Crimping Tools

Battery-operated crimpers have become increasingly popular. They combine portability with automated force control. Benefits include: ● Faster installation ● Consistent crimp force ● Improved efficiency ● Reduced labor fatigue These tools are particularly useful for field service teams and utility contractors.

Pneumatic Crimping Machines

For high-volume production environments, pneumatic or fully automatic crimping machines are often preferred. They offer: ● High production speed ● Repeatable results ● Reduced labor requirements ● Excellent consistency Manufacturers producing large quantities of cable assemblies frequently rely on automated equipment.

Copper Tube Terminal Crimping Procedure

Proper crimping is essential for achieving a reliable electrical connection. Even premium-quality terminals can fail if crimping procedures are not followed correctly.

Step 1 Cable Preparation

Remove the insulation carefully without damaging the conductor strands. The exposed conductor should be: ● Clean ● Straight ● Oxidation-free Any damaged strands should be removed before installation.

Step 2 Select Correct Die

The crimping die must match both: ● Terminal size ● Cable cross-sectional area Using an incorrect die can result in weak or over-compressed connections.

Step 3 Insert Conductor

Insert the conductor fully into the barrel. You should verify that all strands are inside the terminal and evenly positioned.

Step 4 Perform Crimping

Apply compression according to manufacturer recommendations. Multiple crimps may be required for larger terminals. The completed crimp should show uniform compression marks without cracks or deformation.

Step 5 Visual Inspection

Inspect the completed crimp carefully. Check for: ● Barrel cracks ● Incomplete compression ● Exposed strands ● Surface damage Any visible defect should be corrected immediately.

Step 6 Electrical Testing

Professional installations often include electrical verification. Common tests include: ● Continuity testing ● Resistance measurement ● Pull-out testing ● Thermal inspection These tests help confirm long-term reliability.

How To Judge Crimping Quality

After crimping, quality evaluation becomes critical. A properly crimped terminal should provide both mechanical retention and electrical conductivity.

Characteristics Of A Good Crimp

A good crimp typically exhibits: ● Uniform compression marks ● No visible cracks ● Secure conductor retention ● Low electrical resistance ● Smooth terminal appearance The conductor should not move when moderate pulling force is applied.

Signs Of Poor Crimping

Poor crimping often shows warning signs such as: ● Loose conductor strands ● Barrel cracking ● Excessive deformation ● Uneven compression ● High resistance readings These defects can lead to overheating, voltage drops, and premature connection failure.

Practical Recommendation

Many experienced installers perform a visual inspection and pull test immediately after crimping. While simple, these checks can quickly identify issues before the terminal enters service. For critical applications such as substations, switchgear, and renewable energy systems, additional electrical testing is strongly recommended to ensure connection integrity.

Key Benefits Of Copper Tube Terminals

When selecting electrical termination components, performance and reliability are often more important than the initial purchase price. High-quality Copper Tube Terminal Lugs have become the preferred choice across power utilities, industrial automation, renewable energy systems, and transportation infrastructure because they deliver a combination of electrical and mechanical advantages that few alternatives can match.

Excellent Electrical Conductivity

One of the biggest advantages of a Copper Tube Terminal is its outstanding conductivity. Copper has one of the highest electrical conductivity ratings among commercially available metals. This allows electrical current to flow efficiently with minimal resistance. For buyers, this translates into several practical benefits: ● Reduced energy loss ● Lower operating temperatures ● Improved system efficiency ● Enhanced electrical safety ● Greater power transmission capacity In high-current applications such as switchgear, transformers, and battery energy storage systems, conductivity directly impacts overall system performance. A poorly conductive connector can generate heat over time, which may eventually damage cables and connected equipment.

High Mechanical Strength

Electrical connections are exposed to more than just current flow. Many installations experience: ● Vibration ● Mechanical stress ● Thermal expansion ● Frequent load fluctuations A quality Copper Lug Connector maintains its structural integrity even under demanding operating conditions. The seamless copper tube construction commonly used in premium terminals provides superior tensile strength and resistance to deformation. For example, wind turbine control systems often experience constant vibration. In these environments, properly manufactured Ring Type Cable Lug products can maintain secure connections for years without loosening.

Superior Corrosion Resistance

Corrosion remains one of the leading causes of electrical connection failures worldwide. Outdoor installations face challenges such as: ● Rain ● Humidity ● Salt spray ● Industrial pollutants ● Temperature variations Tin-plated Copper Tube Terminal Lugs provide excellent protection against oxidation and corrosion. The tin coating acts as a protective barrier that helps preserve conductivity while extending product lifespan. This is especially important for: ● Solar power plants ● Wind farms ● Marine applications ● Coastal substations ● Industrial facilities Many buyers underestimate the long-term costs associated with corrosion-related failures. A slightly higher investment in quality terminals can significantly reduce maintenance expenses over the life of the project.

Long Service Life

Durability is a key consideration when evaluating lifecycle costs. A high-quality Copper Tube Terminal can remain in service for decades when properly installed and maintained. Several factors contribute to extended service life: ● High-purity copper ● Seamless construction ● Proper annealing ● Reliable tin plating ● Professional crimping In utility power distribution projects, it is common to find copper terminals operating effectively after twenty years or more. Long service life not only reduces replacement costs but also minimizes system downtime and maintenance requirements.

Easy Installation And Maintenance

Modern copper tube terminals are designed with installers in mind. Features such as: ● Bell-mouth barrel design ● Standardized stud holes ● Inspection windows ● Smooth internal surfaces help simplify installation while improving consistency. Maintenance personnel also benefit from easier inspection and troubleshooting procedures. When selecting components for large-scale projects, ease of installation can have a measurable impact on labor costs and project timelines.

How To Choose The Right Copper Tube Terminal

Selecting the correct terminal involves more than simply matching a part number. You should evaluate several technical factors to ensure optimal performance and compliance with project requirements.

Match The Cable Size

The first rule is simple: The terminal size must match the conductor size. For example:

Cable Size	Recommended Terminal Size
16 mm²	16 mm² Lug
25 mm²	25 mm² Lug
50 mm²	50 mm² Lug
95 mm²	95 mm² Lug
120 mm²	120 mm² Lug

Using an oversized terminal may result in insufficient compression. Using an undersized terminal can damage the conductor and compromise electrical performance. Always verify manufacturer specifications before purchasing.

Select The Correct Stud Hole Size

The mounting hole must correspond to the connection point. Common hole sizes include: ● M6 ● M8 ● M10 ● M12 ● M16 An incorrect hole size can create installation difficulties or reduce mechanical stability. For high-vibration environments, many engineers prefer Ring Type Cable Lug configurations because the closed-ring design offers greater security.

Consider Operating Environment

Environmental conditions have a major influence on terminal selection. Questions to consider include: ● Will the installation be indoors or outdoors? ● Is moisture exposure expected? ● Will corrosive chemicals be present? ● Are there extreme temperature fluctuations? For outdoor and marine environments, tin-plated copper terminals are generally recommended. For indoor control panels and switchboards, standard tinned copper terminals often provide excellent performance at a competitive cost.

Verify Standards And Certifications

Certification demonstrates manufacturing consistency and compliance with industry requirements. When evaluating suppliers, verify whether products comply with standards such as: ● IEC standards ● DIN standards ● UL requirements ● RoHS directives ● ISO quality management systems Working with certified manufacturers reduces procurement risk and improves confidence in product performance.

Common Installation Mistakes To Avoid

Even premium-quality terminals can fail if installation practices are poor. Understanding common mistakes helps prevent costly field failures.

Using The Wrong Lug Size

One of the most frequent installation errors is selecting an incorrect lug size. Potential consequences include: ● Poor conductor contact ● Increased resistance ● Overheating ● Premature failure Always match the terminal barrel size to the conductor cross-section.

Inadequate Crimping Force

Insufficient compression creates weak electrical and mechanical connections. Signs of under-crimping include: ● Loose conductors ● High resistance ● Excessive heat generation ● Reduced pull-out strength Using calibrated crimping tools helps ensure proper compression.

Selecting The Wrong Crimping Die

Even experienced installers occasionally use the wrong die. An incorrect die can produce: ● Incomplete compression ● Barrel damage ● Poor conductivity ● Mechanical weakness Always confirm die markings before crimping.

Ignoring Corrosion Protection

Environmental conditions should never be overlooked. Installing bare copper terminals in humid or corrosive environments can significantly shorten service life. Where corrosion is a concern, tin-plated terminals offer a more reliable solution.

Poor Cable Preparation

Cable preparation is often underestimated. Common preparation mistakes include: ● Damaged conductor strands ● Incomplete insulation removal ● Contaminated conductors ● Oxidized cable surfaces Proper preparation ensures optimal electrical contact and long-term reliability.

Why Choose Westlec Copper Tube Terminals?

As a professional manufacturer, Westlec understands that buyers require more than just competitive pricing. You need reliable products, consistent quality, and dependable supply.

High-Purity Copper Material

Westlec uses high-purity copper materials to maximize conductivity and ensure long-term performance. Strict raw material inspections help maintain product consistency across every production batch.

Seamless Copper Tube Manufacturing

Seamless copper tube construction provides: ● Better conductivity ● Higher mechanical strength ● Improved crimping performance ● Reduced cracking risk This manufacturing approach contributes directly to product reliability.

Tin-Plated Surface Treatment

Westlec copper terminals feature high-quality tin plating that enhances corrosion resistance and extends service life. This makes them suitable for both indoor and outdoor applications.

OEM & Custom Design Support

Different projects require different solutions. Westlec offers customization options including: ● Barrel length ● Hole size ● Surface finish ● Product markings ● Packaging solutions OEM and ODM services help customers meet specific project requirements.

Strict Quality Control

Quality assurance is integrated throughout the manufacturing process. Inspection procedures include: ● Material verification ● Dimensional testing ● Plating inspection ● Conductivity testing ● Visual examination Every stage is monitored to ensure compliance with customer specifications.

Global Export Experience

Westlec serves customers across multiple international markets. Extensive export experience enables the company to support distributors, contractors, panel builders, and OEM manufacturers with reliable products and professional service. Whether you are sourcing standard Copper Tube Terminal Lugs or customized Copper Lug Connector solutions, Westlec is committed to helping you achieve dependable electrical connections and long-term project success.

FAQ

How Do I Select The Correct Lug Size?

The correct lug size should match the conductor cross-sectional area of your cable. For example, a 50 mm² cable requires a 50 mm² Copper Tube Terminal. Using the wrong size can lead to poor conductivity, overheating, and premature failure.

What Crimping Tool Should I Use?

The ideal crimping tool depends on the cable size and application. Manual crimpers are suitable for smaller cables, while hydraulic and battery-powered crimpers are recommended for medium and large conductors. High-volume production environments often use pneumatic or automatic crimping machines for consistent results.

How Long Do Copper Cable Lugs Last?

High-quality Copper Tube Terminal Lugs can last more than 20 years when properly installed and used within their rated operating conditions. Factors such as material quality, plating, environmental exposure, and maintenance practices all influence service life.

Can Copper Tube Terminals Be Used Outdoors?

Yes. Tin-plated Copper Tube Terminal products are specifically designed to withstand outdoor environments. The tin coating helps protect against moisture, oxidation, UV exposure, and corrosion, making them suitable for solar power systems, substations, and marine applications.

What Industries Commonly Use Ring Type Cable Lugs?

Ring Type Cable Lug products are widely used in: ● Power distribution systems ● Switchgear and control panels ● Renewable energy installations ● Railway electrification ● Telecommunications equipment ● Automotive and marine electrical systems Their closed-ring design provides excellent vibration resistance and connection security.

Are Tinned Copper Lugs Better Than Bare Copper Lugs?

For most industrial applications, tinned copper lugs offer better corrosion resistance than bare copper lugs. They are particularly beneficial in humid, coastal, and outdoor environments where oxidation can affect long-term performance.

Why Are Copper Lug Connectors Preferred Over Aluminum Lugs?

A Copper Lug Connector generally provides higher electrical conductivity, stronger mechanical performance, and greater long-term reliability than aluminum alternatives. Although copper lugs may have a higher initial cost, they often deliver lower lifecycle costs due to reduced maintenance and longer service life.

What Is The Difference Between A Cable Lug And A Copper Tube Terminal?

A cable lug is a broad category of electrical connectors used for cable termination. A Copper Tube Terminal is a specific type of cable lug manufactured from seamless copper tubing and designed for high-performance crimped electrical connections.

What Certifications Should Quality Copper Tube Terminal Lugs Meet?

Reliable Copper Tube Terminal Lugs should comply with recognized industry standards and certifications, such as: ● IEC standards ● DIN standards ● UL requirements ● RoHS compliance ● ISO 9001 quality management systems These certifications help ensure product consistency, safety, and performance.

Conclusion

Selecting the right Copper Tube Terminal involves much more than comparing prices. Manufacturing quality, raw material purity, surface treatment, crimping methods, and installation practices all play critical roles in determining long-term electrical performance and reliability. By understanding how Copper Tube Terminal Lugs are manufactured and properly crimped, you can make better purchasing decisions, reduce maintenance costs, and improve the safety of your electrical systems. Whether you require a standard Copper Lug Connector or a customized Ring Type Cable Lug, partnering with a trusted manufacturer ensures consistent quality and dependable performance. At Westlec, we combine high-purity copper materials, seamless manufacturing technology, strict quality control, and global export experience to deliver reliable cable termination solutions for customers worldwide. Looking for a trusted Copper Tube Terminal manufacturer? Contact Westlec today to discuss your project requirements and receive a customized quotation. [custom-related-posts title="Related Posts" none_text="None found" order_by="title" order="ASC"]

Is Crimping Terminals Better Than Soldering?

When creating reliable electrical connections, engineers, electricians, and manufacturers often face a common question: Is crimping terminals better than soldering? Both crimping and soldering have been used for decades in electrical and electronic applications. However, with the rapid growth of industrial automation, automotive wiring, renewable energy systems, and electrical control panels, crimping terminals have become the preferred connection method in many industries. The choice between a crimped connection and a soldered connection can significantly affect reliability, conductivity, maintenance costs, and overall system performance. Understanding the strengths and limitations of each method helps professionals select the most suitable solution for their applications. In this article, we'll compare crimping terminals vs soldering, examine their advantages and disadvantages, and explain why most manufacturers now favor crimped connections for industrial and commercial electrical systems.

What Are Crimping Terminals?

Crimping terminals are electrical connectors designed to create a secure mechanical and electrical connection between a conductor and a terminal by applying pressure with a crimping tool.

During the crimping process, the terminal barrel is compressed around the wire strands, forming a gas-tight connection often referred to as a cold weld. Common types of crimp terminals include: ● Ring terminals ● Fork terminals ● Pin terminals ● Butt connectors ● Quick disconnect terminals ● Ferrules ● Spade terminals Crimping terminals are widely used in: ● Industrial control panels ● Power distribution systems ● Automotive wiring harnesses ● Renewable energy systems ● Telecommunications equipment ● Railway electrical systems ● Aerospace applications A properly executed crimp connection can provide excellent electrical conductivity and long-term reliability without requiring heat.

What Is Soldering?

Soldering is a process that joins wires or components by melting a filler metal (solder) into the joint. The solder flows between the conductors and solidifies as it cools, creating both mechanical and electrical bonding. Typical soldering applications include: ● Printed circuit boards (PCBs) ● Electronic assemblies ● Prototype development ● Small signal circuits ● Consumer electronics repair While soldering remains essential in electronics manufacturing, it is increasingly less common for industrial wire termination applications where vibration resistance and field installation efficiency are critical.

Crimping Terminals vs Soldering: Key Differences

Installation Process

Crimping

Crimping requires: ● Wire stripping ● Terminal selection ● Crimping tool application The entire process can be completed within seconds. Benefits include: ● Fast installation ● Consistent quality ● No heat required ● Minimal operator skill

Soldering

Soldering requires: ● Surface preparation ● Flux application ● Heating ● Solder application ● Cooling time The process takes longer and requires greater skill to achieve consistent results.

Winner: Crimping

For production environments and field installations, crimping is significantly faster and more efficient.

Mechanical Strength

Mechanical strength is critical in environments exposed to movement, vibration, or shock.

Crimped Connections

A properly crimped terminal compresses wire strands together to create a highly durable mechanical bond. Advantages include: ● Excellent pull-out resistance ● High vibration tolerance ● Reduced fatigue failure ● Long service life

Soldered Connections

Although soldered joints can initially be strong, solder often wicks into wire strands. This creates a rigid section that becomes vulnerable to: ● Bending stress ● Vibration damage ● Wire fatigue Over time, repeated movement may cause conductor breakage near the solder joint.

Winner: Crimping

Crimped terminals generally provide superior mechanical performance in industrial environments.

Electrical Conductivity Comparison

One common misconception is that soldering always provides better conductivity. In reality, a properly executed crimp connection can perform just as well—or even better.

Crimped Connections

Professional crimping creates: ● Gas-tight contact ● Low contact resistance ● Stable conductivity ● Excellent current-carrying capability The compressed metal surfaces eliminate air gaps and reduce oxidation.

Soldered Connections

Solder joints also provide good conductivity, but conductivity depends heavily on: ● Solder quality ● Joint preparation ● Heat control ● Operator skill Poor soldering can create: ● Cold joints ● Voids ● Increased resistance

Winner: Tie

When correctly executed, both methods provide excellent electrical performance. However, crimping tends to produce more consistent results in large-scale manufacturing.

Vibration Resistance

Industrial systems frequently experience vibration from: ● Motors ● Pumps ● Compressors ● Vehicles ● Rail equipment ● Wind turbines

Crimping Performance

Crimped terminals maintain flexibility in the wire strands while providing secure retention. Advantages include: ● Superior vibration resistance ● Lower risk of conductor fatigue ● Reduced maintenance requirements

Soldering Performance

Soldered joints create rigid sections within the conductor. Repeated vibration may eventually lead to: ● Cracked solder joints ● Wire breakage ● Connection failure

Winner: Crimping

This is one of the primary reasons automotive and aerospace industries heavily favor crimped terminals.

Corrosion Resistance

Environmental conditions significantly affect connection lifespan.

Crimped Connections

A correctly crimped terminal creates a gas-tight seal that helps prevent: ● Moisture intrusion ● Oxidation ● Corrosion When combined with heat-shrink tubing, protection becomes even more effective.

Soldered Connections

Improper soldering can leave gaps where moisture accumulates. Over time, corrosion may develop, particularly in outdoor environments.

Winner: Crimping

Especially for harsh industrial applications.

Cost Comparison

Crimping Costs

Initial investments include: ● Crimping tools ● Applicators ● Crimp dies However, operating costs remain low due to: ● Fast processing ● Minimal training ● High productivity

Soldering Costs

Soldering requires: ● Soldering stations ● Solder wire ● Flux ● Cleaning materials ● Skilled labor Production speed is slower, increasing labor costs.

Winner: Crimping

For high-volume production, crimping offers lower overall costs.

Why Most Manufacturers Prefer Crimping Terminals

Today, many industries have standardized on crimping technology. Key reasons include:

Higher Production Efficiency

Manufacturers can process thousands of wire terminations per day with automated crimping equipment.

Consistent Quality

Automated crimping machines deliver repeatable results with minimal variation.

Improved Reliability

Crimped connections perform exceptionally well under: ● Vibration ● Temperature changes ● Mechanical stress

Lower Maintenance

Reliable connections reduce downtime and maintenance expenses.

Industry Compliance

Many international standards favor crimped wire terminations for critical applications.

Applications Where Crimping Terminals Are Preferred

Automotive Industry

Modern vehicles contain hundreds of electrical connections. Crimp terminals are preferred because they: ● Resist vibration ● Support mass production ● Improve long-term reliability

Industrial Automation

Control cabinets and PLC systems require dependable wire terminations. Crimping terminals help maintain stable electrical performance.

Renewable Energy Systems

Solar farms and wind turbines rely on crimped connections due to their durability and weather resistance.

Telecommunications

Communication systems require low-resistance connections capable of operating for years without failure.

Aerospace and Railways

Safety-critical systems depend on crimp technology because of its proven reliability under extreme operating conditions.

When Soldering May Be the Better Choice

Although crimping dominates industrial wiring applications, soldering remains valuable in specific situations. Examples include:

PCB Assembly

Electronic circuit boards require soldering for component mounting.

Fine Electronic Work

Small conductors and delicate components may be easier to solder.

Prototyping

Engineers often use soldering during development and testing stages.

Low-Vibration Environments

Fixed electronic equipment may not require the mechanical advantages of crimping. In these cases, soldering remains an effective solution.

How to Achieve Reliable Crimp Connections

Even the best crimp terminal can fail if installed incorrectly. Follow these best practices:

Choose the Correct Terminal

Select terminals based on: ● Wire gauge ● Current rating ● Voltage rating ● Environmental conditions

Use Professional Crimping Tools

Avoid generic pliers or improper tools. Use manufacturer-approved crimping equipment.

Inspect Every Crimp

Check for: ● Proper compression ● Wire retention ● Correct conductor insertion

Perform Pull Testing

Verify mechanical strength through pull-out testing when required.

Use Quality Materials

High-quality copper terminals with appropriate plating provide superior performance.

Common Myths About Crimping Terminals

Myth 1: Soldering Is Always Stronger

In reality, properly crimped terminals often exceed soldered joints in mechanical strength.

Myth 2: Crimping Has Higher Resistance

Modern crimp technology produces extremely low-resistance connections.

Myth 3: Crimping Is Only for Low-Cost Applications

Crimping is used extensively in aerospace, military, and industrial systems where reliability is critical.

Myth 4: Anyone Can Crimp Correctly

Proper tooling and training remain essential for achieving consistent results.

How to Choose a Reliable Crimp Terminal Manufacturer

When sourcing crimping terminals, consider:

Material Quality

Look for: ● High-conductivity copper ● Tinned copper options ● Corrosion-resistant plating

Manufacturing Standards

Verify compliance with: ● UL ● CE ● RoHS ● ISO 9001

Product Range

A reliable manufacturer should offer: ● Ring terminals ● Fork terminals ● Pin terminals ● Ferrules ● Butt connectors

Customization Capability

Industrial projects often require customized terminal solutions.

Technical Support

Experienced suppliers can recommend the best terminal design for your application.

Conclusion

So, is crimping terminals better than soldering? For most industrial, automotive, telecommunications, renewable energy, and power distribution applications, the answer is yes. Crimped connections offer superior vibration resistance, faster installation, greater consistency, lower production costs, and excellent long-term reliability. These advantages explain why modern manufacturers increasingly rely on crimping terminals instead of soldered wire connections. Soldering still plays an important role in PCB assembly and electronics manufacturing, but when it comes to wire termination in demanding environments, crimping remains the industry standard. By selecting high-quality crimp terminals and using proper installation techniques, businesses can achieve safer, stronger, and more reliable electrical connections for years to come.

Looking for High-Quality Crimping Terminals?

As a professional Crimp Terminal Manufacturer, we provide reliable crimping terminals, wire connectors, ferrules, and customized electrical connection solutions for industrial, automotive, and power distribution applications. Contact us today to find the right terminal products for your project.

How To Choose The Right Size Non Insulated Ring Terminal

How To Choose The Right Size Non Insulated Ring Terminal

Cable Cross-Section And Current Rating Relationship

General Rule

Key Considerations

Matching Size With Conductor Size

Risks Of Incorrect Sizing

Selecting Based On Current Load (Ampacity Requirements)

Best Practice

Choosing Material For High Conductivity And Durability

Why Copper Is Preferred

Considering Application Scenarios

Power Distribution Systems

Industrial Equipment

Battery Connections

Automotive Applications

Renewable Energy Systems

Using Product Size Chart

Quick Selection Guide

Non Insulated Ring Terminal Size Reference Table

Cable Size Vs Current Capacity Comparison

Recommended Applications For Each Model

<img fetchpriority="high" decoding="async" class="alignnone wp-image-2833" src="https://www.westlec.com/wp-content/uploads/2025/05/CRI-RNB8-1.jpg" alt="RNB 8 Ring non-insulted terminal" width="800" height="800">RNB 8 (6–10 Mm², 62A)

RNB 14 (10–16 Mm², 88A)

RNB 22 (16–25 Mm², 115A)

RNB 60 (50–70 Mm², 215A)

RNB 70 (70–95 Mm², 235A)

RNB 80 (95–120 Mm², 255A)

RNB 100 (120–150 Mm², 300A)

RNB 150 (150–185 Mm², 395A)

Common Mistakes When Choosing Non Insulated Ring Terminals

Based Only On Wire Diameter Without Considering Current

Ignoring Temperature Rise And Load Conditions

Using Undersized Bare Ring Terminal For High-Power Systems

Mixing Metric Cable Size With AWG Confusion

Poor Crimping Leading To Resistance And Heat Build-Up

Installation Tips

Proper Crimping Tool Selection

Correct Strip Length And Insertion Depth

Ensuring Tight Mechanical And Electrical Connection

Inspection After Crimping And Pull Test Guidelines

FAQ

How Does Crimp Quality Affect Performance?

What Is A Non Insulated Ring Terminal Used For?

Bare Ring Terminal Vs Insulated Type Ring Terminal

What Material Is Best For High Current Applications?

Which Copper Ring Terminal Non Insulated Size Do I Need?

Can Non Insulated Ring Connectors Be Used In Automotive Systems?

Can I Use Smaller Electrical Ring Terminal Non Insulated For Lower Current?

Are RNB Series Terminals Suitable For Industrial High-Current Applications?

Conclusion

How Butt Splice Terminals Ensure Reliable Wire Connections

Wire-To-Wire Connection Alignment Mechanism

Mechanical Strength & Vibration Resistance

Material Selection For Electrical Stability

Types Of Butt Splice Terminals

Vinyl Insulated Butt Splice Terminals

Nylon Insulated Butt Splice Terminals

Heat Shrink Butt Splice Terminals

Color Coding System For Wire Gauge Matching

Step-By-Step Guide: How To Crimp Butt Splice Terminals

Applications Of Butt Splice Terminals

Common Mistakes To Avoid

Why Choose High-Quality Butt Splice Terminals From Westlec

FAQ

Are Crimp Connectors Reliable?

What Is A Butt Splice Terminal?

Can I Reuse A Butt Splice Connector?

Are Butt Splice Connectors Waterproof?

What Industries Use Butt Splice Terminals Most?

What Is The Difference Between Crimp And Solder Connection?

What Is Difference Between Insulated And Non-Insulated Butt Splices?

What Quality Standards Should Electrical Terminal Manufacturer Follow?

Conclusion

Copper Tube Terminals: Manufacturing & Crimping Guide

How Copper Tube Terminals Are Manufactured

Copper Tube Selection

Cutting And Forming

Punching And Hole Making

Annealing Process

RNB 8 (6–10 Mm², 62A)
