KV-M25

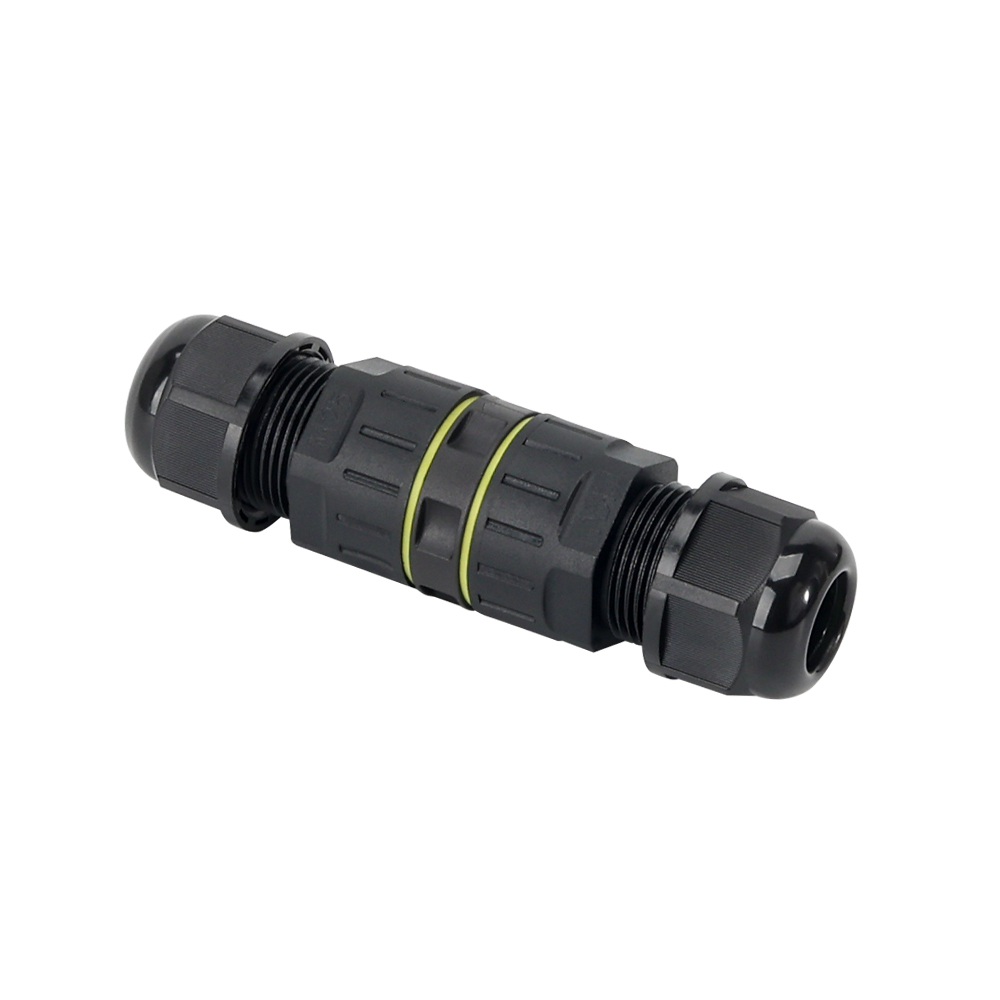

Waterproof Butt Connector KV-M25
Rated Voltage: 450V
Current Rating: 2-4Pin:40A 5Pin:24A
Wire Section: 0.5mm²-6mm²/0.5mm²-2.5mm²
Materials: PA66

Specifications

Number of Poles		2Pin/3Pin/4Pin/5Pin
Rated Voltage		450V
Current Rating		2-4Pin:40A 5Pin:24A
Wire Section		0.5mm²-6mm²/0.5mm²-2.5mm²
Min Wire Size OD		5-9mm,9-12mm,10-14mm
Temperature Rating		-40℃~+105℃
Waterproof grade IP Code		IP68
Housing Materials		PA66
Terminal Material		Nickel-Plated Brass

×
