KV-M25B

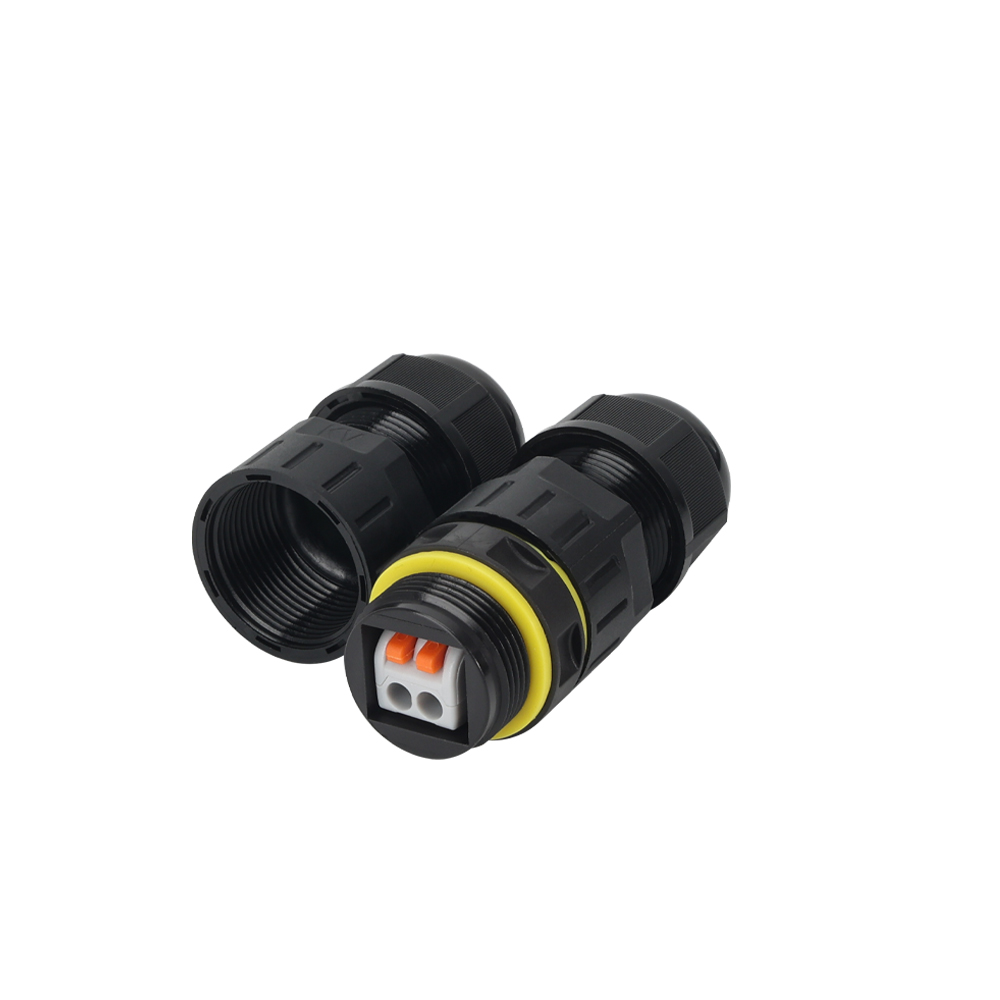

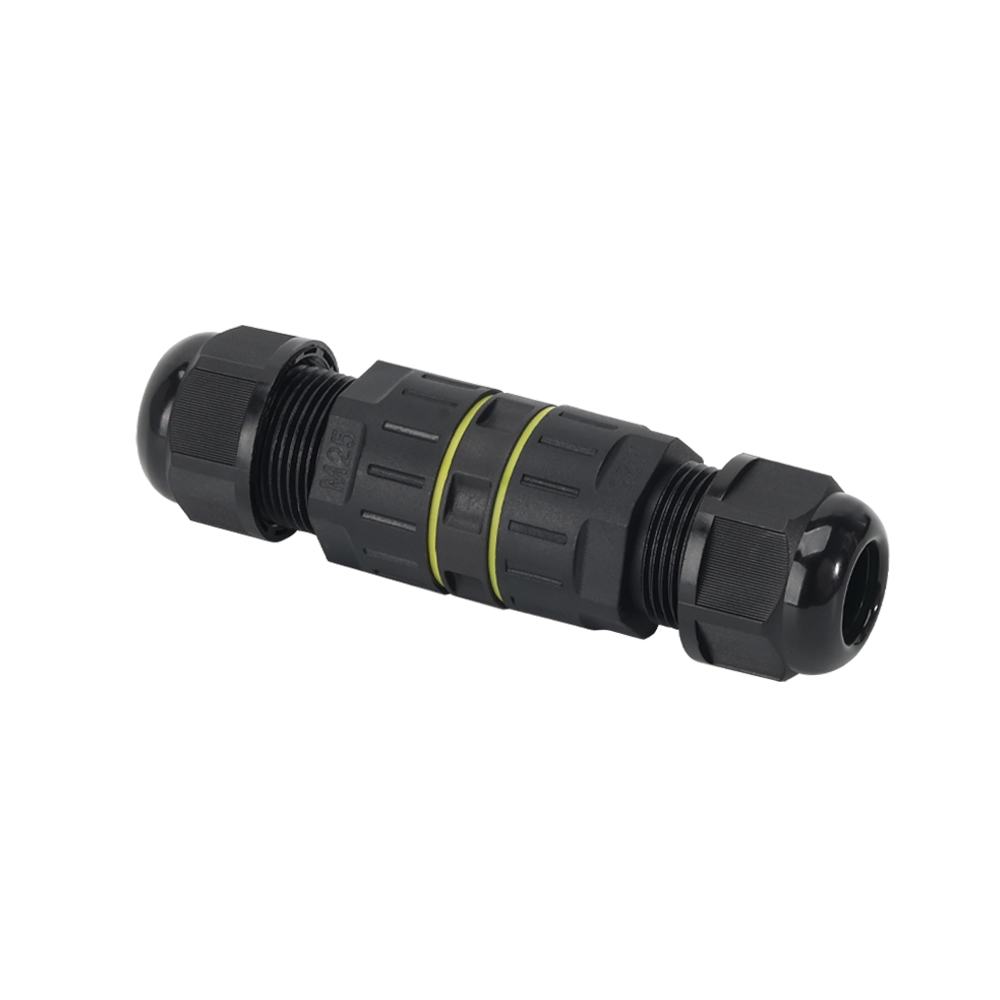

Waterproof Butt Connector KV-M25B
Rated Voltage: 450V
Current Rating: 24A
Wire Section: 0.08mm²-2.5mm²(4.0mm²)
Materials: PA66

Specifications

Number of Poles	2Pin/3Pin
Rated Voltage	450V
Current Rating	24A
Wire Section	0.08mm²-2.5mm²(4.0mm²)
Min Wire Size OD	5-9mm,9-12mm,10-14mm
Temperature Rating	-40℃~+105℃
Waterproof grade IP Code	IP68
Housing Materials	PA66
Terminal Material	Nickel-Plated Brass

×
