KV-M25T

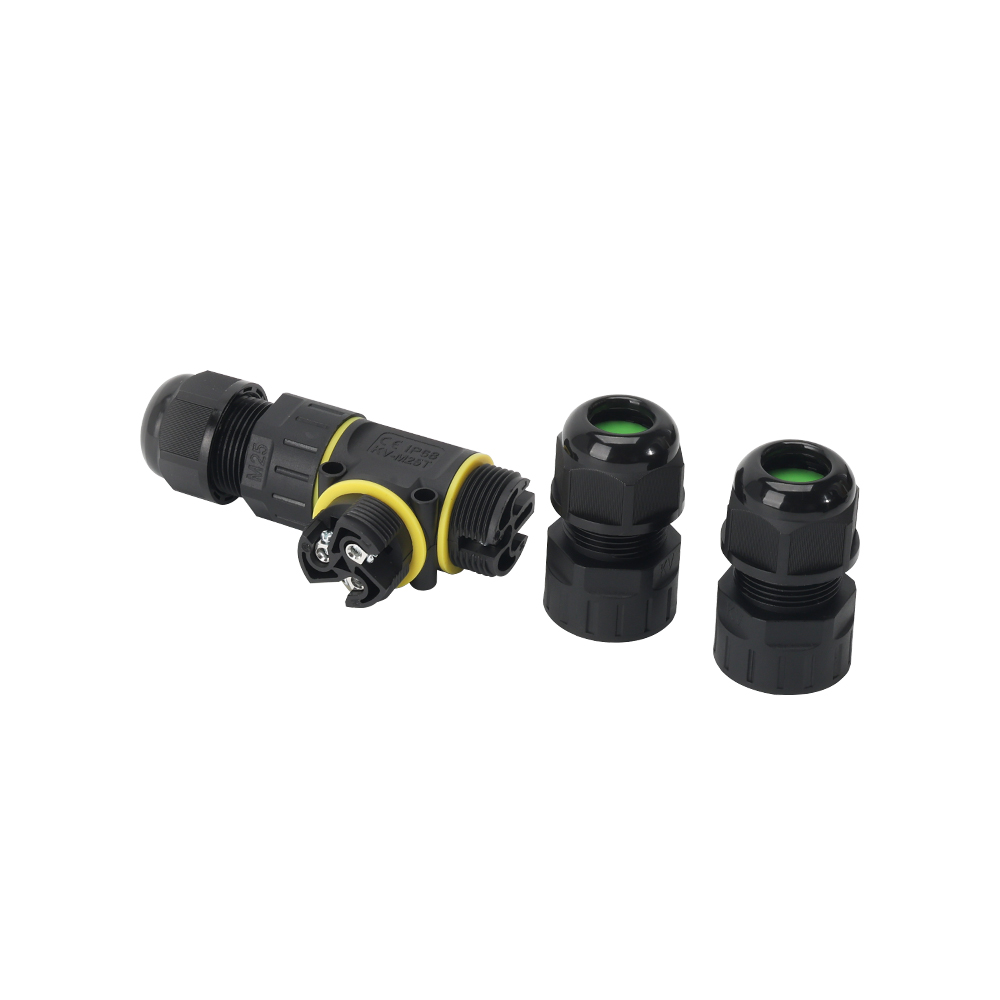

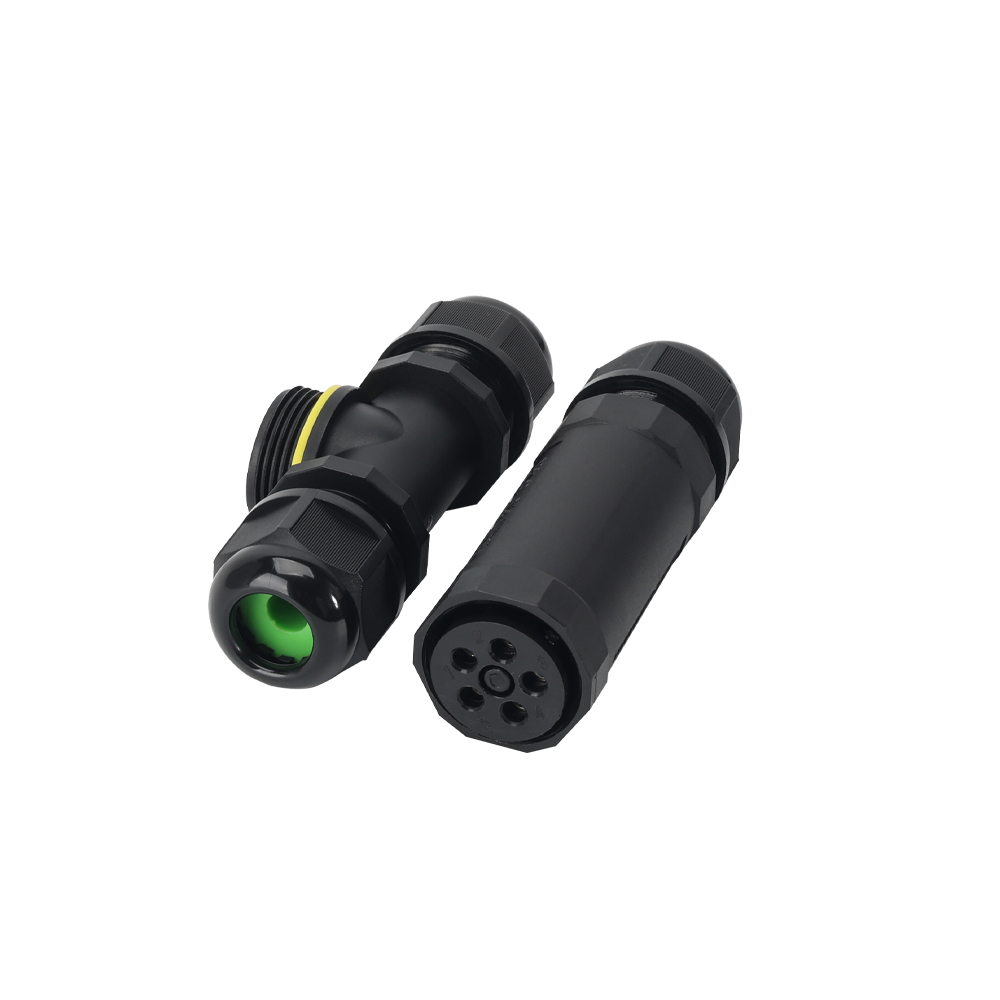

Waterproof Butt Connector KV-M25T
Rated Voltage: 450V
Current Rating: 40A
Wire Section: 0.5mm²-6mm²
Materials: PA66

Waterproof Butt Connector KV-M2068
Rated Voltage: 450V
Current Rating: 40A
Wire Section: 0.5mm²-6mm²
Materials: PA66Specifications

Number of Poles	2Pin/3Pin
Rated Voltage	450V
Current Rating	40A
Wire Section	0.5mm²-6.0mm²
Min Wire Size OD	5-9mm,9-12mm,10-14mm,14-18mm
Temperature Rating	-40℃~+105℃
Waterproof grade IP Code	IP68
Housing Materials	PA66
Terminal Material	Nickel-Plated Brass

×
