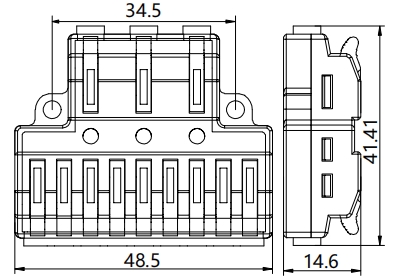

KV439

Applicable Wires: 0.5-4 mm²

Operating temperature: -25℃~95℃

Rated voltage: 250 V/600 V

Rated current: 32 A

Material of connectors shell: Nylon PA66/Polycarbon PC

Material of conductive parts: Brass Tin/plated

Product Description About Us

Characteristics:

  • Advanced Safety & Reliability: The KV439(3 in 9 out) lever terminals feature high-performance PA66/PC flame-retardant housing for exceptional thermal resistance and durability in harsh conditions.

  • Intuitive Tool-Free Installation: With a smart lever system, wiring is effortless—simply lift, insert (0.5-4.0mm²), and lock for instant, vibration-proof connections.

  • Compact Industrial-Grade Design: Combining sleek aesthetics with robust performance, these terminals deliver professional-grade solutions for luxury and heavy-duty applications alike.

Technical Parameters

Applicable Wire Gauge 0.5-4mm²/28-12  AWG
Temperature range -25℃~95℃
Rated Voltage 250V/600V
Rated Current 32A
Contact resistance ≤0.015Ω
Insulation resistance ≥1000mΩ
Material Shell: Nylon PA66/Polycarbon PC(Nyion)UL94V-2(0)
Contact piece: Brass Tin/plated
Spring buckle: 301 stainless steel
Reach 15 tests
Allowance ±0.05mm
Suitable guide TH35-7.5
×
