BV

Vinyl-insulated Butt Splice Terminal

RED: BV1.25 BV8 BV38

BLUE: BV2 BV22

YELLOW: BV5.5 BV22

Vinyl-insulated Butt Splice Terminal

RED: BV1.25 BV8 BV38

BLUE: BV2 BV22

YELLOW: BV5.5 BV22

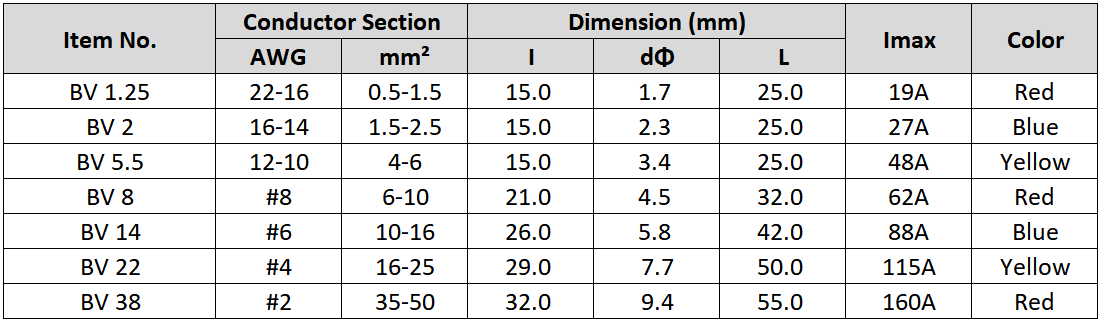

Technical Parameters

ITEM NO.	Conductor section		Dimension(mm)			Imax	Color	Explanation
ITEM NO.	A.W.G	mm²	I	dΦ	L	Imax	Color	Explanation
BV 1.25	22-16	0.5-1.5	15.0	1.7	25.0	19A	R e d	Cable size:0.5-1.5mm²(AW.G22~16) Max current Imax=27A Material:Copper Plating:Tin
BV 2	16-14	1.5-2.5	15.0	2.3	25.0	27A	Blue
BV 5.5	12-10	4-6	15.0	3.4	25.0	48A	Yellow
BV8	#8	6-10	21.0	4.5	32.0	62A	Red
BV 14	#6	10-16	26.0	5.8	42.0	88A	Blue
BV 22	#4	16-25	29.0	7.7	50.0	115A	Yellow
BV 38	#2	35-50	32.0	9.4	55.0	160A	Red
