FDD

Vinyl-insulted female disconnector

Material:PVC+Brass

Plating:Tin

FDD 1.25 RED

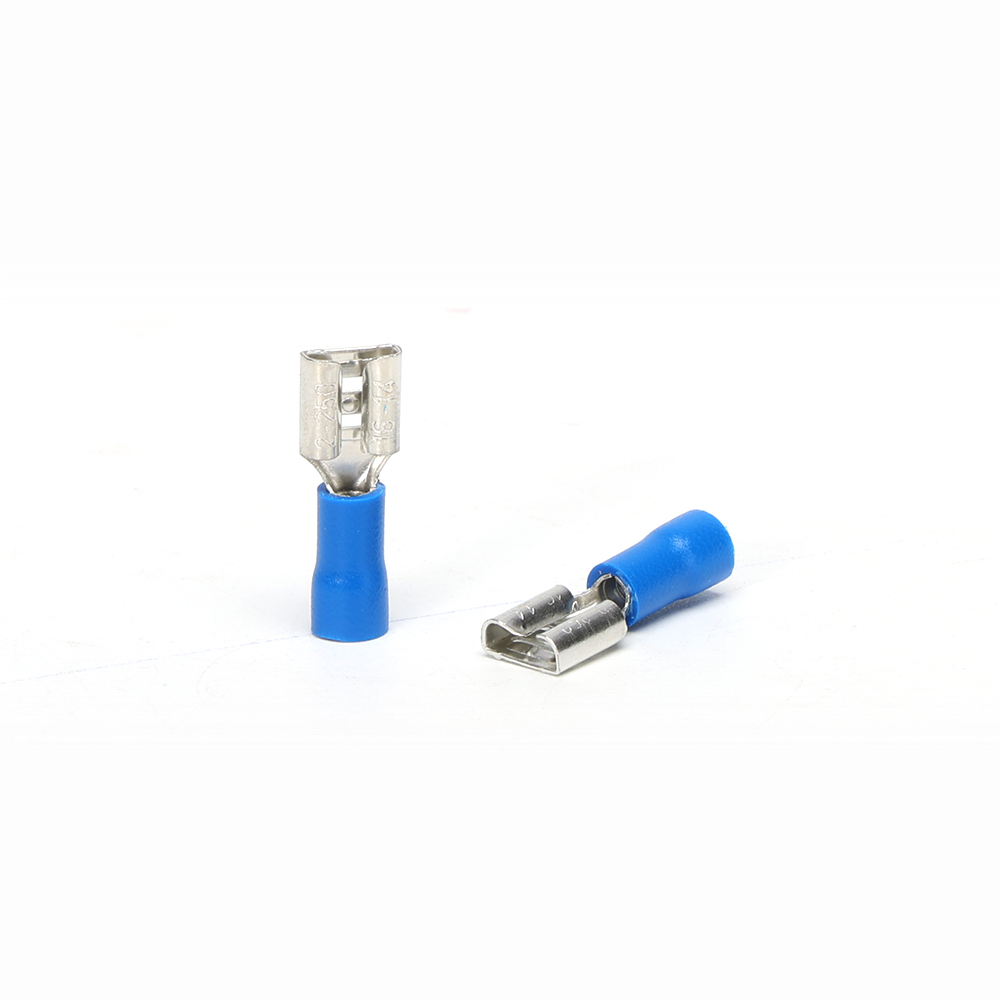

FDD 2 BLUE

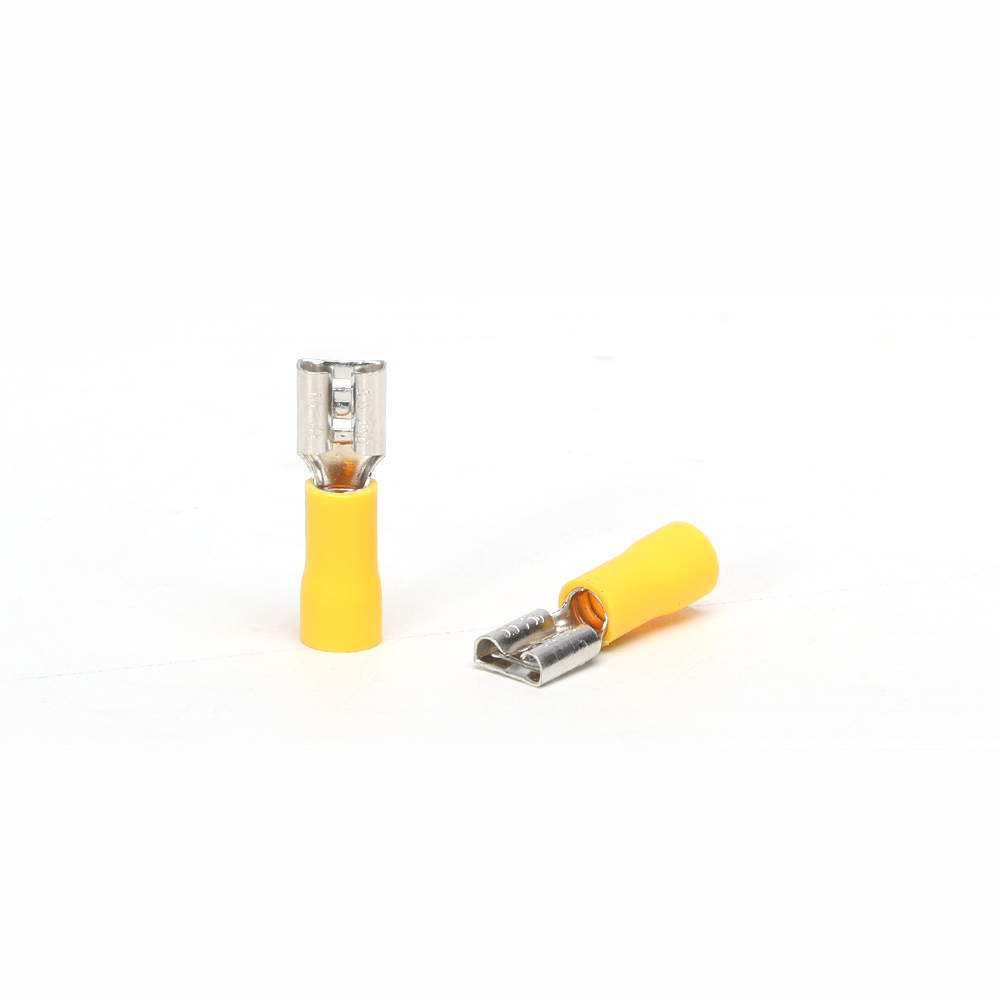

FDD 5.5 YELLOW

Vinyl-insulted female disconnector

Material:PVC+Brass

Plating:Tin

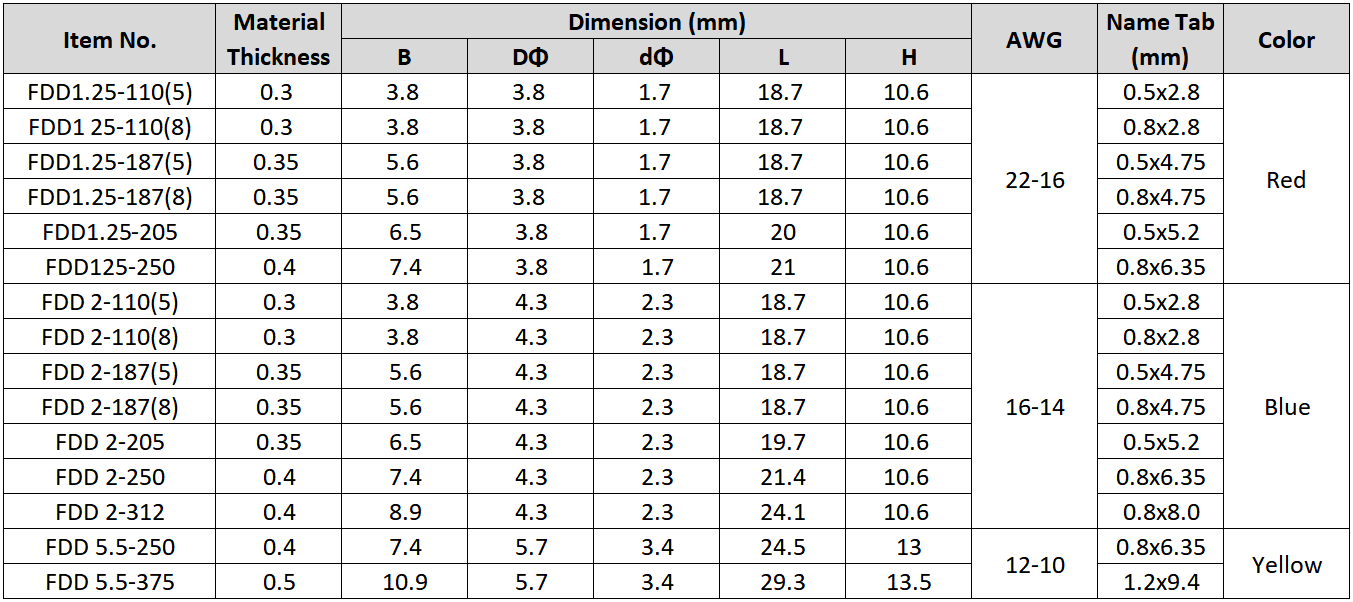

Technical Parameters

ITEM NO.	Connecting spec (mm)	Thickness of material	Dimension(mm)					AWG	Color	Explanation

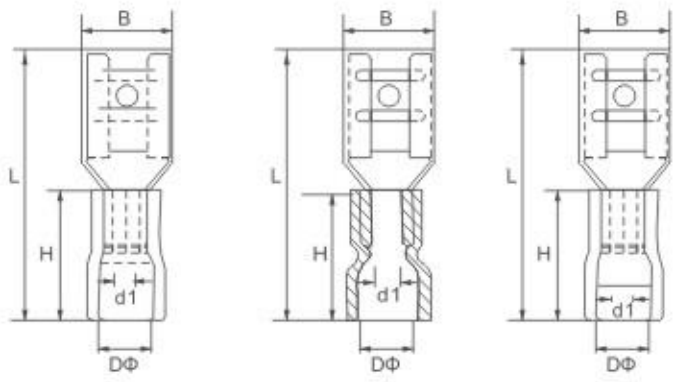

ITEM NO.	Connecting spec (mm)	Thickness of material	B	DΦ	dΦ	L	H	AWG	Color	Explanation
FDD1.25-110(5)	0.5×2.8	0.3	3.8	3.8	1.7	18.7	10.6	22-16	Red	Material:PVC+Brass Plating:Tin Note:Nylon(NFDD),Nylon+Copper sleeve(NC-FDD
FDD1.25-110(8)	0.8×2.8	0.3	3.8	3.8	1.7	18.7	10.6
FDD1.25-187(5)	0.5×4.75	0.35	5.6	3.8	1.7	18.7	10.6
FDD1.25-187(8)	0.8×4.75	0.35	5.6	3.8	1.7	18.7	10.6
FDD1.25-205	0.5×5.2	0.35	6.5	3.8	1.7	20.0	10.6
FDD1.25-250	0.8×6.35	0.4	7.4	3.8	1.7	21.0	10.6
FDD 2-110(5)	0.5×2.8	0.3	3.8	4.3	2.3	18.7	10.6	16-14	Blue
FDD 2-110(8)	0.8×2.8	0.3	3.8	4.3	2.3	18.7	10.6
FDD 2-187(5)	0.5×4.75	0.35	5.6	4.3	2.3	18.7	10.6
FDD 2-187(8)	0.8×4.75	0.35	5.6	4.3	2.3	18.7	10.6
FDD 2-205	0.5×5.2	0.35	6.5	4.3	2.3	19.7	10.6
FDD 2-250	0.8×6.35	0.4	7.4	4.3	2.3	21.4	10.6
FDD 2-312	0.8×8.0	0.4	8.9	4.3	2.3	24.1	10.6
FDD 5.5-250	0.8×6.35	0.4	7.4	5.7	3.4	24.5	13.0	12-10	Yellow
FDD 5.5-375	1.2×9.4	0.5	10.9	5.7	3.4	29.3	13.5	12-10	Yellow

×
