FRD

Vinyl fully insulted receptacle dis-connector

FRD 1.25 RED

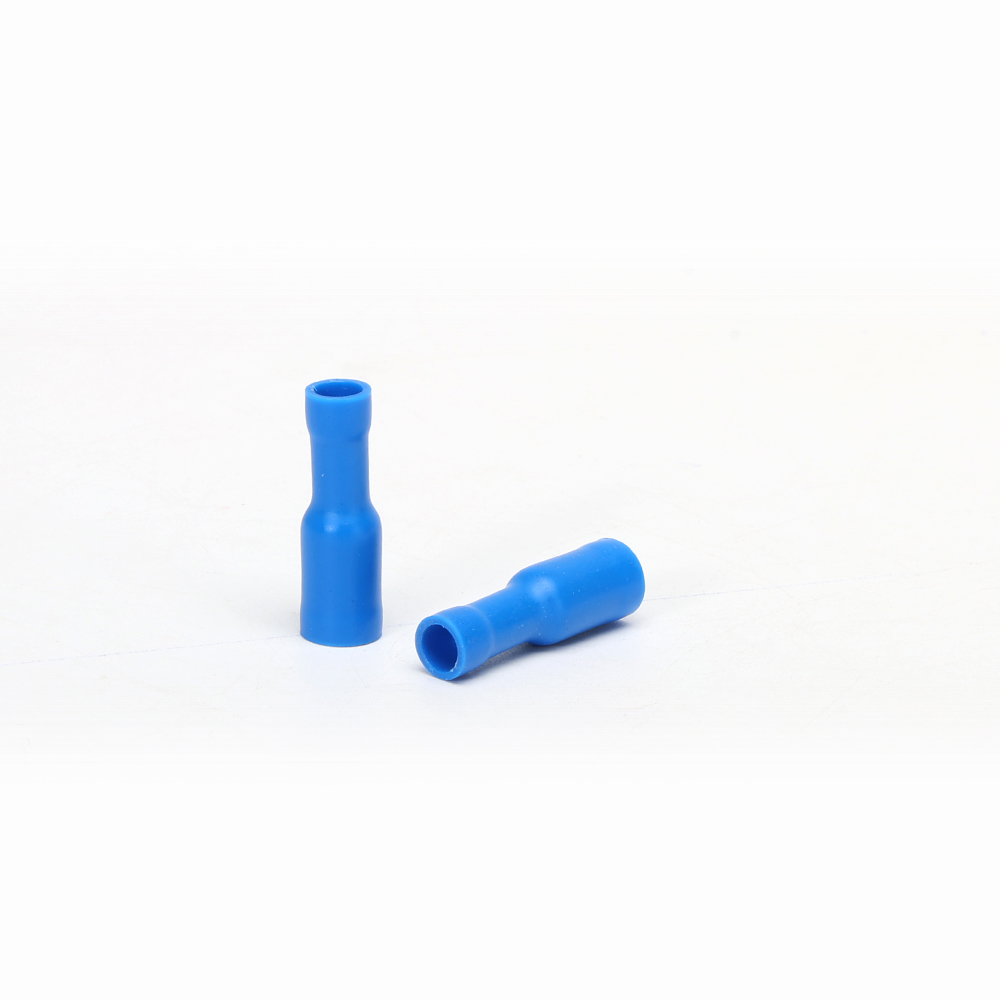

FRD 2 BLUE

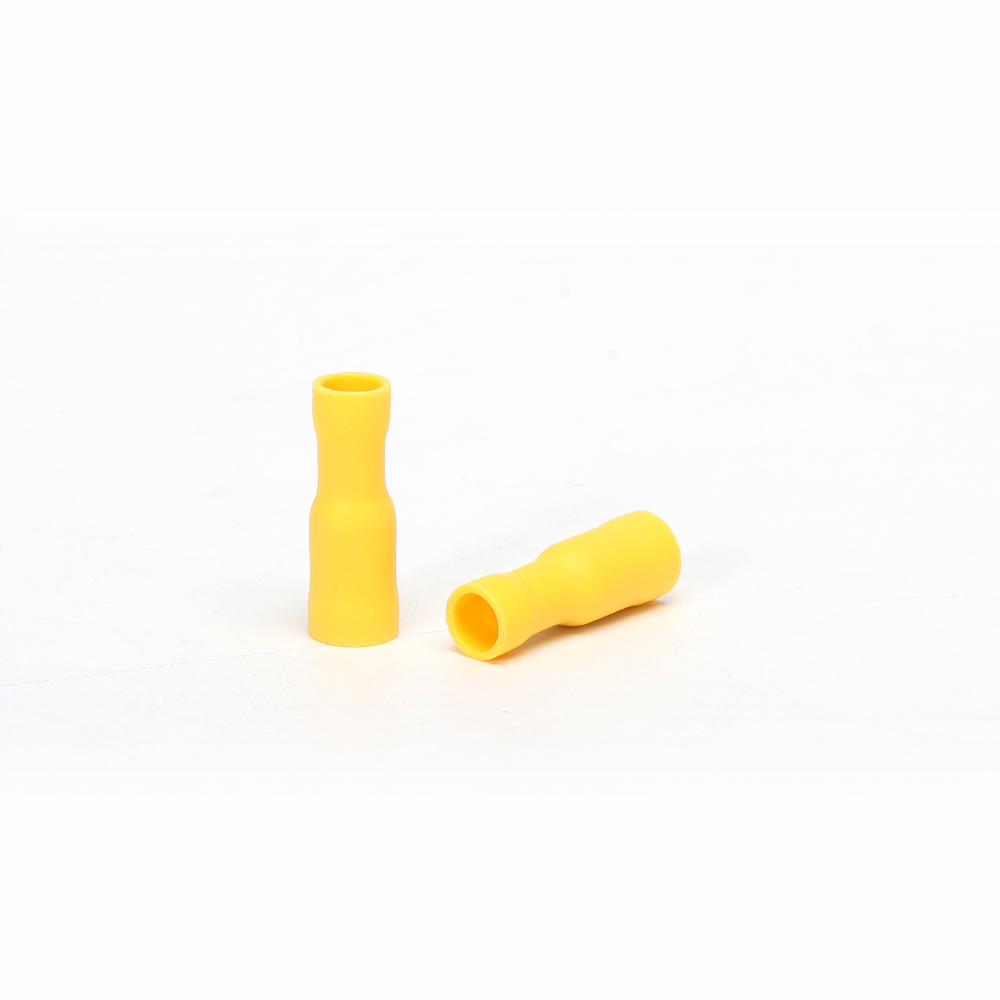

FRD 5.5 YELLOW

Vinyl fully insulted receptacle dis-connector

FRD 1.25 RED

FRD 2 BLUE

FRD 5.5 YELLOW

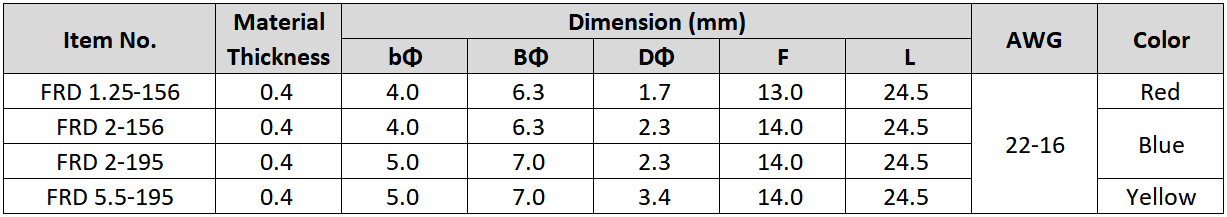

Technical Parameters

ITEM NO.	Thickness of material	Dimension(mm)					Color	AWG	Explanation
ITEM NO.	Thickness of material	bΦ	B	DΦ	F	L	Color	22-16	Cable size:0.5-1.5mm² Max current Imax=27A Material:Copper Plating:Tin
FRD 1.25-156	0.4	4.0	6.3	1.7	13.0	24.5	Red
FRD 2-156	0.4	4.0	6.3	2.3	14.0	24.5	Blue
FRD 2-195	0.4	5.0	7.0	2.3	14.0	25.5	Blue
FRD 5.5-195	0.4	5.0	7.0	3.4	14.0	24.5	Yellow
