MDD

Vinyl-insulted male disconnector

Material:PVC+Brass

Plating:Tin

MDD 1.25 RED

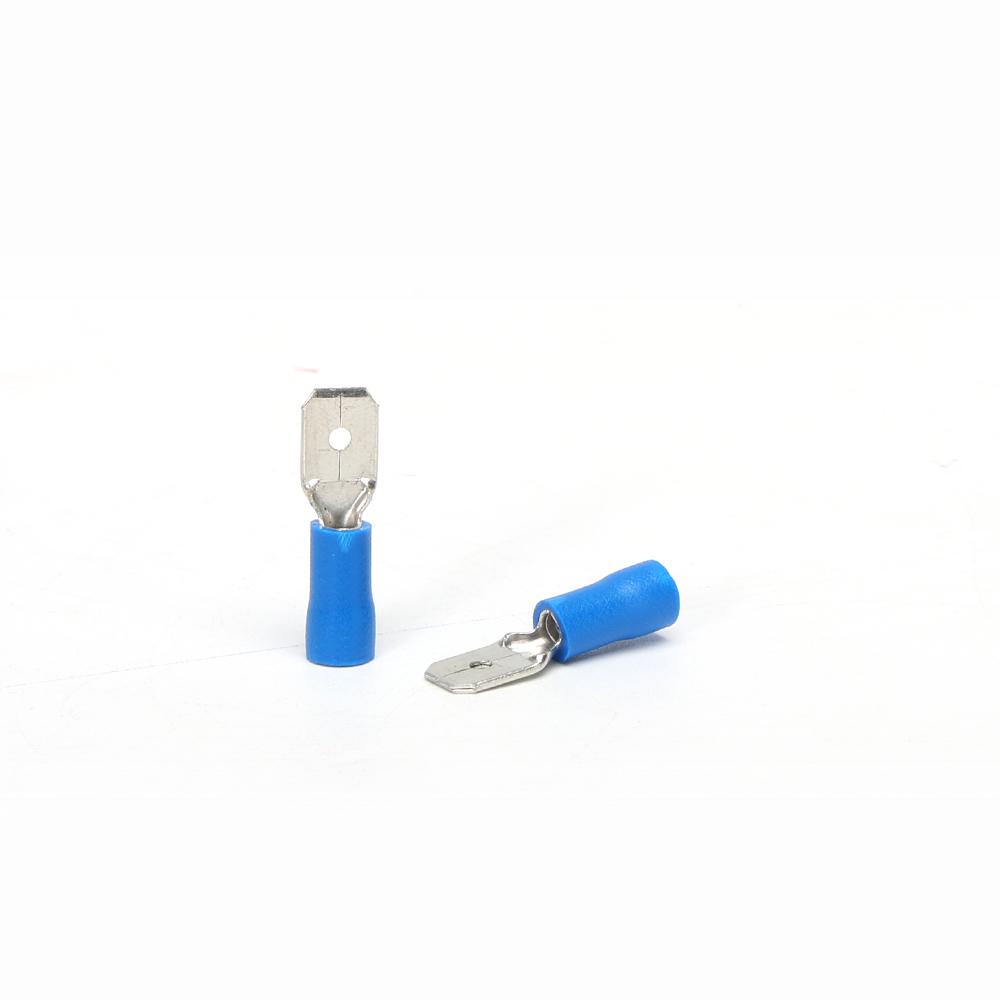

MDD 2 BLUE

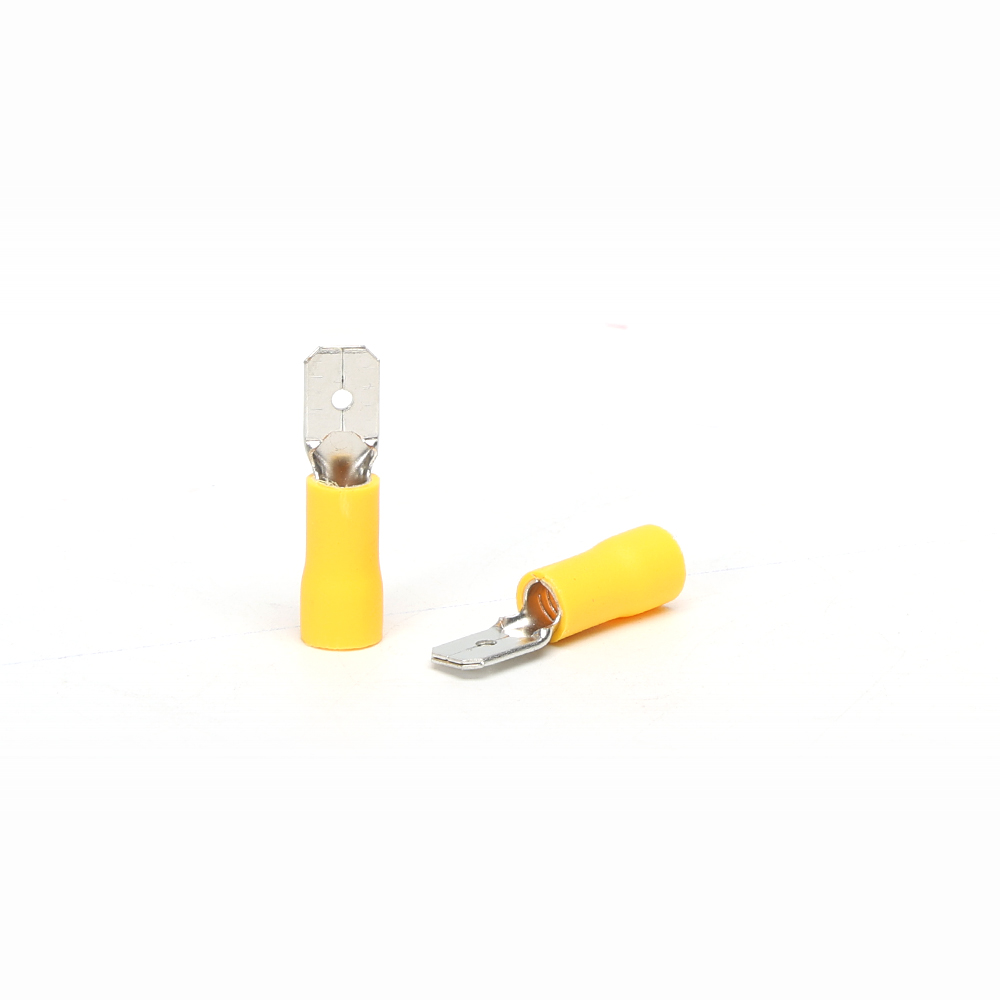

MDD 5.5 YELLOW

Vinyl-insulted male disconnector

Material:PVC+Brass

Plating:Tin

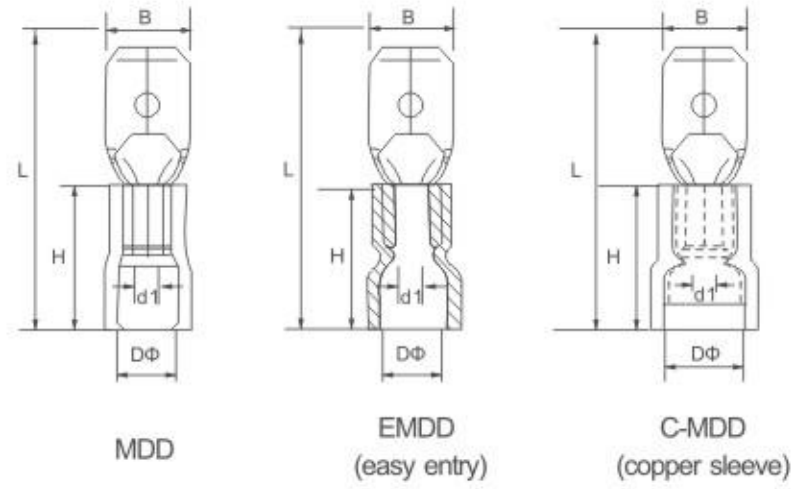

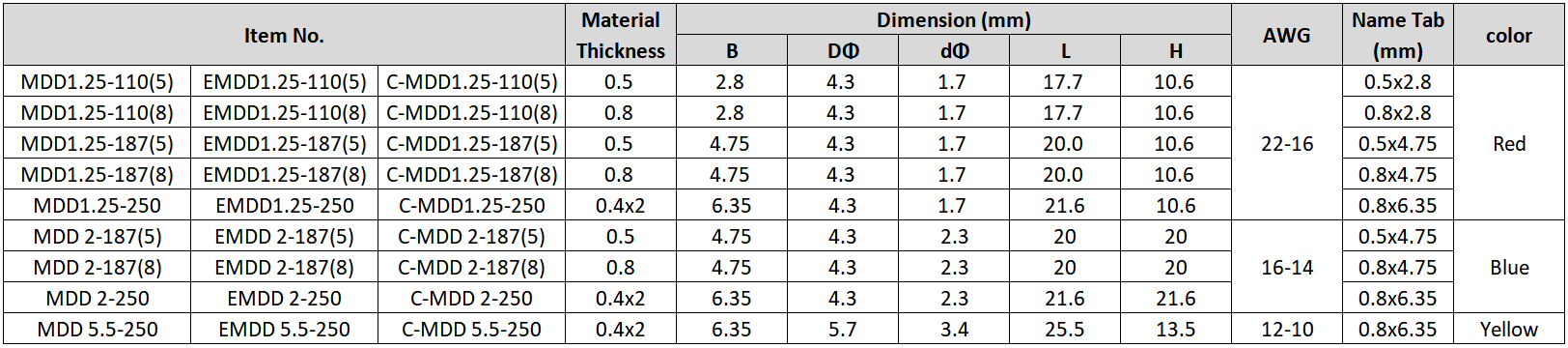

Technical Parameters

ITEM NO.			Nema Tab (mm)	Thickness of material	Dimension(mm)					AWG	Color	Explanation
ITEM NO.			Nema Tab (mm)	Thickness of material	B	DΦ	dΦ	L	H	AWG	Color	Explanation
MDD1.25-110(5)	EMDD1.25-110(5)	C-MDD1.25-110(5)	0.5×2.8	0.5	2.8	4.3	1.7	17.7	10.6	22-16	红 Red	Material:PVC+Brass Plating:Tin Note:Nomal(MDD,Easy entry(EMDD,Copper sleeve(C-MDD)
MDD1.25-110(8)	EMDD1.25-110(8)	C-MDD1.25-110(8)	0.8×2.8	0.8	2.8	4.3	1.7	17.7	10.6
MDD1.25-187(5)	EMDD1.25-187(5)	C-MDD1.25-187(5)	0.5×4.75	0.5	4.75	4.3	1.7	20.0	10.6
MDD1.25-187(8)	EMDD1.25-187(8)	C-MDD1.25-187(8)	0.8×4.75	0.8	4.75	4.3	1.7	20.0	10.6
MDD1.25-250	EMDD1.25-250	C-MDD1.25-250	0.8×6.35	0.4×2	6.35	4.3	1.7	21.6	10.6
MDD 2-187(5)	EMDD 2-187(5)	C-MDD 2-187(5)	0.5×4.75	0.5	4.75	4.3	2.3	20.0	20.0	16-14	蓝 Blue
MDD 2-187(8)	EMDD 2-187(8)	C-MDD 2-187(8)	0.8×4.75	0.8	4.75	4.3	2.3	20.0	20.0
MDD 2-250	EMDD 2-250	C-MDD 2-250	0.8×6.35	0.4×2	6.35	4.3	2.3	21.6	21.6
MDD 5.5-250	EMDD 5.5-250	C-MDD 5.5-250	0.8×6.35	0.4×2	6.35	5.7	3.4	25.5	13.5	12-10	黄 Yellow

×
