MPD

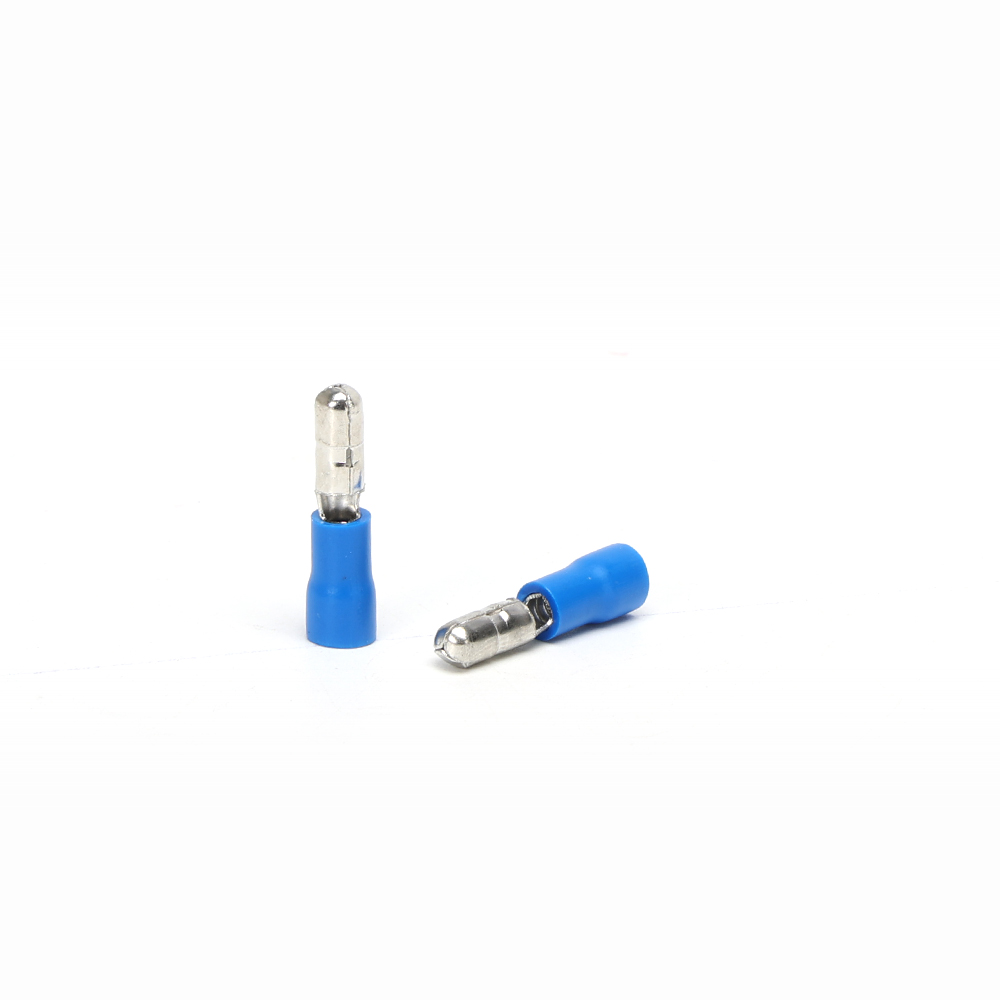

Vinyl-insulted bullet disconnector

Material:PVC+Brass

Plating:Tin

MPD 1.25 RED

MPD 2 BLUE

MPD 5.5 YELLOW

Vinyl-insulted bullet disconnector

Material:PVC+Brass

Plating:Tin

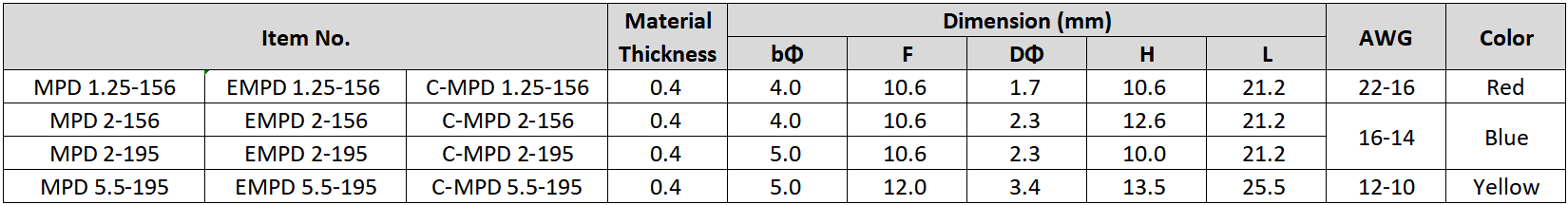

Technical Parameters

ITEM NO.			Thickness of material	Dimension(mm)					AWG	Color	Explanation

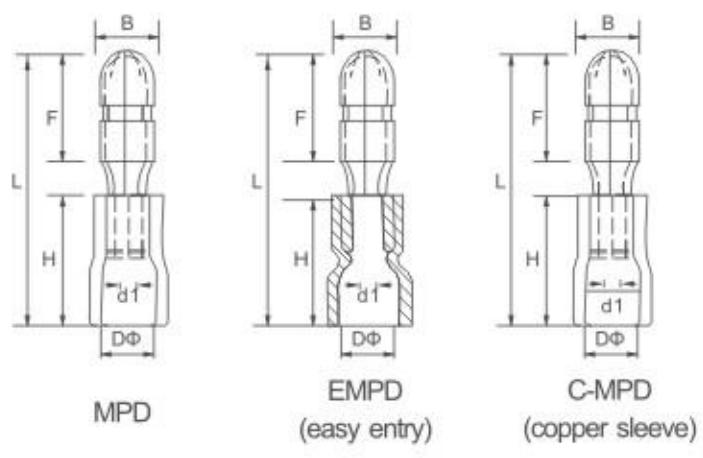

ITEM NO.			Thickness of material	bΦ	F	DΦ	H	L	AWG	Color	Explanation
MPD 1.25-156	EMPD 1.25-156	C-MPD 1.25-156	0.4	4.0	10.6	1.7	10.6	21.2	22-16	Red	Material:PVC+Brass Plating:Tin Note:Nomal(MPD),Easy entry(EMPD), Copper sleeve(C-MPD)
MPD 2-156	EMPD 2-156	C-MPD 2-156	0.4	4.0	10.6	2.3	12.6	21.2	16-14	Blue
MPD 2-195	EMPD 2-195	C-MPD 2-195	0.4	5.0	10.6	2.3	10.0	21.2	16-14	Blue
MPD 5.5-195	EMPD 5.5-195	C-MPD 5.5-195	0.4	5.0	12.0	3.4	13.5	25.5	12-10	Yellow
