PC:Working Temperature:-40℃-85℃.
ABS:Working Temperature:-20℃ to 70℃ .
PE:Working TemperatureL-40℃~65℃.
Brass, screw is iron plated zinc.
Brass, screw is iron plated zinc.
Voltage:250-450V
Color: according sample picture or customized.

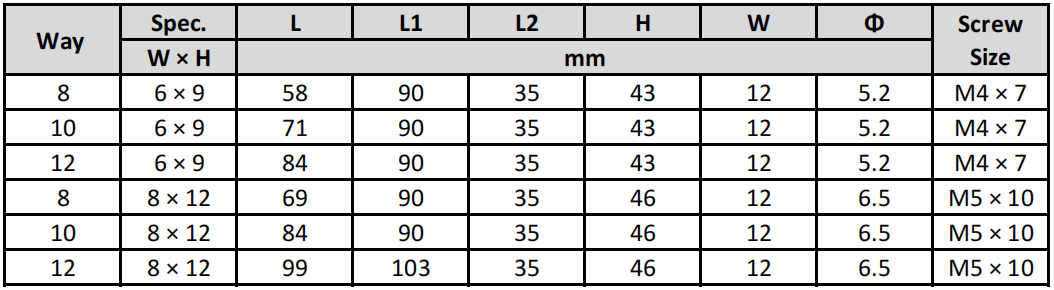

Technical Parameters

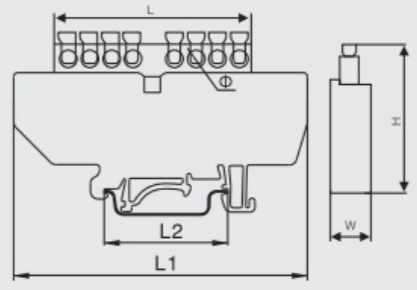

| Way | Spec. | L | L1 | L2 | H | W | φ | Screw
Size | Plastic
Setting |
| Wxh | mm |
| 8 | 6×9 | 60 | 90 | 35 | 43 | 12 | 5.2 | M4×7 | PA、ABS |
| 10 | 6×9 | 73 | 90 | 35 | 43 | 12 | 5.2 | M4×7 | PA、ABS |
| 12 | 6×9 | 86 | 90 | 35 | 43 | 12 | 5.2 | M4×7 | PA、ABS |
| 8 | 8×12 | 71 | 90 | 35 | 46 | 12 | 6.5 | M5×10 | ABS、PE |
| 10 | 8×12 | 87 | 90 | 35 | 46 | 12 | 6.5 | M5×10 | ABS、PE |
| 12 | 8×12 | 103 | 103 | 35 | 46 | 12 | 6.5 | M5×10 | ABS、PE |
