PA66:Working Temperature:-30℃-85℃.
ABS:Working Temperature:-20℃ to 70℃ .
PE:Working TemperatureL-40℃~65℃.

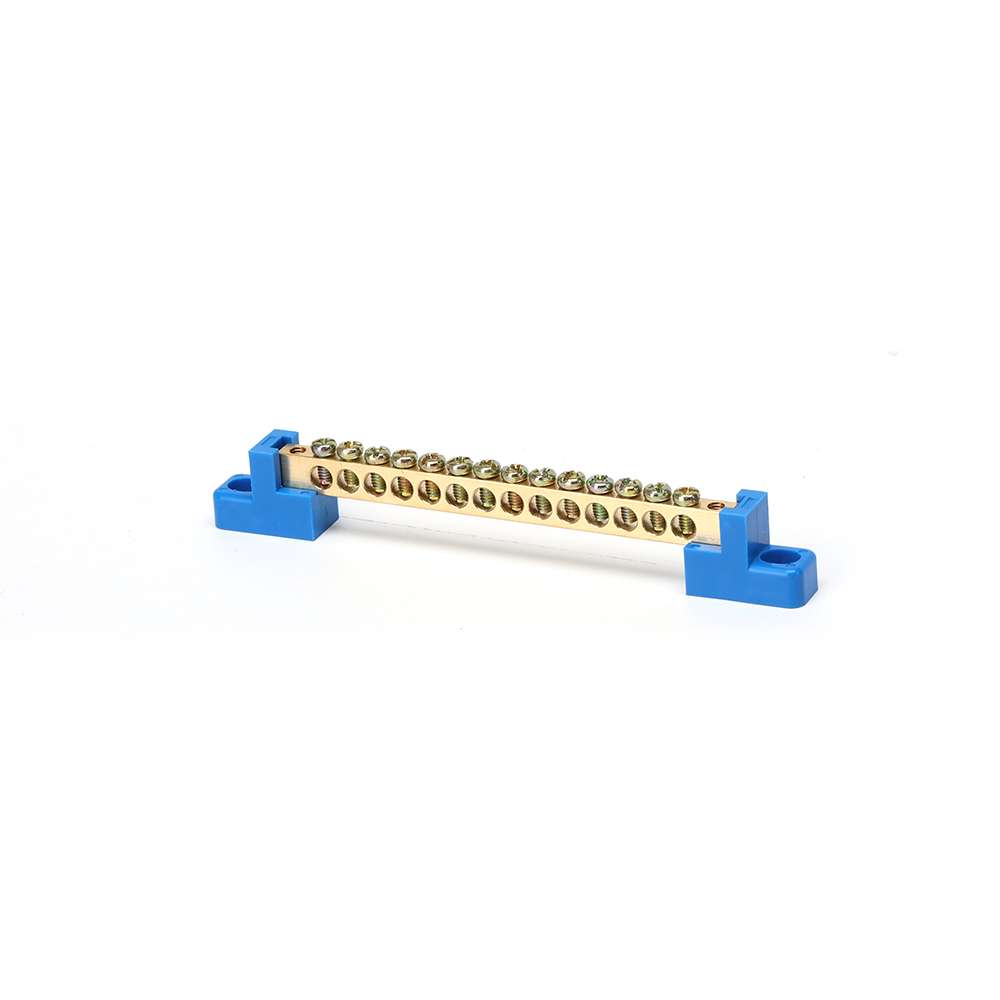

Brass, screw is iron plated zinc.
Voltage:250-450V
Color: according sample picture or customized.

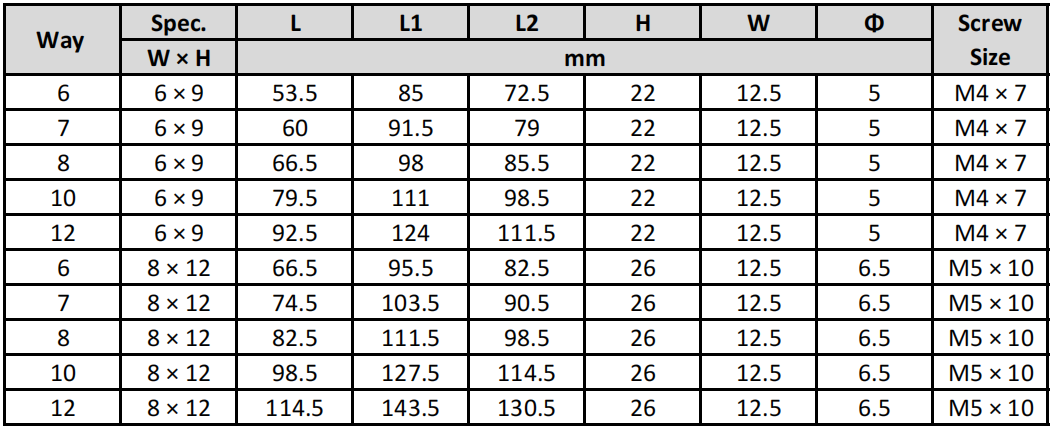

Technical Parameters

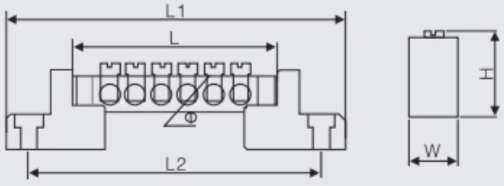

| Way | Spec. | L | L1 | L2 | H | W | φ | Screw
Size | Plastic
Setting |
| Wxh | mm |
| 6 | 6×9 | 53.5 | 85 | 72.5 | 22 | 12.5 | 5 | M4×7 | ABS、PE |
| 7 | 6×9 | 60 | 91.5 | 79 | 22 | 12.5 | 5 | M4×7 | ABS、PE |
| 8 | 6×9 | 66.5 | 98 | 85.5 | 22 | 12.5 | 5 | M4×7 | ABS、PE |
| 10 | 6×9 | 79.5 | 111 | 98.5 | 22 | 12.5 | 5 | M4×7 | ABS、PE |
| 12 | 6×9 | 92.5 | 124 | 111.5 | 22 | 12.5 | 5 | M4×7 | ABS、PE |
| 6 | 8×12 | 66.5 | 95.5 | 82.5 | 26 | 12.5 | 6.5 | M5×10 | ABS、PE |
| 7 | 8×12 | 74.5 | 103.5 | 90.5 | 26 | 12.5 | 6.5 | M5×10 | ABS、PE |
| 8 | 8×12 | 82.5 | 111.5 | 98.5 | 26 | 12.5 | 6.5 | M5×10 | ABS、PE |
| 10 | 8×12 | 98.5 | 127.5 | 114.5 | 26 | 12.5 | 6.5 | M5×10 | ABS、PE |
| 12 | 8×12 | 114.5 | 143.5 | 130.5 | 26 | 12.5 | 6.5 | M5×10 | ABS、PE |
