PA66:Working Temperature:-30℃-85℃.
ABS:Working Temperature:-20℃ to 70℃ .
PE:Working TemperatureL-40℃~65℃.
Brass, screw is iron plated zinc.
Voltage:250-450V
Color: according sample picture or customized.

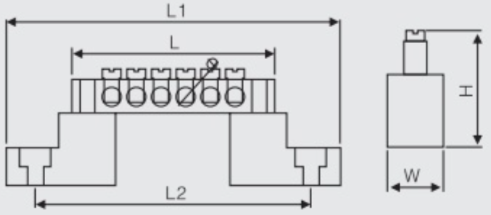

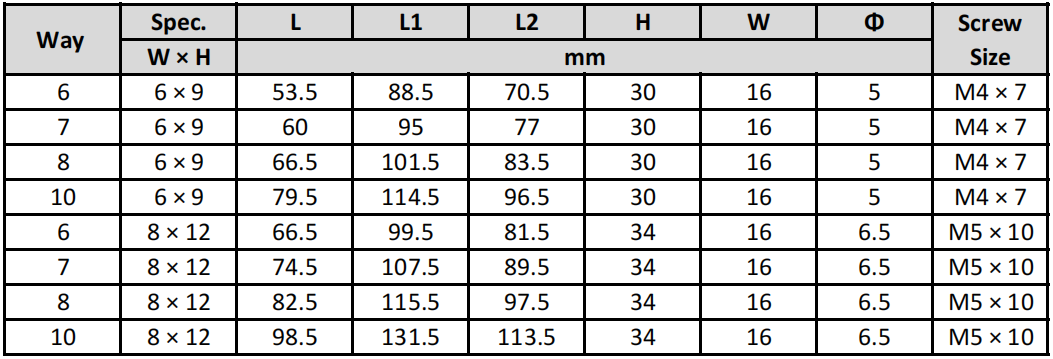

Technical Parameters
| Way | Spec. | L | L1 | L2 | H | W | φ | Screw
Size | Plastic
Setting |
| Wxh | mm |
| 6 | 6×9 | 53.5 | 88.5 | 70.5 | 30 | 16 | 5 | M4×7 | ABS、PE |
| 7 | 6×9 | 60 | 95 | 77 | 30 | 16 | 5 | M4×7 | ABS、PE |
| 8 | 6×9 | 66.5 | 101.5 | 83.5 | 30 | 16 | 5 | M4×7 | ABS、PE |
| 10 | 6×9 | 79.5 | 114.5 | 96.5 | 30 | 16 | 5 | M4×7 | ABS、PE |
| 6 | 8×12 | 66.5 | 99.5 | 81.5 | 34 | 16 | 6.5 | M5×10 | ABS、PE |
| 7 | 8×12 | 74.5 | 107.5 | 89.5 | 34 | 16 | 6.5 | M5×10 | ABS、PE |
| 8 | 8×12 | 82.5 | 115.5 | 97.5 | 34 | 16 | 6.5 | M5×10 | ABS、PE |
| 10 | 8×12 | 98.5 | 131.5 | 113.5 | 34 | 16 | 6.5 | M5×10 | ABS、PE |
