PA66:Working Temperature:-30℃-100℃.
ABS:Working Temperature:-40℃ to 85℃ .
PE:Working TemperatureL-40℃~65℃.
Brass, screw is iron plated zinc.
Voltage:250-450V
Color: according sample picture or customized.

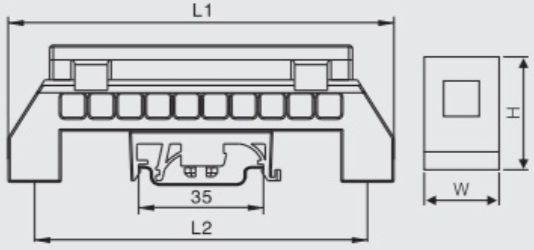

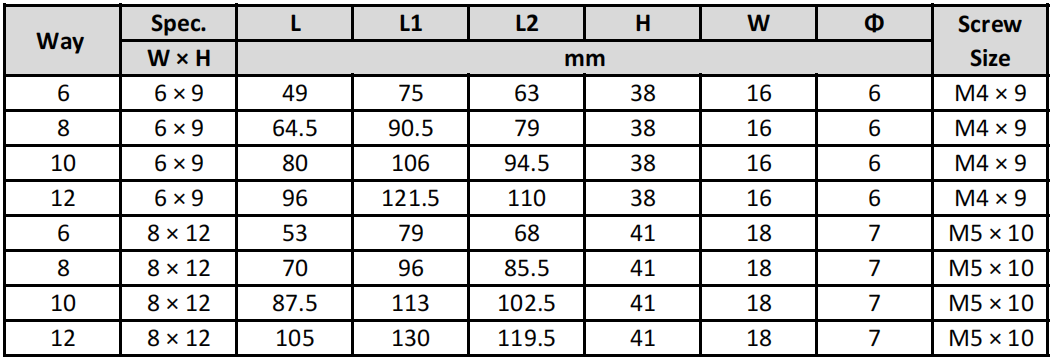

Technical Parameters
| Way | Spec. | L | L1 | L2 | H | W | ① | Screw
Size | Plastic
Setting |
| Wxh | mm |
| 6 | 6×9 | 49 | 75 | 63 | 38 | 16 | 6 | M4×9 | PC、ABS |
| 8 | 6×9 | 64.5 | 90.5 | 79 | 38 | 16 | 6 | M4×9 | PC、ABS |
| 10 | 6×9 | 80 | 106 | 94.5 | 38 | 16 | 6 | M4×9 | PC、ABS |
| 12 | 6×9 | 96 | 121.5 | 110 | 38 | 16 | 6 | M4×9 | PC、ABS |
| 6 | 8×12 | 53 | 79 | 68 | 41 | 18 | 7 | M5×10 | PC、ABS |
| 8 | 8×12 | 70 | 96 | 85.5 | 41 | 18 | 7 | M5×10 | PC、ABS |
| 10 | 8×12 | 87.5 | 113 | 102.5 | 41 | 18 | 7 | M5×10 | PC、ABS |
| 12 | 8×12 | 105 | 130 | 119.5 | 41 | 18 | 7 | M5×10 | PC、ABS |
