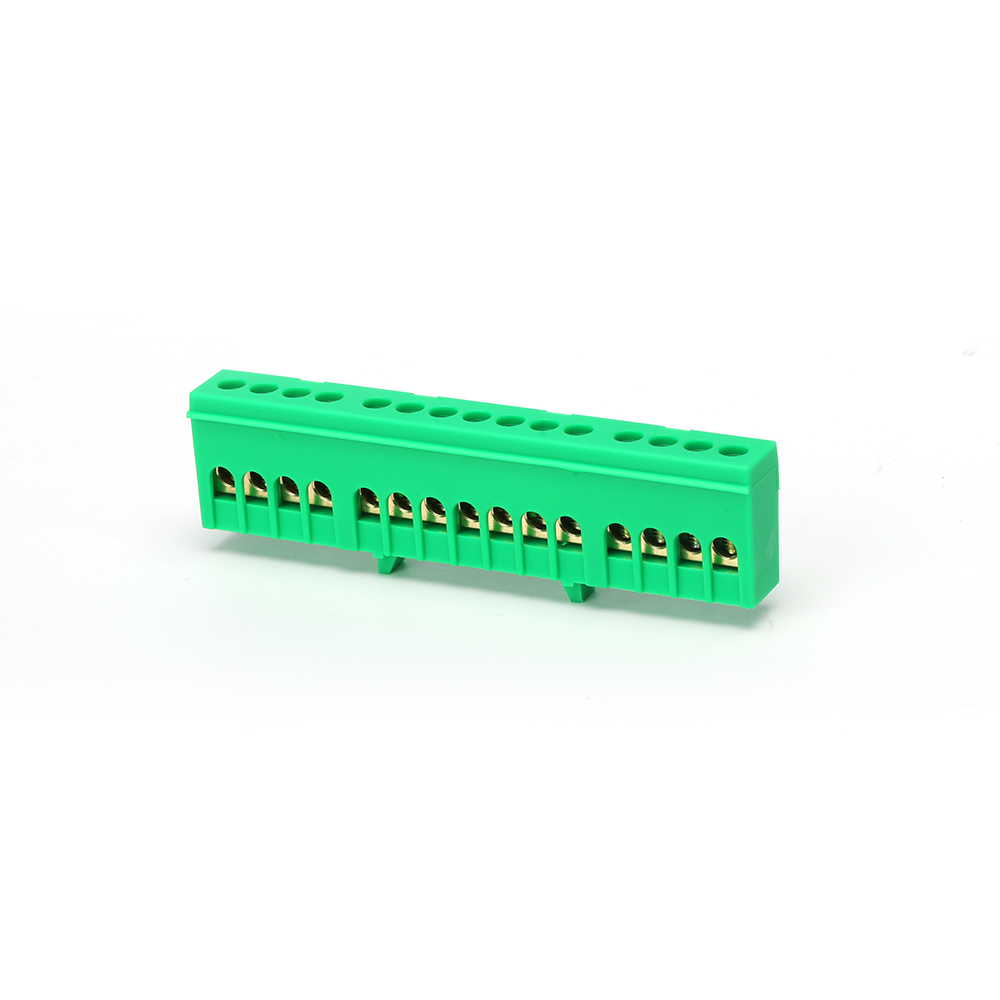

NHA09

PA66:Working Temperature:-30℃-100℃.

ABS:Working Temperature:-40℃ to 85℃ .

PE:Working TemperatureL-40℃~65℃.

Brass, screw is iron plated zinc.

Voltage:250-450V

Color: according sample picture or customized.

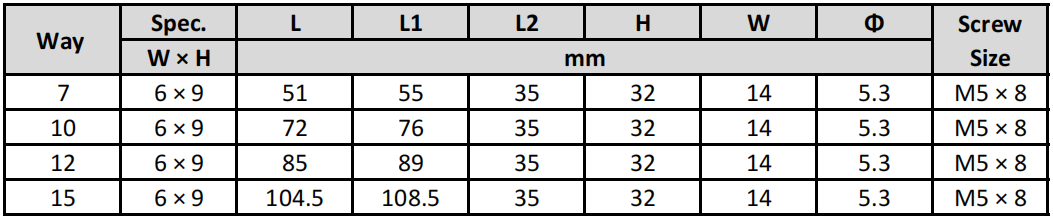

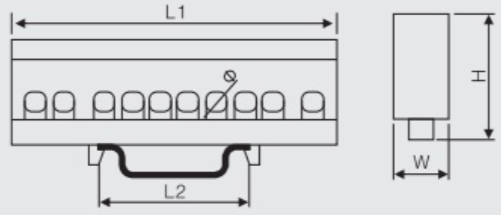

Technical Parameters

Way	Spec.	L	L1	L2	H	W	φ	Screw Size	Plastic Setting
Way	Wxh	mm						Screw Size	Plastic Setting
7	6×9	51	55	35	32	14	5.3	M5×8	PA
10	6×9	72	76	35	32	14	5.3	M5×8	PA
12	6×9	85	89	35	32	14	5.3	M5×8	PA
15	6×9	104.5	108.5	35	32	14	5.3	M5×8	PA

×
