PC:Working Temperature:-40℃- 85℃.
PA66:Working Temperature:-30℃- 100℃.
ABS:Working TemperatureL-20℃- 70℃.
Brass, screw is iron plated zinc.
Voltage:250-450V
Color: according sample picture or customized.

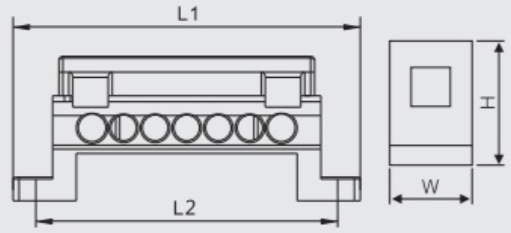

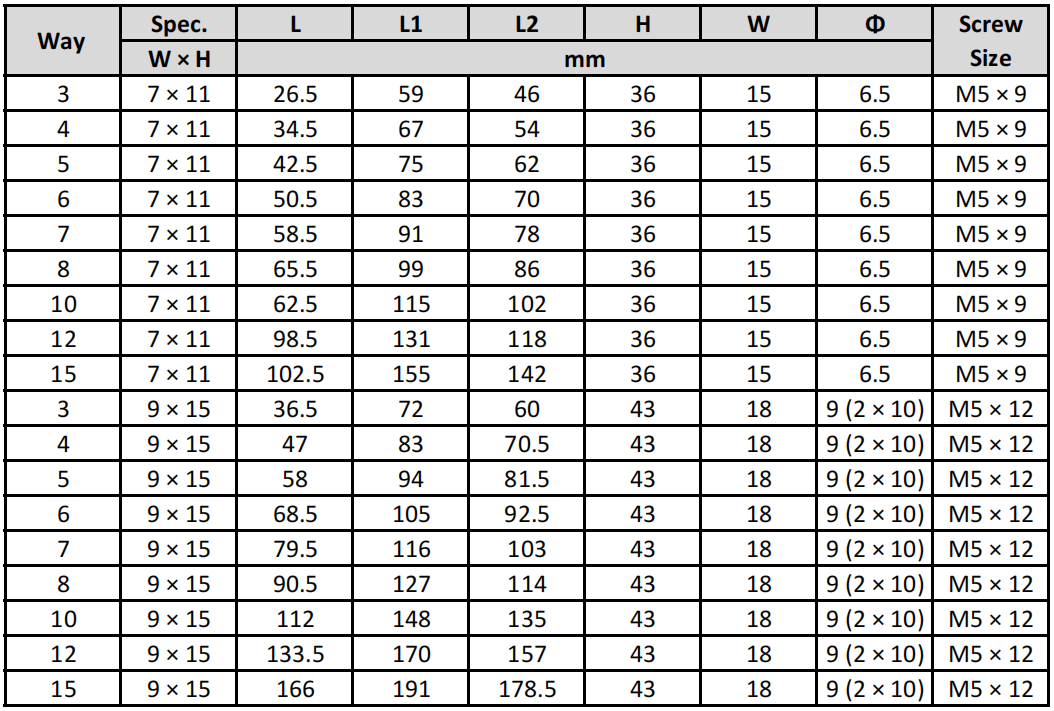

Technical Parameters
| Way | Spec. | L | L1 | L2 | H | W | Φ | Screw
Size | Plastic
Setting |
| Wxh | mm |
| 3 | X 11 | 26.5 | 56 | 46 | 36 | 15 | 6.5 | M5×9 | PC、ABS |
| 4 | 7×11 | 34.5 | 64 | 54 | 36 | 15 | 6.5 | M5×9 | PC、ABS |
| 5 | 7×11 | 42.5 | 72 | 62 | 36 | 15 | 6.5 | M5×9 | PC、ABS |
| 6 | 7×11 | 50.5 | 80 | 70 | 36 | 15 | 6.5 | M5×9 | PC、ABS |
| 7 | 7×11 | 58.5 | 88 | 78 | 36 | 15 | 6.5 | M5×9 | PC、ABS |
| 8 | 7×11 | 65.5 | 96 | 86 | 36 | 15 | 6.5 | M5×9 | PC、ABS |
| 10 | 7×11 | 62.5 | 112 | 102 | 36 | 15 | 6.5 | M5×9 | PC、ABS |
| 12 | 7×11 | 98.5 | 128 | 118 | 36 | 15 | 6.5 | M5×9 | PC、ABS |
| 15 | 7×11 | 102.5 | 152 | 142 | 36 | 15 | 6.5 | M5×9 | PC、ABS |
| 3 | 9×15 | 36.5 | 69.5 | 60 | 43 | 18 | 9(2×10) | M5×12 | PC、ABS |
| 4 | 9×15 | 47 | 80 | 70.5 | 43 | 18 | 9(2×10) | M5×12 | PC、ABS |
| 5 | 9×15 | 58 | 91 | 81.5 | 43 | 18 | 9(2×10) | M5×12 | PC、ABS |
| 6 | 9×15 | 68.5 | 102 | 92.5 | 43 | 18 | 9(2×10) | M5×12 | PC、ABS |
| 7 | 9×15 | 79.5 | 113 | 103 | 43 | 18 | 9(2×10) | M5×12 | PC、ABS |
| 8 | 9×15 | 90.5 | 124 | 114 | 43 | 18 | 9(2×10) | M5×12 | PC、ABS |
| 10 | 9×15 | 112 | 145.5 | 135 | 43 | 18 | 9(2×10) | M5×12 | PC、ABS |
| 12 | 9×15 | 133.5 | 167 | 157 | 43 | 18 | 9(2×10) | M5×12 | PC、ABS |
| 15 | 9×15 | 166 | 188.5 | 178.5 | 43 | 18 | 9(2×10) | M5×12 | PC、ABS |
