PE:Working Temperature:-40℃- 65℃.
PA66:Working Temperature:-30℃- 100℃.
ABS:Working TemperatureL-20℃- 70℃.
Brass, screw is iron plated zinc.
Voltage:250-450V
Color: according sample picture or customized.

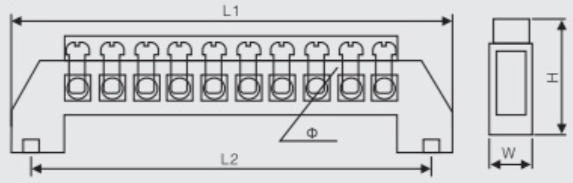

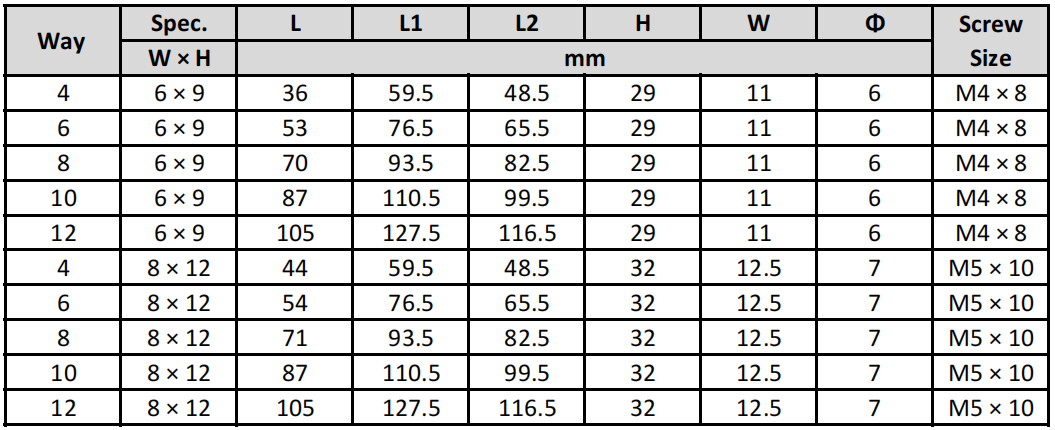

Technical Parameters
| Way | Spec. | L | L1 | L2 | H | W | φ | Screw
Size | Plastic
Setting |
| Wxh | mm |
| 4 | 6×9 | 36 | 59.5 | 48.5 | 29 | 11 | 6 | M4×8 | PA、ABS |
| 6 | 6×9 | 53 | 76.5 | 65.5 | 29 | 11 | 6 | M4×8 | PA、ABS |
| 8 | 6×9 | 70 | 93.5 | 82.5 | 29 | 11 | 6 | M4×8 | PA、ABS |
| 10 | 6×9 | 87 | 110.5 | 99.5 | 29 | 11 | 6 | M4×8 | PA、ABS |
| 12 | 6×9 | 105 | 127.5 | 116.5 | 29 | 11 | 6 | M4×8 | PA、ABS |
| 4 | 8×12 | 44 | 59.5 | 48.5 | 32 | 12.5 | 7 | M5×10 | PA、ABS |
| 6 | 8×12 | 54 | 76.5 | 65.5 | 32 | 12.5 | 7 | M5×10 | PA、ABS |
| 8 | 8×12 | 71 | 93.5 | 82.5 | 32 | 12.5 | 7 | M5×10 | PA、ABS |
| 10 | 8×12 | 87 | 110.5 | 99.5 | 32 | 12.5 | 7 | M5×10 | PA、ABS |
| 12 | 8×12 | 105 | 127.5 | 116.5 | 32 | 12.5 | 7 | M5×10 | PA、ABS |
