PA66:Working Temperature:-30℃- 100℃.
Brass, screw is iron plated zinc.
Voltage:250-450V
Color: according sample picture or customized.

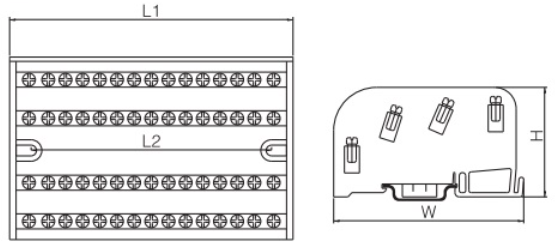

Technical Parameters
| Way | Spec. | L | L1 | L2 | H | W | φ | Screw
Size | Plastic
Setting |
| Wxh | mm |
| 4 | 6×9 | 27 | 63 | 52 | 35 | 11 | 6 | M4×9 | PA |
| 6 | 6×9 | 40 | 63 | 52 | 35 | 11 | 6 | M4×9 | PA |
| 8 | 6×9 | 53 | 76 | 65 | 35 | 11 | 6 | M4×9 | PA |
| 10 | 6×9 | 66 | 89 | 78 | 35 | 11 | 6 | M4×9 | PA |
| 12 | 6×9 | 79 | 102 | 91 | 35 | 11 | 6 | M4×9 | PA |
| 6 | 8×12 | 52 | 75 | 64 | 37 | 13 | 7 | M5×10 | PA |
| 8 | 8×12 | 69 | 92 | 81 | 37 | 13 | 7 | M5×10 | PA |
| 10 | 8×12 | 86 | 109 | 98 | 37 | 13 | 7 | M5×10 | PA |
| 12 | 8×12 | 103 | 126 | 115 | 37 | 13 | 7 | M5×10 | PA |
| 14 | 8×12 | 120 | 143 | 132 | 37 | 13 | 7 | M5×10 | PA |
| 16 | 8×12 | 137 | 161 | 150 | 37 | 13 | 7 | M5×10 | PA |
