NHC02

PA,Polyamide 66,94-2 grade, Inflaming retarding, WorkingTemperature:-300 to 110℃
Brass. Screw is iron plated zinc.
Voltage:250-450V.
Color: according sample picture or customized

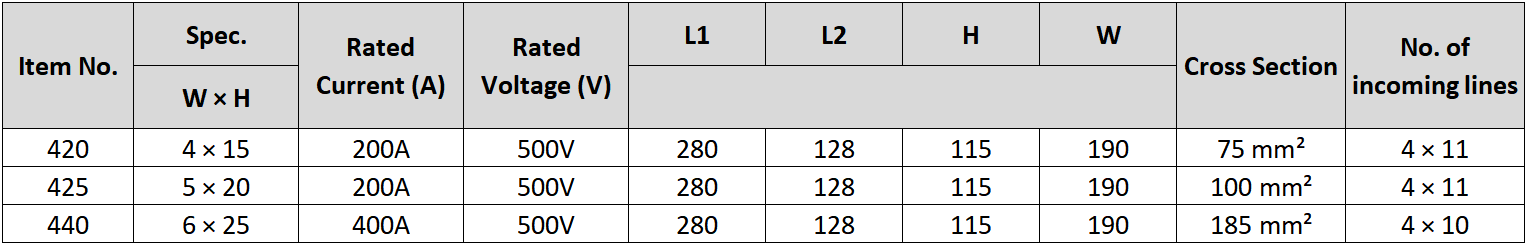

Technical Parameters

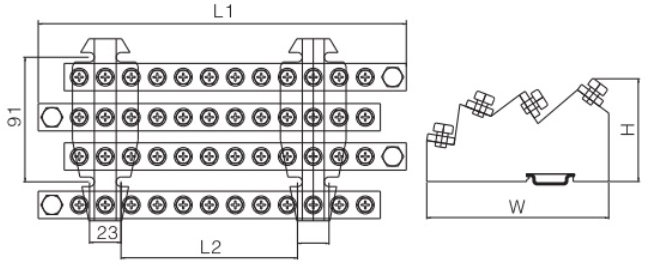

Item No.	Spec.	Rated Current(A)	Rated Voltage(V)	L1	L2	H	W	Cross Section	No.of incoming lines
Item No.	W×H	Rated Current(A)	Rated Voltage(V)	L1	L2	H	W	Cross Section	No.of incoming lines
420	4×15	200A	500V	280	128	115	190	75 mm²	4×11
425	5×20	200A	500V	280	128	115	190	100 mm²	4×11
440	6×25	400A	500V	280	128	115	190	185 mm²	4×10
