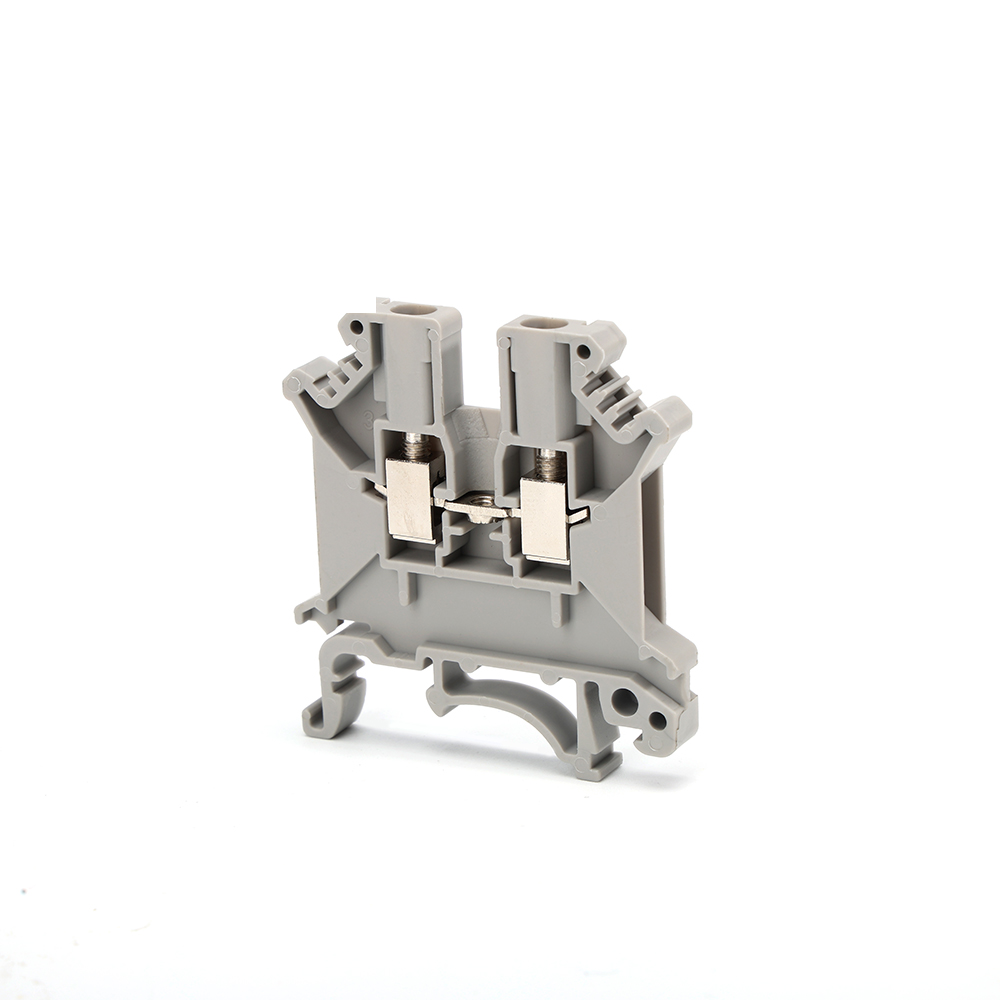

VK 3N - WENZHOU ETEK IMPORT & EXPORT CO.,LTD.
×

VK 3N

Terminal Type: Feed-through terminal block

Rated cross section (mm2): 2.5

Nominal voltage (V): 800

Nominal current (A): 24

Number of connections: 2

Potentials: 1

Product Description About Us

Dimensions:
Height x Width x Depth:42.5/5.2/46(mm)

Parameters:
Voltage Rating:800(V)
Current Rating:24(A)
Max.load curent:32 (A)

Connection data:
Stripping length:8(mm)
Wire section:2.5 (mm²)
Rigidity wire range:0.2-4 (mm²)
Soft wire range:0.2-2.5 (mm²)

×
