VKK 3

Terminal Type: Double-level terminal block

Rated cross section (mm2): 2.5

Nominal voltage (V): 500

Nominal current (A): 24

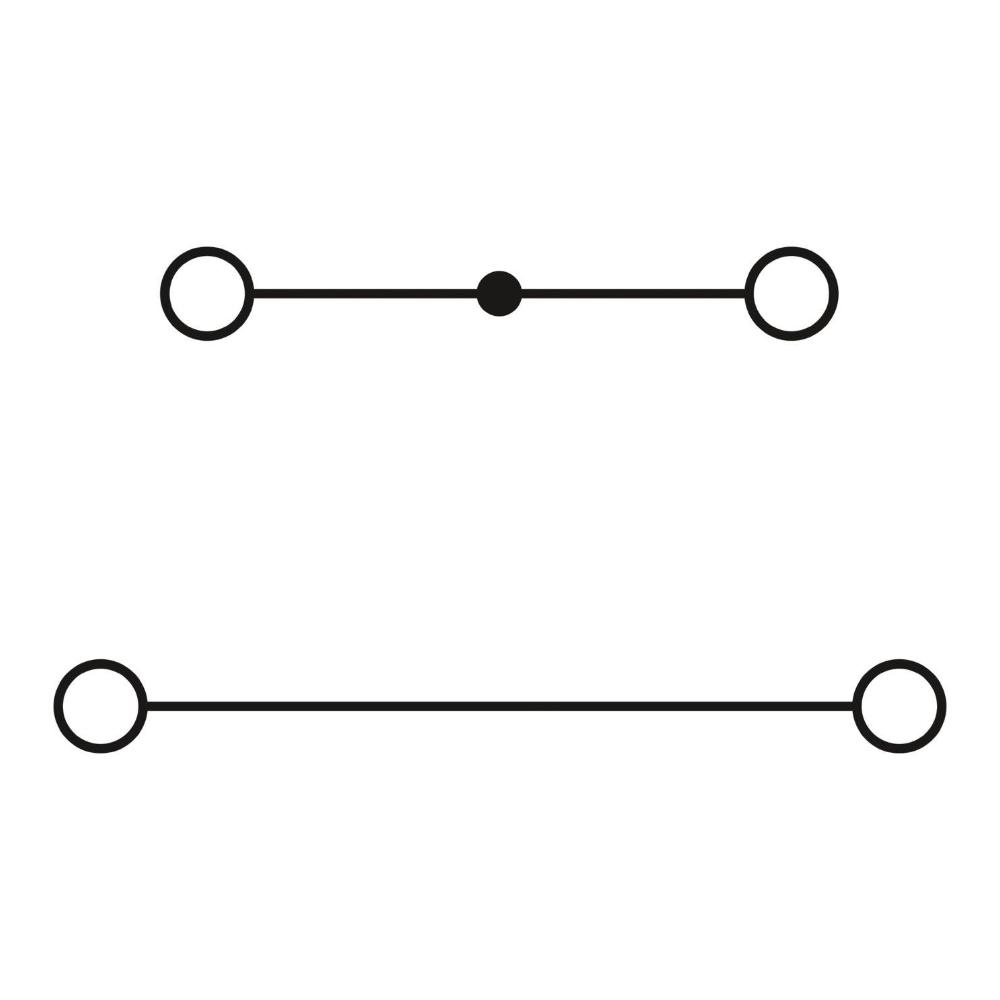

Number of connections: 4

Potentials: 2

Dimensions：
Height x Width x Depth：56.5/5.2/61（mm）

Parameters：
Voltage Rating：500（V）
Current Rating：24（A）
Max.load current：32 (A)

Connection data：
Stripping length：8（mm）
Wire section：2.5 (mm²)
Rigidity wire range：0.2-4 (mm²)
Soft wire range：0.2-2.5 (mm²)

1. End Clapboard

D-VKK3/5

DG-VKK3/5

2. Clapboard

TS-KK3

3. DIN Rails

G32-15

TH35-7.5

4. Fixed Bridge

FBI 10-5

FBI 3-5

FBI 2-5

5. Insertion Bridge

EB 10-5

EB 3-5

EB 2-5

6. Mark Tag

ZB 10-5 (Blank)

ZB 10-5 (Horizontal)

ZB 10-5 (Vertical)
