PTV

Vinyl-insulated Pin Terminal

Material: PVC+Copper

Plating: Tin

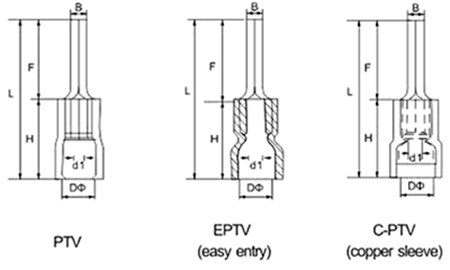

Note: Normal (PTV), Easy entry (EPTV), Copper sleeve (C-PTV)

Vinyl-insulated Pin Terminal

Material: PVC+Copper

Plating: Tin

Note: Normal (PTV), Easy entry (EPTV), Copper sleeve (C-PTV)

Technical Parameters

ITEM NO.	Conductor section		Dimension(mm)			Imax	Color	Explanation
ITEM NO.	A.W.G	mm²	I	dΦ	L	Imax	Color	Explanation
PVT 1.25	22-16	0.5-1.5	8.0	1.7	16.0	19A	R e d	Cable size:0.5-1.5mm²(AW.G22~16) Max current Imax=27A Material:Copper Plating:Tin
PVT 2	16-14	1.5-2.5	8.0	2.3	16.0	27A	B l u e
PVT 5.5	12-10	4-6	8.0	3.4	20.5	48A	Yellow
