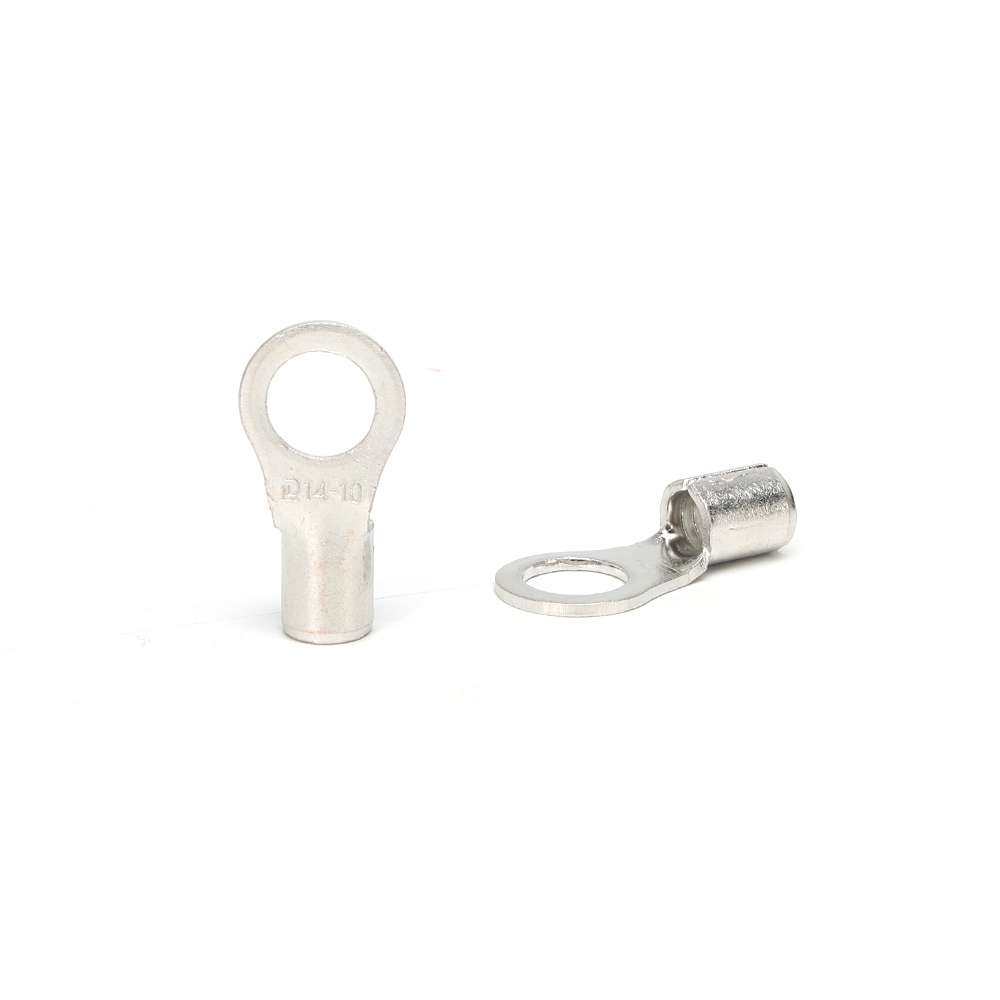

RNB 14

Ring non-insulted terminal

Cable size:10-16 mm²

Max current:88 A

Material:Copper

Ring non-insulted terminal

Cable size:10-16 mm²

Max current:88 A

Material:Copper

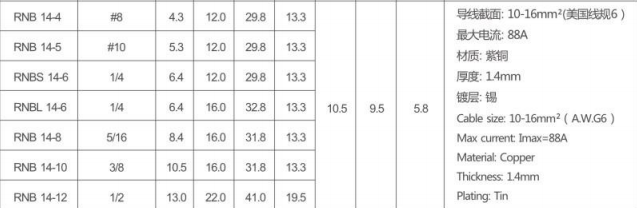

Technical Parameters

ITEM NO.	USA SCREW	d2ø (mm)	Dimension(mm)						Explanation
ITEM NO.	USA SCREW	d2ø (mm)	B	L	F	E	Dø	dø	Explanation
RNB 14-4	#8	4.3	12.0	29.8	13.3	10.5	9.5	5.8	Cable size:10-16mm²(AW.G6) Max current Imax=88A Material:Copper Thickness:1.4mm Plating:Tin
RNB 14-5	#10	5.3	12.0	29.8	13.3
RNBS 14-6	1-4	6.4	12.0	29.8	13.3
RNBL 14-6	1-4	6.4	16.0	32.8	13.3
RNB 14-8	5-16	8.4	16.0	31.8	13.3
RNB 14-10	3-8	10.5	16.0	31.8	13.3
RNB 14-12	1-2	13.0	22.0	41.0	19.5

×
