RNB 22

Ring non-insulted terminal

Cable size:16-25 mm²

Max current:115 A

Material:Copper

Ring non-insulted terminal

Cable size:16-25 mm²

Max current:115 A

Material:Copper

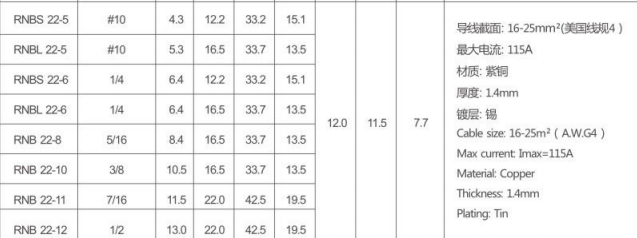

Technical Parameters

ITEM NO.	USA SCREW	d2ø (mm)	Dimension(mm)						Explanation
ITEM NO.	USA SCREW	d2ø (mm)	B	L	F	E	Dø	dø	Explanation
RNBS 22-5	#10	4.3	12.2	33.2	15.1	12.0	11.5	7.7	Cable size:16-25m²(AW.G4) Max current Imax=115A Material:Copper Thickness:1.4mm Plating:Tin
RNBL 22-5	#10	5.3	16.5	33.7	13.5
RNBS 22-6	1-4	6.4	12.2	33.2	15.1
RNBL 22-6	1-4	6.4	16.5	33.7	13.5
RNB 22-8	5-16	8.4	16.5	33.7	13.5
RNB 22-10	3-8	10.5	16.5	33.7	13.5
RNB 22-11	7/16	11.5	22.0	42.5	19.5
RNB 22-12	12	13.0	22.0	42.5	19.5

×
