RNB 80

Ring non-insulted terminal

Cable size:9

Max current:255 A

Material:Copper5-120 mm²

Ring non-insulted terminal

Cable size:9

Max current:255 A

Material:Copper5-120 mm²

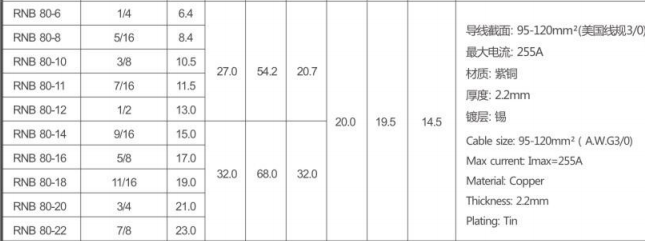

Technical Parameters

ITEM NO.	USA SCREW	d2ø (mm)	Dimension(mm)
ITEM NO.	USA SCREW	d2ø (mm)	B	L	F	E	Dø	dø	Explanation
RNB 80-6	1-4	6.4	27.0	54.2	20.7	20.0	19.5	14.5	Cable size:95-120mm²(AW.G3/0) Max curent Imax=255A Material:Copper Thickness:2.2mm Plating:Tin
RNB 80-8	5-16	8.4
RNB 80-10	3-8	10.5
RNB 80-11	7-16	11.5
RNB 80-12	1-2	13.0
RNB 80-14	9-16	15.0	32.0	68.0	32.0
RNB 80-16	5-8	17.0
RNB 80-18	11-16	19.0
RNB 80-20	3-4	21.0
RNB 80-22	7-8	23.0
