RV 2

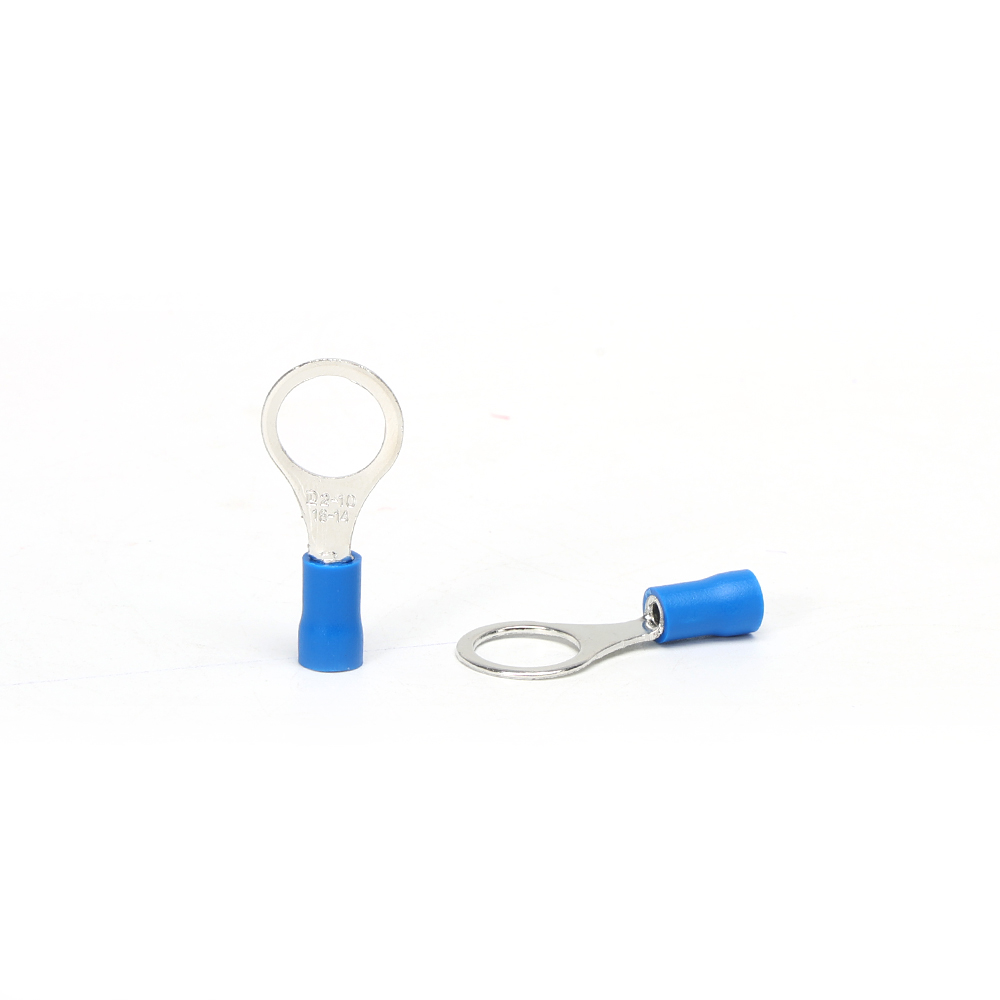

Ring vinyl-insulted terminal

Cable size:1.5-2.5 mm²

Max current:27 A

Color:Blue

C-SV: PVC+Copper

NSV: Nylon

NC-SV:Nylon + Copper

ESV: Easy Progressive Type

Ring vinyl-insulted terminal

Cable size:1.5-2.5 mm²

Max current:27 A

Color:Blue

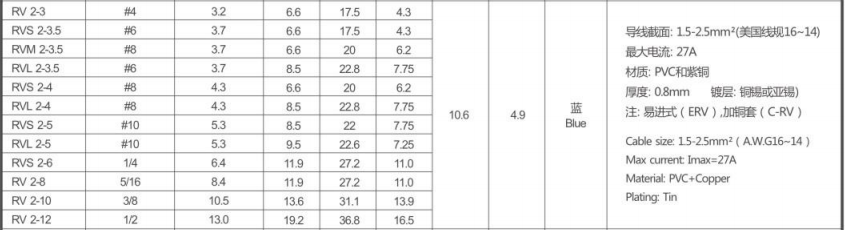

Technical Parameters

ITEM NO.				USA SCREW	Screw dia d2Φ(mm)	Dimension(mm)					Color	Explanation
ITEM NO.				USA SCREW	Screw dia d2Φ(mm)	B	L	F	H	DΦ	Color	Explanation
C-RV 2-3	ERV 2-3	NRV 2-3	NC-RV 2-3	#4	3.2	6.6	17.5	4.3	10.6	4.9	Blue	(Cable size:1.5-2.5mm²(AW.G16~14) Max curent Imax=27A Material:PVC+Copper Plating:Tin
C-RVS 2-3.5	ERVS 2-3.5	NRVS 2-3.5	NC-RVS 2-3.5	#6	3.7	6.6	17.5	4.3
C-RVM 2-3.5	ERVM 2-3.5	NRVM 2-3.5	NC-RVM 2-3.5	#8	3.7	6.6	20	6.2
C-RVL2-3.5	ERVL2-3.5	NRVL2-3.5	NC-RVL2-3.5	#6	3.7	8.5	22.8	7.75
C-RVS 2-4	ERVS 2-4	NRVS 2-4	NC-RVS 2-4	#8	4.3	6.6	20	6.2
C-RVL2-4	ERVL2-4	NRVL2-4	NC-RVL2-4	#8	4.3	8.5	22.8	7.75
C-RVS 2-5	ERVS 2-5	NRVS 2-5	NC-RVS 2-5	#10	5.3	8.5	22	7.75
C-RVL2-5	ERVL2-5	NRVL2-5	NC-RVL2-5	#10	5.3	9.5	22.6	7.25
C-RVS 2-6	ERVS 2-6	NRVS 2-6	NC-RVS 2-6	1-4	6.4	11.9	27.2	11.0
C-RV 2-8	ERV 2-8	NRV 2-8	NC-RV2-8	5-16	8.4	11.9	27.2	11.0
C-RV 2-10	ERV 2-10	NRV 2-10	NC-RV 2-10	3-8	10.5	13.6	31.1	13.9
C-RV 2-12	ERV 2-12	NRV 2-12	NC-RV2-12	1-2	13.0	19.2	36.8	16.5

×
