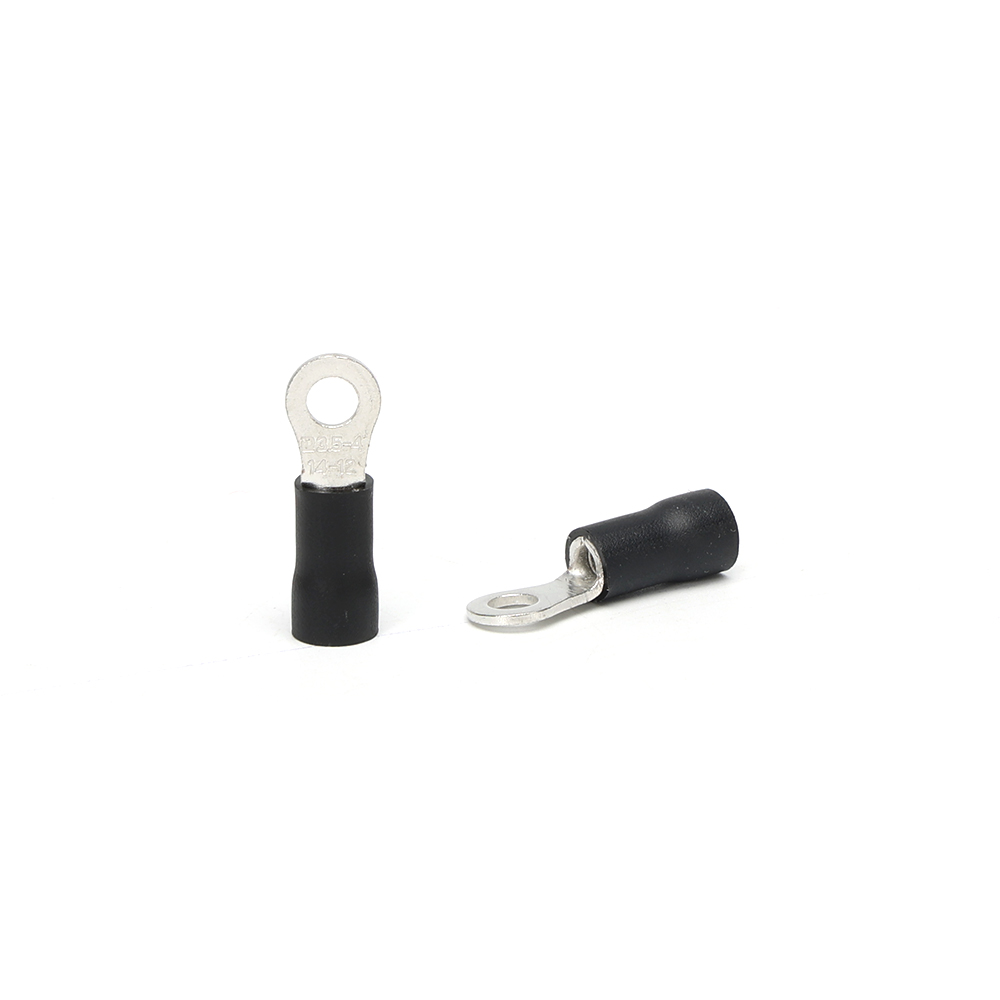

RV 3.5

Ring vinyl-insulted terminal

Cable size:2.5-4 mm²

Max current:37 A

Color:Black

C-SV: PVC+Copper

NSV: Nylon

NC-SV:Nylon + Copper

ESV: Easy Progressive Type

Ring vinyl-insulted terminal

Cable size:2.5-4 mm²

Max current:37 A

Color:Black

Technical Parameters

ITEM NO.		USA SCREW	Screw dia d2Φ(mm)	Dimension(mm)					Color	Explanation
ITEM NO.		USA SCREW	Screw dia d2Φ(mm)	B	L	F	H	DΦ	Color	Explanation
C-RV 3.5-4	ERV 3.5-4	#8	4.3	8.0	24.5	7.7	13.5	6.2	Black	Cable size:2.5-4mm²(A.W.G14-12) Max curent Imax=37A Material:PVC+Copper Plating:Tin
C-RVS 3.5-5	ERVS 3.5-5	#10	5.3	8.0	24.5	7.7
C-RVL 3.5-5	ERVL3.5-5	#10	5.3	12.0	29	7.7
C-RV 3.5-6	ERV 3.5-6	1-4	6.4	12.0	29	7.7
