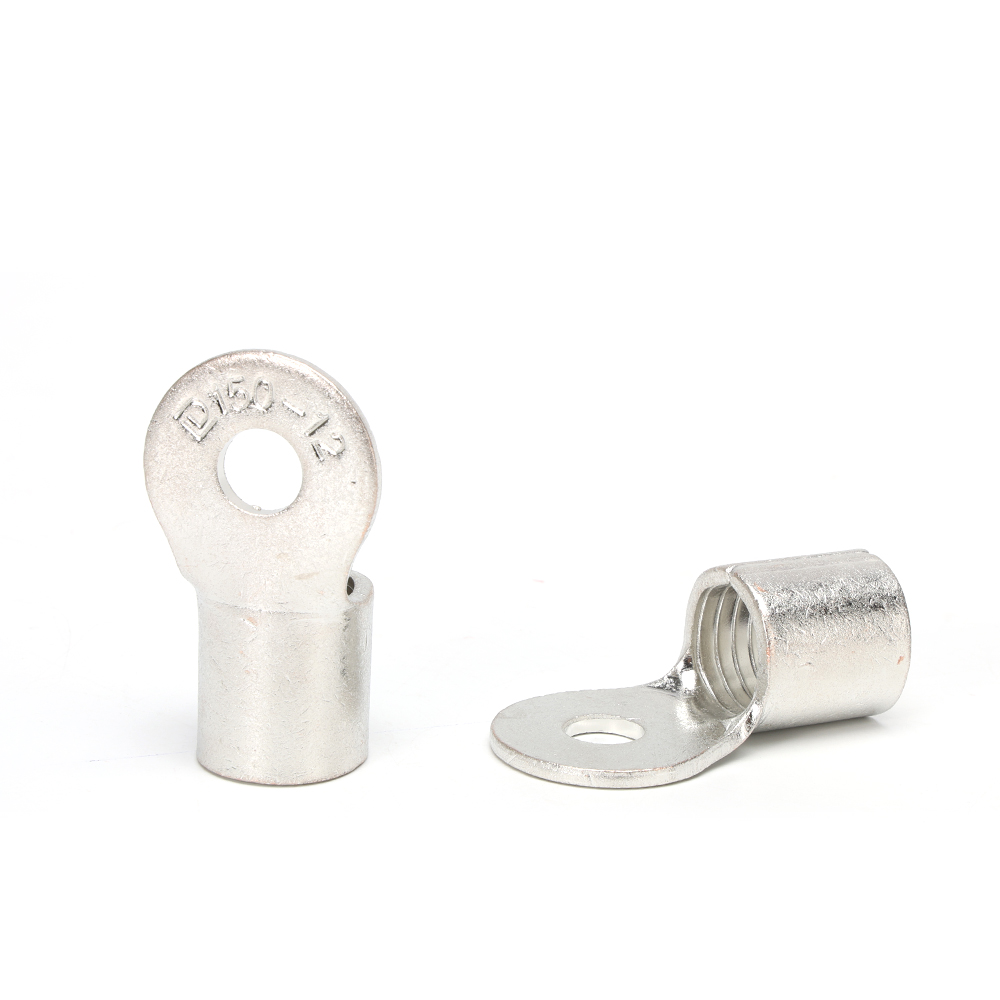

RNB 150

Ring non-insulted terminal

Cable size:150-185 mm²

Max current:395 A

Material:Copper

Ring non-insulted terminal

Cable size:150-185 mm²

Max current:395 A

Material:Copper

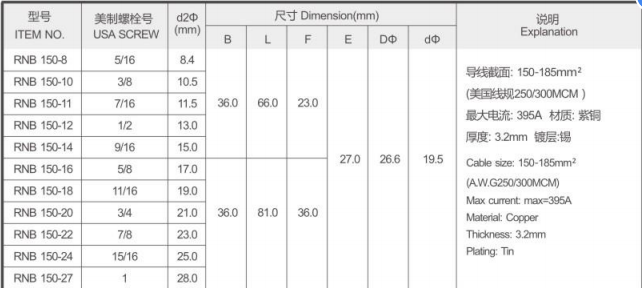

Technical Parameters

ITEM NO.	USA SCREW	d2ø (mm)	Dimension(mm)						Explanation
ITEM NO.	USA SCREW	d2ø (mm)	B	L	F	E	Dø	dø	Explanation
RNB 150-8	5/16	8.4	36.0	66.0	23.0	27	26.6	19.5	Cable size:150-185mm² (AW.G250/300MCM) Max curent max=395A Material:Copper Thicknes:3.2mm Plating:Tn
RNB 150-10	3-8	10.5
RNB 150-11	7-16	11.5
RNB 150-12	1-2	13.0
RNB 150-14	9-16	15.0
RNB 150-16	5-8	17.0	36.0	81.0	36.0
RNB 150-18	11-16	19.0
RNB 150-20	3-4	21.0
RNB 150-22	7-8	23.0
RNB 150-24	15/16	25.0
RNB 150-27	1	28.0
