RNB 8

Ring non-insulted terminal

Cable size:6-10 mm²

Max current:62 A

Material:Copper

Ring non-insulted terminal

Cable size:6-10 mm²

Max current:62 A

Material:Copper

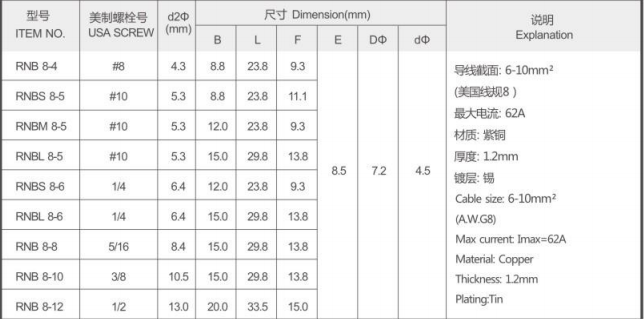

Technical Parameters

ITEM NO.	USA SCREW	d2ø (mm)	Dimension(mm)						Explanation
ITEM NO.	USA SCREW	d2ø (mm)	B	L	F	E	Dø	dø	Explanation
RNB 8-4	#8	4.3	8.8	23.8	9.3	8.5	7.2	4.5	Cable size:6-10mm² (AW.G8) Max current Imax=62A Material:Copper Thickness:1.2mm Plating:Tin
RNBS 8-5	#10	5.3	8.8	23.8	11.1
RNBM 8-5	#10	5.3	12.0	23.8	9.3
RNBL8-5	#10	5.3	15.0	29.8	13.8
RNBS 8-6	1-4	6.4	12.0	23.8	9.3
RNBL8-6	1-4	6.4	15.0	29.8	13.8
RNB 8-8	5-16	8.4	15.0	29.8	13.8
RNB 8-10	3-8	10.5	15.0	29.8	13.8
RNB 8-12	1-2	13.0	20.0	33.5	15.0

×
