RV 1.25

Ring vinyl-insulted terminal

Cable size:0.5-1.5 mm²

Max current:19 A

Color:Red

C-SV: PVC+Copper

NSV: Nylon

NC-SV:Nylon + Copper

ESV: Easy Progressive Type

Ring vinyl-insulted terminal

Cable size:0.5-1.5 mm²

Max current:19 A

Color:Red

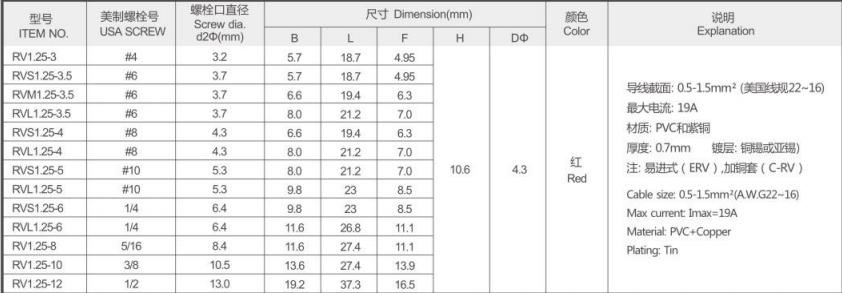

Technical Parameters

ITEM NO.				USA SCREW	Screw dia d2Φ(mm)	Dimension(mm)					Color	Explanation
ITEM NO.				USA SCREW	Screw dia d2Φ(mm)	B	L	F	H	DΦ	Color	Explanation
C-RV1.25-3	ERV1.25-3	NRV1.25-3	NC-RV1.25-3	#4	3.2	5.7	18.7	4.95	10.6	4.3	Red	Cable size:0.5-1.5mm²(A.W.G22~16) Max curent Imax=19A Material:PVC+Copper Plating:Tin
C-RVS1.25-3.5	ERVS1.25-3.5	NRVS1.25-3.5	NC-RVS1.25-3.5	#6	3.7	5.7	18.7	4.95
C-RVM1.25-3.5	ERVM1.25-3.5	NRVM1.25-3.5	NC-RVM1.25-3.5	#6	3.7	6.6	19.4	6.3
C-RVL1.25-3.5	ERVL1.25-3.5	NRVL1.25-3.5	NC-RVL1.25-3.5	#6	3.7	8.0	21.2	7.0
C-RVS1.25-4	ERVS1.25-4	NRVS1.25-4	NC-RVS1.25-4	#8	4.3	6.6	19.4	6.3
C-RVL1.25-4	ERVL1.25-4	NRVL1.254	NC-RVL1.25-4	#8	4.3	8.0	21.2	7.0
C-RVS1.25-5	ERVS1.25-5	NRVS1.25-5	NC-RVS1.25-5	#10	5.3	8.0	21.2	7.0
C-RVL1.25-5	ERVL1.25-5	NRVL1.25-5	NC-RVL1.25-5	#10	5.3	9.8	23	8.5
C-RVS1.25-6	ERVS1.25-6	NRVS1.25-6	NC-RVS1.25-6	1-4	6.4	9.8	23	8.5
C-RVL1.25-6	ERVL1.25-6	NRVL1.25-6	NC-RVL1.25-6	1-4	6.4	11.6	26.8	11.1
C-RV1.25-8	ERV1.25-8	NRV1.25-8	NC-RV1.25-8	5-16	8.4	11.6	27.4	11.1
C-RV1.25-10	ERV1.25-10	NRV1.25-10	NC-RV1.25-10	3-8	10.5	13.6	27.4	13.9
C-RV1.25-12	ERV1.25-12	NRV1.25-12	NC-RV1.25-12	1-2	13.0	19.2	37.3	16.5

×
