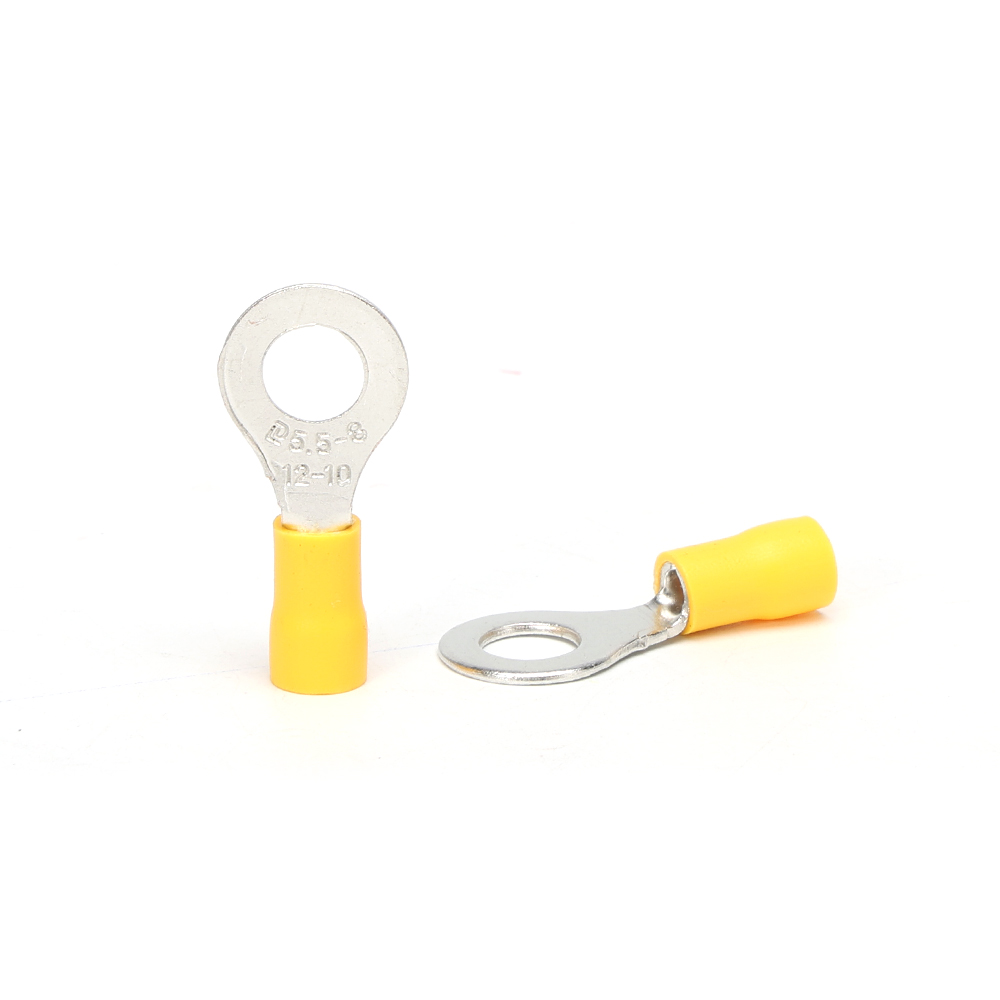

RV 5.5

Ring vinyl-insulted terminal

Cable size:4-6 mm²

Max current:48 A

Color:Yellow

C-SV: PVC+Copper

NSV: Nylon

NC-SV:Nylon + Copper

ESV: Easy Progressive Type

Ring vinyl-insulted terminal

Cable size:4-6 mm²

Max current:48 A

Color:Yellow

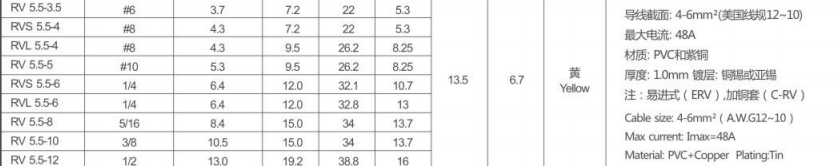

Technical Parameters

ITEM NO.				USA SCREW	Screw dia d2Φ(mm)	Dimension(mm)					Color	Explanation
ITEM NO.				USA SCREW	Screw dia d2Φ(mm)	B	L	F	H	DΦ	Color	Explanation
C-RV 5.5-3.5	ERV5.5-3.5	NRV 5.5-3.5	NC-RV5.5-3.5	#6	3.7	7.2	22	5.3	13.5	6.7	Yellow	Cable size:4-6mm²(AW.G12~10) Max current Imax=48A Material:PVC+Copper Plating:Tin
C-RVS 5.5-4	ERVS 5.5-4	NRVS 5.5-4	NC-RVS 5.54	#8	4.3	7.2	22	5.3
C-RVL 5.5-4	ERVL5.5-4	NRVL 5.5-4	NC-RVL5.5-4	#8	4.3	9.5	26.2	8.25
C-RV 5.5-5	ERV 5.5-5	NRV 5.5-5	NC-RV 5.5-5	#10	5.3	9.5	26.2	8.25
C-RVS 5.5-6	ERVS 5.5-6	NRVS 5.5-6	NC-RVS 5.5-6	1-4	6.4	12.0	32.1	10.7
C-RVL 5.5-6	ERVL5.5-6	NRVL 5.5-6	NC-RVL5.5-6	1-4	6.4	12.0	32.8	13
C-RV 5.5-8	ERV 5.5-8	NRV 5.5-8	NC-RV 5.5-8	5-16	8.4	15.0	34	13.7
C-RV 5.5-10	ERV 5.5-10	NRV 5.5-10	NC-RV 5.5-10	3-8	10.5	15.0	34	13.7
C-RV 5.5-12	ERV 5.5-12	NRV 5.5-12	NC-RV 5.5-12	1-2	13.0	19.2	38.8	16
