How Crimp Terminal Manufacturers Improve Production Efficiency

Sep 24, 2026

In modern electrical manufacturing, production efficiency plays an important role in product quality, delivery time, and overall manufacturing competitiveness. For companies that require reliable electrical connection components, selecting an experienced Crimp Terminal Manufacturer helps ensure stable production capacity and consistent product performance.

Crimp terminals are widely used in automotive wiring systems, industrial control equipment, power distribution systems, and electronic assemblies. Manufacturing these components requires precise stamping, accurate forming, efficient crimping processes, and strict quality control to meet different application requirements.

A professional Electrical Terminal Manufacturer improves production efficiency by optimizing the Terminal Crimping Process, introducing automated equipment, reducing material waste, and applying advanced inspection technologies. These improvements allow manufacturers to produce high-quality Electrical Crimp Terminals with stable performance and reliable delivery capabilities.

This article explains how modern crimp terminal manufacturers improve production efficiency and the technologies they use to optimize manufacturing processes.

Table of Contents

2. How Crimp Terminal Manufacturers Improve Production Efficiency

2.1 Optimizing The Terminal Crimping Process

The Terminal Crimping Process is one of the most important production stages in electrical terminal manufacturing. A properly optimized crimping process ensures strong mechanical connections and stable electrical conductivity while improving production consistency.

Professional manufacturers improve crimping efficiency by controlling several important factors, including:

Crimping force and pressure settings
Terminal positioning accuracy
Wire stripping consistency
Crimping tool performance
Production parameter monitoring

Modern crimping equipment allows manufacturers to maintain stable processing conditions and reduce variations between different production batches. Automated parameter control also helps operators quickly identify production issues and improve manufacturing efficiency.

By continuously optimizing the crimping process, a reliable Crimp Terminal Manufacturer can increase production speed while maintaining consistent product quality.

2.2 Using Automated Equipment To Increase Manufacturing Speed

Automation is a key factor that helps modern terminal manufacturers improve production efficiency. Compared with traditional manual operations, automated production equipment can increase processing speed, reduce labor requirements, and improve manufacturing consistency.

Common automated technologies used by professional manufacturers include:

Automatic material feeding systems
High-speed stamping machines
Automatic terminal crimping machines
Robotic handling systems
Integrated production lines

For an experienced Electrical Terminal Manufacturer, automation improves not only production capacity but also product stability. Automated systems reduce human errors during repetitive manufacturing operations and ensure each terminal follows the same production standards.

With increasing demand for electrical connection products, automated manufacturing helps manufacturers achieve shorter production cycles and more reliable supply capabilities.

2.3 Improving Production Accuracy Through Precision Manufacturing

Precision manufacturing is essential for producing reliable electrical terminals. Even small dimensional differences in terminal components can influence connection performance, installation accuracy, and long-term reliability.

Modern Crimp Terminal Manufacturers improve production accuracy through advanced manufacturing methods, such as:

Precision stamping molds
CNC tooling production
Automated dimensional inspection
Advanced forming equipment
Real-time production adjustment systems

High-precision manufacturing ensures that terminals maintain consistent dimensions, material thickness, and structural performance. This is especially important for industries such as automotive electronics, industrial automation, and electrical equipment manufacturing.

Through precision production control, manufacturers can reduce defective products and provide more reliable Electrical Crimp Terminals for different applications.

2.4 Reducing Material Waste And Production Errors

Reducing production waste is another effective way for manufacturers to improve efficiency. Materials such as copper and brass represent an important part of terminal manufacturing costs, making efficient material utilization essential.

Professional manufacturers reduce material waste through:

Optimized stamping layouts
Improved mold design
Production parameter optimization
Defect reduction systems
Material recycling processes

A reliable Crimp Terminal Manufacturer also analyzes production data to identify the causes of manufacturing errors and improve process efficiency.

By reducing unnecessary material consumption and production defects, manufacturers can improve resource utilization while maintaining competitive production costs.

2.5 Implementing Quality Control During Electrical Crimp Terminal Production

Quality control is an essential part of manufacturing reliable Electrical Crimp Terminals. Professional manufacturers establish inspection procedures throughout the entire production process to ensure product consistency.

Quality control steps usually include:

Incoming raw material inspection
Stamping quality verification
Surface treatment inspection
Crimping performance testing
Final product inspection

Common testing methods include:

Tensile strength testing
Electrical conductivity testing
Dimensional measurement
Visual inspection

By integrating quality management into every manufacturing stage, an experienced Electrical Terminal Manufacturer can reduce production risks and provide stable terminal solutions for industrial applications.

3. What Crimp Terminal Manufacturer Provides For Electrical Connection Applications

A professional Crimp Terminal Manufacturer provides various terminal solutions designed for different electrical connection requirements. Beyond standard products, manufacturers often support customized designs based on application conditions, wire specifications, and installation requirements.

Common electrical terminal products include:

Ring terminals

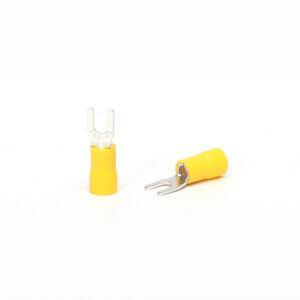

Spade terminals
Butt connectors
Pin terminals

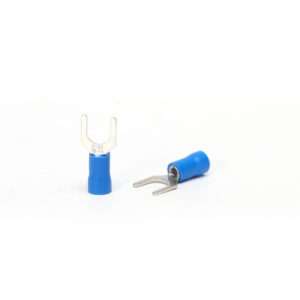

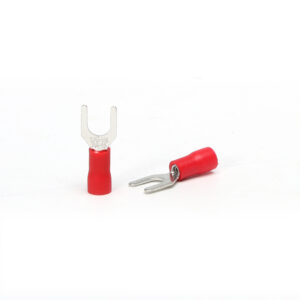

Fork terminals
Custom electrical terminals

Manufacturers usually provide different material options, including copper, brass, and tin-plated materials, to meet requirements for conductivity, corrosion resistance, and environmental durability.

For customized projects, experienced manufacturers can provide:

Terminal structure optimization
Custom tooling development
Material selection support
Surface treatment options
Production volume solutions

These capabilities allow manufacturers to support industries such as automotive, industrial equipment, renewable energy systems, and electrical control applications.

4. Key Factors That Influence Crimp Terminal Manufacturing Efficiency

The manufacturing efficiency of a Crimp Terminal Manufacturer depends on multiple factors, including production equipment, process management, technical expertise, and quality control capabilities. These factors directly affect manufacturing speed, product consistency, and delivery performance.

Manufacturing Equipment

Advanced manufacturing equipment plays an important role in improving production efficiency. High-speed stamping machines, automated crimping equipment, and precision inspection systems help manufacturers increase output while maintaining stable product quality.

Modern equipment also reduces production interruptions and improves the consistency of Electrical Crimp Terminals during large-volume manufacturing.

Production Process Management

Standardized production processes help manufacturers reduce unnecessary operations and improve workflow efficiency. A well-managed production system ensures that each manufacturing stage, from material preparation to final inspection, follows established quality requirements.

Effective process management also helps manufacturers identify production bottlenecks and continuously optimize manufacturing performance.

Technical Experience And Engineering Capability

The experience of engineers and production teams directly influences manufacturing efficiency. Professional manufacturers use technical expertise to optimize terminal designs, adjust production parameters, and solve manufacturing challenges.

Strong engineering capabilities also allow manufacturers to provide customized terminal solutions for different electrical connection applications.

Material Management

Efficient material management helps reduce waste and improve production cost control. Manufacturers need to carefully manage raw materials, including copper, brass, and plating materials, to ensure stable supply and consistent product quality.

Proper material selection and storage also help maintain the performance and reliability of finished terminals.

Quality Management System

A complete quality management system ensures that potential problems are identified and controlled during production. Inspection procedures, testing standards, and production monitoring systems help manufacturers maintain stable product performance.

For customers purchasing electrical connection components, choosing a manufacturer with a reliable quality system helps ensure long-term product reliability.

5. Technologies Used By Modern Crimp Terminal Manufacturers

5.1 Advanced Stamping And Forming Technologies

Stamping and forming are fundamental manufacturing processes for producing electrical terminals. Modern Crimp Terminal Manufacturers use advanced stamping technologies to achieve high production speed and precise terminal structures.

Common stamping and forming technologies include:

High-speed precision stamping machines
Customized stamping dies
Automatic feeding systems
Multi-stage forming processes

Advanced stamping technology improves manufacturing efficiency by reducing production time while maintaining accurate terminal dimensions and consistent product quality.

For applications requiring high reliability, precision forming ensures that terminals maintain proper mechanical strength and electrical connection performance.

5.2 Automatic Inspection And Testing Systems

Automatic inspection and testing systems help manufacturers improve product reliability while reducing manual inspection errors.

Modern inspection technologies include:

Machine vision inspection systems
Automatic dimensional measurement
Electrical performance testing
Online quality monitoring systems

These technologies allow manufacturers to detect production defects quickly and maintain stable quality throughout high-volume manufacturing.

For an experienced Electrical Terminal Manufacturer, automated testing systems provide better production control and help ensure that every terminal meets required specifications.

5.3 Process Management And Production Monitoring

Digital production management technologies help modern manufacturers monitor production efficiency and improve manufacturing processes.

Common production management technologies include:

Manufacturing Execution Systems (MES)
Production data tracking
Equipment monitoring systems
Quality data analysis platforms

Through real-time production monitoring, manufacturers can identify equipment issues, optimize production schedules, and improve resource utilization.

These technologies allow Crimp Terminal Manufacturers to maintain efficient production operations and provide more reliable supply capabilities for customers.

6. FAQ

How Does The Terminal Crimping Process Work?

The Terminal Crimping Process connects a terminal with a wire by applying controlled mechanical pressure to deform the terminal barrel around the conductor, creating a secure electrical and mechanical connection.

How To Choose A Reliable Electrical Terminal Manufacturer?

A reliable Electrical Terminal Manufacturer should have advanced production equipment, strict quality control systems, engineering capabilities, customization support, and experience in industrial electrical applications.

Can Electrical Crimp Terminals Be Customized For Different Applications?

Yes. Professional manufacturers can customize Electrical Crimp Terminals according to wire size, material requirements, terminal design, plating options, and specific application conditions.

What Are The Benefits Of Using Professionally Manufactured Crimp Terminals?

Professionally manufactured crimp terminals provide consistent dimensions, reliable electrical performance, strong mechanical connections, and stable quality for industrial electrical systems.

What Is The Difference Between Electrical Crimp Terminals And Wire Connectors?

Electrical Crimp Terminals are components designed to connect wires to electrical contact points, while wire connectors refer to broader connection solutions that may include different terminal types and connection methods.

7. Conclusion

Improving production efficiency is a key focus for modern Crimp Terminal Manufacturers. Through optimized Terminal Crimping Process, automated manufacturing equipment, precision production technologies, waste reduction methods, and strict quality control systems, manufacturers can produce reliable electrical connection components more efficiently.

A professional Electrical Terminal Manufacturer combines advanced manufacturing technology, experienced engineering teams, and effective production management to meet the increasing demand for high-quality electrical connection solutions.

For businesses looking for reliable terminal suppliers, evaluating manufacturing capabilities, production technology, and quality management systems can help establish long-term cooperation and ensure consistent product performance.

Prev article：What Quality Control Steps Reliable Terminal Block Manufacturers Should Follow

Next article：7 Benefits Of Using IP68 Waterproof Cable Glands

What IP68 Actually Means On A Cable Gland

The code is defined by IEC/EN 60529 and it is two independent numbers, not one. Read them separately:

First digit 6 — solid objects: dust-tight. No ingress of dust whatsoever, verified by an 8-hour test in a dust chamber under vacuum. This is the highest first digit in the standard.
Second digit 8 — water: protected against continuous immersion in water, under conditions agreed between the manufacturer and the user. IP68 is deliberately open-ended: it must be more severe than IP67 (30 minutes at a depth between 0.15 m and 1 m), but the actual depth and duration belong on the datasheet, not in the code.

That second point is the single most misunderstood detail in cable gland buying. Two glands can both be labelled IP68 while one is rated for 1 m continuous and the other for 10 m. If your application involves standing water, burial or a flood-prone pit, the number you need is not "IP68" — it is the depth-and-duration line on the test report. If you want the full comparison across the lower codes, read our breakdown of how IP68 compares with IP65, IP66 and IP67.

The Seven Benefits At A Glance

Benefit	What produces it	What to check on the datasheet
Continuous immersion protection	Compression seal on cable sheath plus body-to-enclosure gasket	Stated depth & duration, not just "IP68"
Dust-tight sealing	First digit 6, verified in a dust chamber	IP6X test report, seal material hardness
Strain relief and cable retention	Clamping ring or claw gripping the sheath	EN/IEC 62444 tensile class and torque values
Corrosion and UV resistance	Body material matched to the site chemistry	PA66 UV-stabilised, nickel-plated brass or SS316
Lower lifetime cost	Fewer call-backs, re-terminations and panel swaps	Seal service life, re-torque intervals, spares cost
Temperature and chemical stability	Elastomer seal chosen for the actual environment	Operating range and chemical compatibility list
Audit and market access	Third-party testing to recognised standards	IEC 60529, EN/IEC 62444, UL 514B, ATEX/IECEx

1. Continuous Immersion, Not Just A Dunk

IP67 certifies survival of a temporary immersion. IP68 certifies that the gland is designed to stay sealed while submerged indefinitely, which is a completely different engineering problem. A short dunk is survived by a seal that happens to fit tightly; continuous immersion requires a seal that holds its compression force while it is wet, cold, and under hydrostatic pressure for years. Two design features do the work. The first is the clamping seal: a tapered elastomer ring compressed by the dome nut so that it grips the cable sheath around its full circumference. The second is the body gasket or O-ring that seals the gland body against the enclosure wall. Both must be sized to the actual cable diameter — a 10 mm cable in a gland set up for 6–12 mm will seal, the same cable in a 3–6.5 mm gland will not. This is the benefit that matters in flood-prone cable pits, buried junction boxes, below-grade pump chambers, washdown bays with standing water on the floor, and any installation where the enclosure will sit in water rather than be splashed by it. Our IP68 waterproof cable gland range covers metric, PG and long-thread bodies in both nylon and brass, so the entry can be matched to the wall thickness and thread standard the enclosure was actually drilled for.

2. Dust-Tight Sealing, Not Just Water Sealing

Buyers obsess over the second digit and ignore the first. In many industrial sites the first digit is the one that fails you. An IP6X rating means no dust enters at all. That matters because fine conductive dust — carbon from brake and clutch wear, metal swarf, graphite, cement kiln dust, flour and grain dust in food plants — does not merely make a termination dirty. It bridges creepage distances, tracks across terminal blocks, and produces leakage currents that end in a burned terminal or a nuisance trip. Dust that settles on a warm termination also holds moisture against it, which turns a dry fault into a corrosion fault. Worth noting: an IP68 gland is also IP6X, because the first digit is independent of the second. A gland sold as "IP67" gives you the same first digit, but a gland sold on a water-jet claim alone (IP65, IP66) may not have been dust-chamber tested at all. If your site generates conductive dust, the first digit is the one to interrogate.

3. Strain Relief That Protects The Termination

A cable gland does two jobs, and the second one is almost always underspecified. It seals the entry, and it anchors the cable so that any pull, vibration or weight on the cable is absorbed by the gland body rather than by the conductor termination. Consider what happens without it. A 4 mm² conductor terminated into a spring cage terminal block is held by a few newtons of spring force. Hanging two metres of cable off that termination, or letting a machine vibrate next to it for six months, will work the conductor loose. The failure looks like a terminal block problem and gets blamed on the terminal block — but the root cause was at the cable entry. This is what EN/IEC 62444 (which replaced EN 50262) covers. It is the product standard for cable glands for electrical installations and it sets out the mechanical tests that separate a real gland from a shaped piece of plastic: cable retention (tensile) testing, torque testing on the thread and dome nut, impact resistance, and bending resistance — all followed by re-verification of the ingress protection rating, because a gland that seals before the test and leaks after it has failed. Where the mechanical load is high — trailing cables, mobile equipment, long vertical drops, machinery with constant vibration — the claw design is the one to ask for. A brass long-claw IP68 cable gland grips the sheath over a longer contact length than a standard compression ring, which spreads the clamping load and reduces the chance of the seal cutting into the sheath.

4. Corrosion And UV Resistance At The Weakest Point

The gland is usually the most exposed metal or polymer on an outdoor enclosure. It protrudes, it is handled, it sits at the point where water collects. Material choice here decides whether the entry is still serviceable in five years or has to be cut out.

Body material	Strengths	Watch out for	Typical applications
PA66 nylon, UV-stabilised	Low cost, light, electrically insulating, good chemical resistance, no galvanic issue with aluminium enclosures	Lower mechanical strength; verify UV stabilisation and UL94 flammability class	Solar junction boxes, outdoor lighting, light industrial panels
Nickel-plated brass	High mechanical strength, good thread wear resistance, excellent EMC continuity when used with a contact washer	Galvanic corrosion if paired with aluminium without protection; plating quality varies — ask for salt spray hours	Machinery, marine and coastal, heavy industrial
Stainless steel AISI 316	Best corrosion resistance, including chlorides and de-icing salts	Highest cost; galling risk on threads — use correct lubrication and torque	Offshore, chemical plant, food and beverage washdown, coastal infrastructure

Two verification questions belong on every RFQ. For metal bodies: how many hours of neutral salt spray to ISO 9227 (or ASTM B117) has the plating been tested for? For polymer bodies: has the material been UV-aged to ISO 4892, and is the grade confirmed as UV-stabilised rather than natural? A non-stabilised nylon gland in direct sun will chalk and lose impact strength long before it leaks — which is worse, because the failure is invisible until someone touches it. For general outdoor and light industrial duty, a PA66 nylon IP68 cable gland is usually the right value point: insulating, corrosion-proof, and light enough that it does not stress thin enclosure walls.

Specifying glands for a project that has to last?

Send us the enclosure material, wall thickness, cable diameters and the site conditions. Our engineers will confirm the thread standard, body material and seal compound before you commit to a BOM — and flag any entry where IP68 is more than the application needs.

Request A Cable Gland Specification Review

5. Lower Lifetime Cost Than The Unit Price Suggests

A gland is a low-value line item, which is exactly why it gets value-engineered badly. The purchase price is visible on the BOM; the cost of the failure it prevents is not. Run the arithmetic on a single outdoor junction box in an industrial plant. An IP68 gland might cost a small multiple of an unrated one — the delta on a twelve-entry box is immaterial. The cost of one failure is not: a call-out, an electrician's hour, a re-termination, and in a process plant possibly hours of downtime. On any installation where access is difficult — a rooftop, a mast, a buried pit, a tunnel — the first avoided call-back pays for every gland on the job. Use this structure with your own numbers rather than a generic multiplier:

Cost line	IP68 specification	Lower-rated specification
Gland unit cost × quantity	Your figure	Your figure
Installation labour	Identical if thread and size match	Identical if thread and size match
Inspection and re-torque over service life	Scheduled, predictable	Often reactive
Probability of moisture ingress over 10 years	Low, with correct sizing	Site-dependent, higher outdoors
Cost per ingress event (labour + parts + downtime)	Your figure	Your figure
Expected number of events over 10 years	Your estimate	Your estimate
Total

Fill the last two rows with your own maintenance history and the conclusion usually inverts: the gland is not where the money is saved. Sizing, torque and seal material are where the money is saved, and all three are free to get right.

6. Stable Sealing Across Temperature And Chemicals

An ingress rating is measured on a new gland at room temperature. Real service is neither. The elastomer seal is the part that sees it all, and it is the part most often chosen by default.

Seal material	Typical operating range	Good with	Avoid
NBR (nitrile)	−30 °C to +100 °C	Oils, fuels, greases, general industrial	Ozone, weathering, strong sunlight
EPDM	−40 °C to +120 °C	Weathering, ozone, UV, water, steam, glycol	Mineral oils, hydrocarbons, fuels
Silicone	−60 °C to +200 °C	Extreme temperature range, food contact grades	Fuels, some solvents; lower tear strength
TPE	−40 °C to +110 °C	General purpose, cost-sensitive outdoor duty	Aggressive solvents, high-temperature oil

Ranges above are typical published values and vary by compound and manufacturer — always confirm against the specific datasheet. Two mechanisms do the damage. Compression set is the seal's loss of ability to spring back after years of compression; once it takes a permanent set, the clamping force drops and the gland weeps. Thermal cycling is worse than steady temperature: a sheath that expands and contracts daily against a hardened seal will pump moisture along the cable over time, a mechanism that no static test catches.

This is why the material question should be asked in terms of the site, not the catalogue: is there oil mist, is there ozone from nearby motors, does the enclosure see direct sun on one face, is there a washdown cycle with hot water or caustic? The right seal is the one matched to those answers.

7. Certification That Clears Audits And Borders

For a B2B buyer the seventh benefit is procedural, and it is often the one that decides the order. An uncertified gland is a component your customer's auditor can reject, your insurer can question, and your export paperwork can stall on. The standards that legitimately apply to a cable gland:

IEC/EN 60529 — the IP code itself. The test report should state the depth and duration for the second digit 8.
EN/IEC 62444 — the cable gland product standard: mechanical and sealing performance, marking and classification. Supersedes EN 50262.
UL 514B — the North American fitting standard where the assembly is shipped to the USA or Canada; UL 50E may additionally apply to the enclosure opening.
ATEX / IECEx with EN IEC 60079 — Ex e (increased safety) and Ex d (flameproof) glands for hazardous areas. These are certified as part of an assembly, not as loose components.
RoHS and REACH — material substance compliance, required for EU placement and increasingly requested by OEMs elsewhere.
ISO 9001 at the manufacturing site — the process evidence behind the test reports.

The practical advice is to ask for the test report number and the issuing laboratory, not the certificate logo. A supplier who can produce a dated report from a named laboratory is a different proposition from one who can produce a PDF badge. If you are building a supplier shortlist, our guide to verifying waterproof cable gland suppliers covers what to request and what a genuine answer looks like.

When IP68 Is Not Worth Paying For

Specifying IP68 everywhere is not diligence, it is a different kind of mistake. Some cases where the money is better spent elsewhere:

Dry indoor control panels. If the enclosure is IP54 in a conditioned room, an IP54–IP65 gland with correct strain relief is the correct part.
High-pressure, high-temperature washdown. Food and beverage lines that are jet-cleaned at 80 °C need IP69K per ISO 20653, which is a different test from the IEC 60529 second digit — IP68 does not automatically cover it.
Very small enclosures with thin walls. A heavy brass gland on a 1.5 mm polycarbonate wall creates a lever arm and a thread-engagement problem. A nylon gland with a locknut is often the better engineering answer.
Where a conduit system already does the sealing. Sealed conduit with a certified fitting may remove the need for a high-rated gland entirely.

The honest version of this article is that IP68 is not a quality grade, it is a fitness-for-purpose grade. It pays for itself exactly where water or conductive dust will be present for long periods, and nowhere else.

How To Specify An IP68 Gland On Your Next RFQ

Eight fields are enough to get an accurate quote and, more importantly, to get the right part:

Thread — metric (M12–M63), PG, NPT or G/BSPP, plus the required thread length for the wall thickness.
Cable outside diameter range — measured, not nominal from the cable type. This is the single most common cause of a leaking IP68 gland.
Body material — PA66, nickel-plated brass or stainless steel, with the UV or salt-spray requirement.
Seal material — NBR, EPDM, silicone or TPE, matched to temperature and site chemistry.
Operating temperature range — including cycling, not just the extremes.
Mechanical requirement — cable retention class where vibration or cable weight is present.
Certifications — IEC 60529 depth/duration, EN/IEC 62444, UL 514B, ATEX/IECEx, RoHS/REACH.
Quantity, packaging and marking — loose, bagged, part-number printed, private label.

Installation is the other half of the equation. An IP68 gland installed at the wrong torque, on an out-of-range cable, or with the dome nut cross-threaded will not hold its rating. Our step-by-step guide to installing IP68 waterproof cable glands sets out the sequence and the torque checks.

Need samples for an incoming qualification?

Tell us the cable diameters, thread standard and site conditions. WESTLEC will ship sample glands with the relevant test documentation so your team can verify the rating on your own cable before the BOM is frozen.

Request IP68 Cable Gland Samples

Frequently Asked Questions

1. What does IP68 actually mean for a cable gland?

Dust-tight (first digit 6) and protected against continuous immersion in water under conditions specified by the manufacturer (second digit 8). Unlike IP67, which is defined as 30 minutes at 0.15–1 m, IP68 has no fixed depth or duration in the standard — those figures must be read off the gland's own datasheet and test report.

2. Is IP68 always better than IP67?

For standing water and burial, yes. But IP68 is only meaningful with a stated depth and duration, and a well-made IP67 gland correctly sized to the cable will outperform a poorly installed IP68 one. Installation quality and cable diameter match dominate the rating in practice.

3. Can an IP68 cable gland be used permanently underwater?

Only if the manufacturer's rating covers the depth and duration involved — that is precisely what the second digit 8 delegates to the datasheet. For any permanent submersion application, get the test report and confirm the seal material is rated for continuous water contact at the site temperature.

4. Does IP68 cover high-pressure washdown?

Not automatically. High-pressure, high-temperature jet cleaning is covered by IP69K per ISO 20653, which is a different test from the IEC 60529 second digit. Food and beverage plants should specify IP69K explicitly rather than assuming IP68 is sufficient.

5. Nylon or brass for an IP68 gland?

Nylon PA66 suits cost-sensitive outdoor and light industrial work, is corrosion-proof and avoids galvanic problems with aluminium enclosures. Nickel-plated brass suits high mechanical load and EMC continuity requirements. Stainless steel 316 is specified for coastal, offshore, chemical and washdown duty.

6. What causes an IP68 gland to leak?

Almost always one of three things: the cable outside diameter falls outside the gland's stated clamping range, the dome nut is under- or over-torqued, or the seal has taken a compression set after long service or thermal cycling. Incorrect thread length for the wall thickness is a close fourth.

7. Do IP68 glands need maintenance?

They need inspection rather than maintenance. Check for dome nut loosening after the first thermal cycle and at scheduled intervals, look for seal cracking or flattening, and plan seal replacement on a service interval in continuously immersed or high-cycling installations rather than waiting for a leak.

8. Which certifications should a B2B buyer require?

At minimum an IEC/EN 60529 test report stating the IP68 depth and duration, and EN/IEC 62444 for mechanical and sealing performance. Add UL 514B for North America, ATEX/IECEx under EN IEC 60079 for hazardous areas, and RoHS/REACH documentation for EU placement. Always ask for the report number and issuing laboratory.

About The Author

This article was prepared by the WESTLEC engineering team in Yueqing, Zhejiang. WESTLEC manufactures low-voltage electrical connection components — cable glands, terminal blocks, crimp terminals and waterproof enclosures — under an ISO 9001 quality management system, and supplies OEM, panel-building and distribution customers in Europe, North America, the Middle East and Southeast Asia. Ratings and standards referenced: IEC/EN 60529, EN/IEC 62444, UL 514B, EN IEC 60079, ISO 9227, ISO 4892, ISO 20653. Last reviewed: September 2026. Values quoted are typical published figures; always confirm against the specific product datasheet before finalising a specification.

Related Resources

Why Butt Splice Terminals Are Widely Used in Electrical Wiring

Quick answer: Butt splice terminals are widely used because one crimped component does a job that otherwise needs a connector pair, a housing and a panel cut-out. They join two wire ends inline, carry their own insulation and strain relief, are colour-coded so the right size is obvious on the bench, produce a gas-tight joint that survives vibration better than a twisted or soldered splice, and cost pennies per point. Seven practical reasons, with the standards and selection data behind each, are set out below. Walk through any harness shop, service van or assembly line and you will find the same thing: a dispenser box of red, blue and yellow butt splice terminals within arm’s reach. That is not habit, it is economics. When a joint has to be permanent, compact and made in seconds with one tool, the butt splice wins on almost every axis that matters to a production or maintenance engineer.

What a butt splice terminal actually does

A butt splice terminal — also called a butt connector, inline splice or butt splice crimp — is a short metal tube with an insulating sleeve. You strip both cable ends, insert one into each end of the tube until the conductors meet in the middle, and crimp each end with the same tool. The result is a permanent inline joint that is electrically continuous, mechanically strong and insulated over its full length. That is the whole concept, and its simplicity is the first reason it is used everywhere.

1. It joins two wires without a mating half

Every other way of joining two wires needs two components that mate: a plug and a socket, a pin and a receptacle, a terminal block and a conductor. A butt splice needs one part and no mating interface. That has three consequences that matter in the real world:

No panel cut-out or mounting space. The joint sits inside the harness, inside conduit, behind a trim panel or inside a junction box. Nothing has to be designed around it.
No inventory pairing. You do not have to keep male and female halves in stock in matching quantities, and you cannot lose one half of the pair.
No unmating failure mode. A connector can vibrate loose, back out or be pulled apart. A crimped butt splice cannot come apart unless the conductor or the barrel fails.

2. Insulation and strain relief come in the same crimp

An insulated butt splice is not a bare tube with heat shrink added later. The sleeve is part of the component, it extends past both ends of the metal barrel, and it is gripped by the second crimp of the same tool stroke. That gives you two functions from one action:

Insulation rated for the working voltage of the circuit, covering the full length of the joint with no exposed metal.
Strain relief, because the sleeve grips the cable jacket, so bending and pulling loads are taken by the insulation rather than being transferred to the conductor crimp.

Sleeve material is the main choice here. Vinyl (PVC) sleeves are the general-purpose standard — flexible, low cost, and commonly rated around 75 °C. Nylon (PA66) sleeves run at a higher temperature class, commonly around 105 °C, and resist abrasion and some solvents better. Heat-shrink versions with an internal adhesive layer add a moisture seal for outdoor, marine and under-vehicle work. Always confirm the temperature and voltage rating on the specific datasheet rather than assuming a class. Our range of vinyl insulated butt splice terminals covers the standard wire ranges in the same three-colour system used across the industry.

3. A correct crimp beats a twisted-and-taped joint

The technical reason butt splices replaced twisted joints in professional wiring is the crimp itself. A proper crimp compresses the conductor strands and the barrel into a cold-welded, gas-tight mass. There is no air gap for oxidation to grow into, so the contact resistance stays low for the life of the installation. A twisted joint taped with PVC tape does the opposite. It relies on friction, it loosens under thermal cycling as copper relaxes, and it oxidises from the inside out — which is why old taped splices are the classic source of intermittent faults and warm insulation. Soldering has its own problems in a harness: it creates a stiff section that concentrates bending stress right at the point where the strands enter the solder, it needs skill and heat in the field, and solder can wick up the strand bundle and create a brittle length of wire. That is why crimp is the default in automotive, aerospace and industrial harness standards. We go into the trade-offs in more detail in our comparison of crimping versus soldering.

4. Colour coding removes the guesswork

The red / blue / yellow sleeve colours are not decoration. They are a size system that lets an operator pick the right terminal without reading a part number, and it is the same system on the tool dies — so the terminal and the crimper nest agree by colour.

AWG	mm² (metric equivalent)	Sleeve colour	Typical min pull force
22	0.34	Red	36–51 N
20	0.50	Red	58–73 N
18	0.82	Red	85–101 N
16	1.5	Blue	134–150 N
14	2.5	Blue	223–230 N
12	4	Yellow	310–312 N
10	6	Yellow	356–360 N

Reference ranges only. Values vary with the standard edition, conductor stranding and terminal design — always confirm against the terminal datasheet. The acceptance criterion that matters in practice is the failure mode, not the number: the conductor should break before it pulls out of the barrel.

5. One tool set covers the whole range

A single ratchet crimper with colour-coded nests handles every size in the table above, plus the ring, fork, pin and blade terminals used elsewhere in the same harness. That is a genuine advantage for field service teams, where the alternative is carrying a soldering iron, a power source and consumables. Two details separate a good result from a marginal one:

Crimp height control. Crimp height is measured, not guessed. Typical tolerances are around ±0.05 mm on small terminals and ±0.10 mm on power terminals, verified with a micrometer and a go/no-go gauge. A ratchet crimper will not release until the stroke is complete, which is what prevents the under-crimps that fail later.
Strip length. Too little and the conductor does not reach the barrel centre; too much and bare copper is exposed outside the sleeve. The datasheet strip length is part of the specification, not a suggestion.

6. The compliance path is short and auditable

For a buyer, one of the most attractive things about butt splice terminals is how quickly a part can be qualified. The relevant standards are well established and the evidence is cheap to produce:

UL 486A-486B — wire connectors and solder lugs for use with copper conductors, covering pull-out (secureness), temperature rise and dielectric withstand
IEC 60352-2 — solderless crimped connections, the international counterpart for crimp quality and testing
EN/IEC 61238-1 — compression and mechanical connectors for power cables, applied at the larger cross-sections
UL 94 — flammability class of the insulating sleeve
RoHS and REACH — substance compliance for the plating and sleeve material
ISO 9001, and IATF 16949 where the harness goes into vehicles

Material is part of that story. Quality butt splice barrels are drawn from ETP copper (C11000, Cu ≥ 99.9%) and tin plated, with plating specified to ASTM B545 service classes. The tin layer is what keeps a fine-stranded conductor from oxidising inside the crimp over years of service.

Specifying butt splice terminals for a production harness?

Send us your conductor sizes, annual volume and target market. Our engineering team will return datasheets, UL and IEC test evidence and production-lot samples you can pull-test on your own bench before you commit.

Request Samples And Datasheets

7. Low piece cost and lower rework risk

The terminal itself is one of the cheapest components in any assembly. The cost that matters is the cost of getting it wrong: a warranty return, a truck roll, a harness pulled out of a machine. Because the crimp is a repeatable process with measurable acceptance criteria, a controlled butt splice line produces fewer field failures than almost any other joining method — and that is ultimately why procurement keeps buying them.

Where butt splice terminals are used every day

Application	Why a butt splice fits	Sleeve choice
Automotive and trailer harness	Vibration-resistant inline joints, no bulky connector body	Vinyl as standard; heat shrink under-vehicle
Marine and boat wiring	Sealed joint in a salt-spray environment, tinned barrel	Adhesive-lined heat shrink
Appliance and HVAC internal wiring	Fast assembly, insulated joint inside a tight enclosure	Vinyl or nylon to suit temperature
Industrial control panels and field wiring	Extend or repair a run without re-pulling cable	Vinyl, or nylon for higher ambient
Solar and outdoor equipment	UV and moisture exposure, tinned conductor recommended	Adhesive-lined heat shrink
Maintenance and repair (MRO)	One size system, one tool, no power required	Vinyl kit boxes

For wet, buried or under-vehicle locations the insulation class matters more than the barrel. In those cases our waterproof heat shrink butt connectors provide the adhesive seal that a standard vinyl sleeve cannot.

How to choose the right butt splice terminal

Work through these seven checks before you order:

Conductor size and stranding. Match the terminal to the actual mm² or AWG, and check whether the datasheet covers your stranding class — fine-stranded flexible cable behaves differently in a crimp from a 7-strand building wire.
Insulation type. Vinyl for general purpose, nylon for higher temperature and abrasion resistance, adhesive-lined heat shrink where moisture reaches the joint.
Environment. Ambient temperature, salt, fuel, oil, UV and cleaning chemicals all narrow the choice.
Conductor material. Tinned copper terminals are the safer choice with tinned or fine-stranded conductors, particularly in marine work.
Voltage rating. Confirm the sleeve rating against the circuit working voltage, including transients.
Tooling match. The die nest colour must match the sleeve colour, and the crimper must be the ratchet type.
Documentation. Datasheet with pull-out data, UL or IEC evidence, RoHS and REACH statements, and lot traceability.

A standard general-purpose example is the BV vinyl insulated butt splice terminal, which is supplied in the same red, blue and yellow ranges used across the table above.

When a butt splice is the wrong answer

Being widely used does not mean being universal. Choose something else when:

The joint must be disconnected later. A butt splice is permanent. Use a mating connector pair.
The conductor is large. Above the sizes in the table, power work moves to compression splices qualified to EN/IEC 61238-1, installed with a hydraulic tool.
The cable moves continuously. Drag chains and robotic harnesses need flex-rated cable and strain relief designed for cyclic bending, not an inline crimp.
Mechanical protection is needed. A butt splice has no shell; in an exposed location it needs a enclosure, loom or moulded boot.

If you are unsure whether you need a splice or a connector at all, our breakdown of butt splice terminal versus butt connector explains where the boundary sits.

Mistakes that cancel out the advantages

Almost every failed butt splice we see in the field comes from one of five causes:

Wrong size terminal, or a die nest that does not match the sleeve colour
Twisting the strands before insertion, which changes the fill ratio of the barrel
Crimping the insulation sleeve in the conductor die, or the conductor in the insulation die
Joining two different conductor sizes in a barrel that is not rated for that combination
No pull test on first-off samples, so a bad tool setting runs through a whole shift

A five-sample pull test at the start of every batch, checking that the conductor breaks before it pulls out, catches all five in about two minutes.

Need a second source for butt splice terminals?

WESTLEC supplies vinyl insulated, nylon insulated and heat shrink butt splice terminals with full documentation, mixed-size kitting and OEM packaging. Tell us your sizes and volumes and we will quote from stock or to schedule.

Get A Quote For Butt Splice Terminals

Frequently asked questions

1. What is a butt splice terminal used for?

It permanently joins two wire ends inline. Typical uses are extending a cable run, repairing a damaged section of harness, and building splices into an automotive, marine or appliance loom where a connector pair would be too bulky or too expensive.

2. Are butt splice terminals waterproof?

Standard vinyl or nylon insulated butt splices are not waterproof. For wet, buried, marine or under-vehicle locations use an adhesive-lined heat shrink butt connector, which seals to the cable jacket when heated, or protect the joint inside a rated enclosure.

3. Can you use a butt splice terminal on solid wire?

Yes, most butt splice terminals are rated for both solid and stranded copper conductors, but the rated capacity differs by conductor type. Check the datasheet wire range for solid versus stranded before crimping, and never mix a solid and a stranded conductor in the same barrel unless the datasheet allows it.

4. Do butt splice terminals need heat shrink?

Not if the terminal already has an insulated sleeve, which covers the joint to its rated voltage. Heat shrink is added for abrasion protection, for bundling, or for sealing — and adhesive-lined heat shrink versions combine the seal with the terminal in one part.

5. What size butt splice terminal do I need?

Match the terminal to the conductor cross-section and use the sleeve colour as the cross-check: red for roughly 0.5–1.5 mm², blue for 1.5–2.5 mm², yellow for 4–6 mm². Always confirm against the manufacturer’s wire-range table, because ranges differ between designs.

6. Is crimping better than soldering a butt splice?

For harness and field work, yes. A crimp is faster, needs no heat, is repeatable and does not create the stiff, stress-concentrating section that solder produces at the edge of the insulation. Soldered joints are still used in some electronics work, but crimp is the standard for automotive, marine and industrial wiring.

7. Can you join two different wire sizes?

Only if the terminal is rated for that combination. Some designs accept two smaller conductors in one end, or a step-down pair, but the fill ratio of the barrel has to stay within the design limits or neither conductor will be gripped properly. Check the datasheet rather than forcing the fit.

8. Which standards apply to butt splice terminals?

UL 486A-486B covers wire connectors for use with copper conductors in North America, IEC 60352-2 covers solderless crimped connections internationally, and EN/IEC 61238-1 applies to compression connectors for power cables at larger sizes. Sleeve flammability is classified to UL 94, and substance compliance is covered by RoHS and REACH.

Conclusion

Butt splice terminals are widely used because they solve a common problem with the least possible hardware: one part, one tool stroke, a permanent insulated joint that is easy to inspect and cheap to qualify. Colour coding keeps sizing honest on the bench, the crimp produces a gas-tight connection that outlasts a twisted or soldered splice, and the standards path is short enough that a buyer can approve a part in days. The two conditions attached to all of that are size matching and crimp control. Get those right and the butt splice is one of the most reliable joints in the harness; get them wrong and no amount of tape will save it.

About the author

This article was written by the WESTLEC engineering team. WESTLEC manufactures low-voltage electrical connection products — crimp terminals including butt splice, ring, fork, pin and blade types, copper tube terminals, rail-mounted terminal blocks, busbars and waterproof cable glands — at our factory in Yueqing, Zhejiang, China, under an ISO 9001 quality management system. Our products are supplied to harness builders, panel builders, distributors and OEMs in Europe, North America, the Middle East and Southeast Asia.

Last reviewed: September 2026. Standards referenced: UL 486A-486B, IEC 60352-2, EN/IEC 61238-1, UL 94, ASTM B545, RoHS, REACH.

Related resources

Electrical Resistance Testing For Fork Crimp Terminals

Quick answer: Electrical resistance testing — usually a four-wire (Kelvin) millivolt-drop test — is the only non-destructive way to measure whether a fork crimp terminal actually makes a good electrical joint. You pass a known DC current through the crimped assembly, measure the voltage drop across the crimp, and divide to get resistance. A sound crimp measures no more than the resistance of an equivalent length of the conductor itself, which for a small fork terminal is a fraction of a milliohm. This article gives the reference values, the test procedure, the error sources and the pass/fail bands. A fork crimp terminal can look perfect and still be electrically marginal. The strands may not have filled the barrel, the crimp may be a fraction of a millimetre too high, or the plating may have been scored during forming — none of which is visible once the sleeve is on. Resistance testing is what turns “it looks fine” into a number you can put in a quality record.

What resistance testing tells you about a fork crimp

A crimped connection is a mechanical joint. Its electrical quality comes from the contact area between the compressed copper strands and the inside of the barrel, and from the absence of oxide or voids in that interface. Resistance is the direct electrical expression of that interface. Three things make the test worth running:

Heat is the failure mode you are preventing. A high-resistance crimp dissipates power (P = I²R) every time the circuit is loaded. That heat softens insulation, anneals the copper, oxidises the interface further and raises the resistance again — a slow thermal runaway that ends in a burnt terminal.
It is non-destructive. Unlike a pull test, the sample survives, so you can test first-off pieces and still use them.
It is fast and repeatable. A trained operator runs a sample in under a minute, which makes it practical for in-process checks as well as for incoming inspection.

Our range of vinyl insulated fork terminals is dimensioned so that a correctly set tool produces a crimp in the band described below — but the measurement is what proves it.

Why two probes are not enough

A good small fork crimp measures in the order of 0.05–0.15 mΩ. The resistance of a pair of test leads, the probe contact points and the clip-to-terminal interface is typically tens of milliohms. On a two-wire meter you would be reading your own test leads, not the crimp. The fix is the four-wire (Kelvin) method:

Two current leads pass the test current through the assembly.
Two voltage sense leads touch points inside the current connections and measure the drop. Because the meter input draws almost no current, no voltage is dropped across the sense lead and contact resistance, so it cancels out.

Any instrument described as a micro-ohmmeter, a milliohmmeter with Kelvin terminals, or a benchtop DMM in four-wire resistance mode will do this. What matters more than the meter is where you put the probes — see the procedure below.

Reference values by conductor size

The classic acceptance criterion is that the resistance of a crimped connection should not exceed the resistance of an equal length of the conductor it joins. The table below gives that reference, calculated from the resistivity of copper (ρ = 1.7241 × 10^-8 Ω·m at 20 °C) for a 10 mm length — roughly the length of a small fork terminal barrel.

Conductor	AWG	R of 10 mm copper at 20 °C	mV drop at 1 A	mV drop at 10 A
0.34 mm²	22	0.529 mΩ	0.53 mV	5.29 mV
0.50 mm²	20	0.333 mΩ	0.33 mV	3.33 mV
0.82 mm²	18	0.209 mΩ	0.21 mV	2.09 mV
1.31 mm²	16	0.132 mΩ	0.13 mV	1.32 mV
2.08 mm²	14	0.083 mΩ	0.08 mV	0.83 mV
3.31 mm²	12	0.052 mΩ	0.05 mV	0.52 mV
5.26 mm²	10	0.033 mΩ	0.03 mV	0.33 mV

Read those numbers again: the values you are measuring are microvolts to a few millivolts. That is why the method matters more than the meter, and why a 2 mΩ reading on a 1.5 mm² crimp is not a rounding error — it is roughly fifteen times the resistance of an equal length of conductor. For the metric fork sizes commonly used in control panels, the same calculation gives: 1.25 mm² → 0.138 mΩ, 2.0 mm² → 0.086 mΩ, 3.5 mm² → 0.049 mΩ, 5.5 mm² → 0.031 mΩ per 10 mm.

Step-by-step test procedure

Condition and record temperature. Test at 20 °C ± 5 °C where possible. If not, record the temperature and correct the reading: R₂₀ = R_t ÷ [1 + 0.00393 (t − 20)], where 0.00393 is the temperature coefficient of copper.
Select the test current. High enough to give a readable drop, low enough not to heat the joint. A practical range for small fork terminals is 1–10 A DC; where your specification states a current, use that.
Make the current connections outside the sense points. Clamp the current leads to the conductor well back from the barrel and to the terminal tongue or pad. Current must flow through the whole joint.
Place the sense probes at the barrel mouths. Put one on the conductor immediately where it enters the barrel and one on the fork tongue immediately where it leaves. This captures the barrel-to-conductor interface — which is the crimp — and not the bulk conductor.
Cancel offset and thermal EMF. Zero the instrument with the leads shorted, or take readings with the current in both directions and average the two magnitudes. Dissimilar-metal junctions generate a small voltage of their own that can exceed your signal.
Energise, settle, read. Wait a few seconds for thermal and electrical settling, record the millivolt drop, and calculate R = V ÷ I.
Compare and record. Compare against your limit, and log crimp height, tool identity, operator and operator shift alongside the resistance value. Resistance without crimp-height context is half a record.

As a worked example: a 2 mm² fork terminal tested at 10 A gives a drop of 0.94 mV. R = 0.94 mV ÷ 10 A = 0.094 mΩ. The reference for 2 mm² is 0.086 mΩ, so the ratio is 1.09 — acceptable, but close enough to justify checking the crimp height and the strand fill before releasing the batch.

Interpreting the reading

Measured R ÷ reference R	Verdict	Typical cause	Action
≤ 1.0	Good	Full strand fill, gas-tight interface	Release; log the value
1.0 – 2.0	Acceptable, watch	Slightly high crimp height or short strip length	Check crimp height and probe placement, retest
2.0 – 5.0	Marginal	Under-crimp, missing strands, damaged plating	Hold the batch; verify tool setting and conductor size
> 5.0	Fail	Wrong die, wrong terminal size, oxide or contamination	Quarantine, rework or scrap, re-qualify the tool

These bands are a practical starting point for in-house process control. The binding limit is the one written in your product specification, customer standard or applicable national standard — always defer to that when it exists.

Want reference values for your exact terminal sizes?

Tell us the fork terminal sizes and conductors you build with. Our engineering team will return measured resistance and pull-out data for production samples, with the test current and probe positions documented so your team can reproduce the result.

Request Test Data For Your Sizes

Five errors that produce false readings

Measuring with two wires. You will read your leads. Values above a few milliohms on a small terminal almost always mean a two-wire setup.
Test current too low for the meter. At 1 A a 1.5 mm² crimp produces about 0.13 mV. If your instrument cannot resolve tens of microvolts, raise the current rather than guessing.
Ignoring thermoelectric EMF. Copper-to-tin and copper-to-nickel junctions generate their own voltage. Reverse the current and average, or use an instrument with offset compensation.
Heating the sample. A large current left on too long raises the joint temperature and the reading. Energise briefly and let samples cool between tests.
Measuring the wrong span. If your sense probes sit on the conductor either side of the barrel rather than across it, you are measuring wire, not crimp. Define the span in your work instruction and keep it identical between samples.

Where resistance testing fits among the other crimp checks

Resistance testing is powerful but not sufficient on its own. A complete crimp qualification stacks four methods:

Visual and dimensional. Crimp height measured with a micrometer and go/no-go gauge, typically held to about ±0.05 mm on small terminals and ±0.10 mm on power sizes. Catches tool drift before it becomes a resistance problem.
Resistance (this article). Non-destructive, fast, measures the actual electrical result.
Pull-out / secureness. Covered by IEC 60352-2 and UL 486A-486B. The acceptance criterion that matters is the failure mode — the conductor should break before it pulls out of the barrel.
Cross-section analysis. Destructive metallographic section used to qualify a new tool, die or terminal design, and to calibrate the other three.

Used together, these four give you a closed loop: dimensional drift shows up as rising resistance, and rising resistance shows up as reduced pull force. It also helps to know which variables were fixed before the terminal reached your bench — barrel material, annealing and plating thickness all set the floor on how low your reading can go. Our article on how high quality fork terminals are manufactured covers that upstream side. Installing the terminal correctly is the other half of the equation — our guide to installing fork crimp terminals correctly covers the assembly side.

Standards behind the method

When you write a test instruction, cite the standard your customer recognises:

IEC 60352-2 — solderless crimped connections; covers electrical (voltage drop / resistance) measurement along with mechanical and conditioning tests
UL 486A-486B — wire connectors for copper conductors; covers secureness, pull-out and temperature-rise performance
USCAR-21 — automotive cable-to-terminal crimp performance, including a millivolt-drop test, widely applied in harness production
EN/IEC 61238-1 — compression connectors for power cables, where resistance is measured across heat-cycling sequences
IPC/WHMA-A-620 — cable and wire harness workmanship acceptance criteria
ISO 9001, and IATF 16949 where the harness is automotive

Note that standards usually specify the conditioning sequence and the limit, not your shop-floor sampling plan. The sampling plan is yours to define — see below.

Sampling and records that make the test worth running

Trigger	Sample	Record
New tool, die or terminal size	5 pieces, plus cross-section on 1	Crimp height, resistance, pull force, section photo
Start of shift or batch	3 pieces	Crimp height and resistance, tool ID, operator
After a tool adjustment or conductor change	3 pieces	Full re-qualification of first-off
Incoming inspection of a new lot	3 pieces per size	Resistance, plating appearance, dimensional check

Keep the results on a simple control chart. A slow upward drift in resistance is usually the first sign that a die is wearing or that a crimp-height setting has moved — and it appears long before any sample actually fails. Our SV 2 fork terminal and SV 5.5 fork terminal are supplied with dimensional data that lets you set crimp height and verify resistance on the same samples.

Qualifying fork crimp terminals for a new harness?

Send us your conductor sizes, crimp tooling and target standard. WESTLEC supplies production-lot samples with dimensional, resistance and pull-out data so your quality team can approve the part without a second test round.

Get Samples And Test Reports

Frequently asked questions

1. What is electrical resistance testing?

It is a measurement of the resistance of the crimped joint, usually performed as a four-wire millivolt-drop test: a known DC current is passed through the assembly and the voltage drop across the crimp is measured and divided by the current. The result tells you whether the crimp formed a gas-tight, low-resistance interface.

2. What resistance should a good fork crimp have?

As a rule of thumb, no more than the resistance of an equal length of the conductor. For a 1.5 mm² crimp that is around 0.13 mΩ for a 10 mm length; for 2.5 mm² about 0.07 mΩ. Where your specification or standard states a limit, that number governs.

3. Do I really need a four-wire meter?

Yes for small terminals. Lead and contact resistance is tens of milliohms, while the crimp is a fraction of a milliohm, so a two-wire reading tells you almost nothing about the joint. A milliohmmeter with Kelvin terminals or a benchtop DMM in four-wire mode is the practical minimum.

4. What test current should I use?

High enough for a readable drop and low enough not to heat the joint — 1–10 A DC is a common practical range for small fork terminals. If your specification, or the applicable standard such as USCAR-21, states a current, use that value so your results are comparable with the supplier’s.

5. Can I test a fork terminal after it is installed?

Yes, provided you can access both the conductor side and the tongue side with four probes and the circuit is de-energised and isolated. Measure across the crimp span only; the resistance of the mating stud, screw or tab interface is a separate joint and will dominate the reading if you include it.

6. Why does my reading change with temperature?

Copper has a temperature coefficient of about 0.00393 per °C, so resistance rises with temperature. Test near 20 °C where possible, or correct the reading using R₂₀ = R_t ÷ [1 + 0.00393 (t − 20)] and record the temperature with every measurement.

7. Is a low resistance reading enough to approve a crimp?

On its own, no. Resistance is a good screening test but a crimp can measure low and still be mechanically weak if, for example, only part of the strand bundle was captured. Pair it with crimp-height measurement on every sample and with periodic pull-out and cross-section checks.

8. How often should resistance be tested in production?

First-off checks whenever a tool, die, terminal size or conductor lot changes, then a small sample — typically three pieces — at the start of each shift or batch. Plot the values on a control chart; a slow drift is more informative than any single pass or fail result.

Conclusion

Electrical resistance testing turns crimp quality from an opinion into a number. Run it four-wire, at a defined test current, across the barrel span, with thermal EMF cancelled and the temperature recorded, and compare against the resistance of an equal length of conductor. Values above roughly double that reference are a signal to stop and check the tool before the batch grows. Used alongside crimp-height measurement, pull-out testing and occasional cross-section analysis, it gives you a crimp process you can actually defend — to a customer auditor, to an automotive quality system, or simply the next time a harness comes back from the field.
