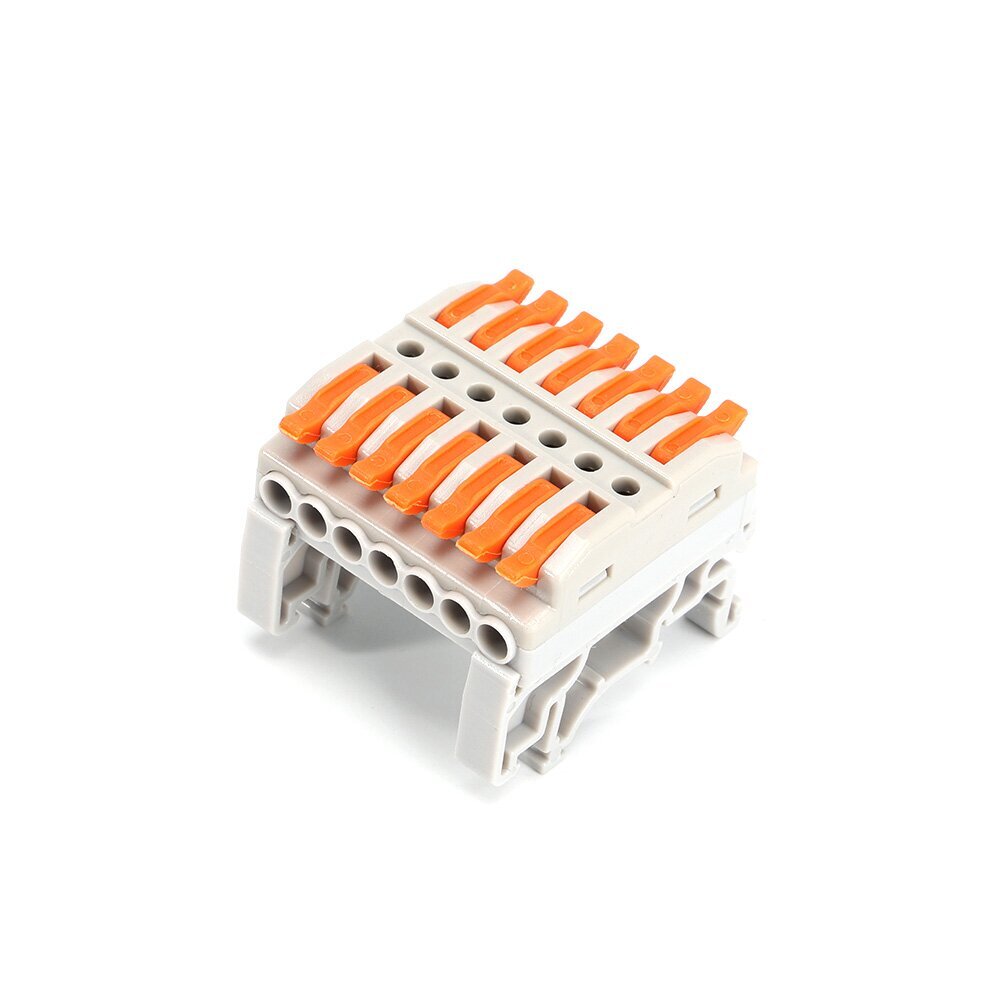

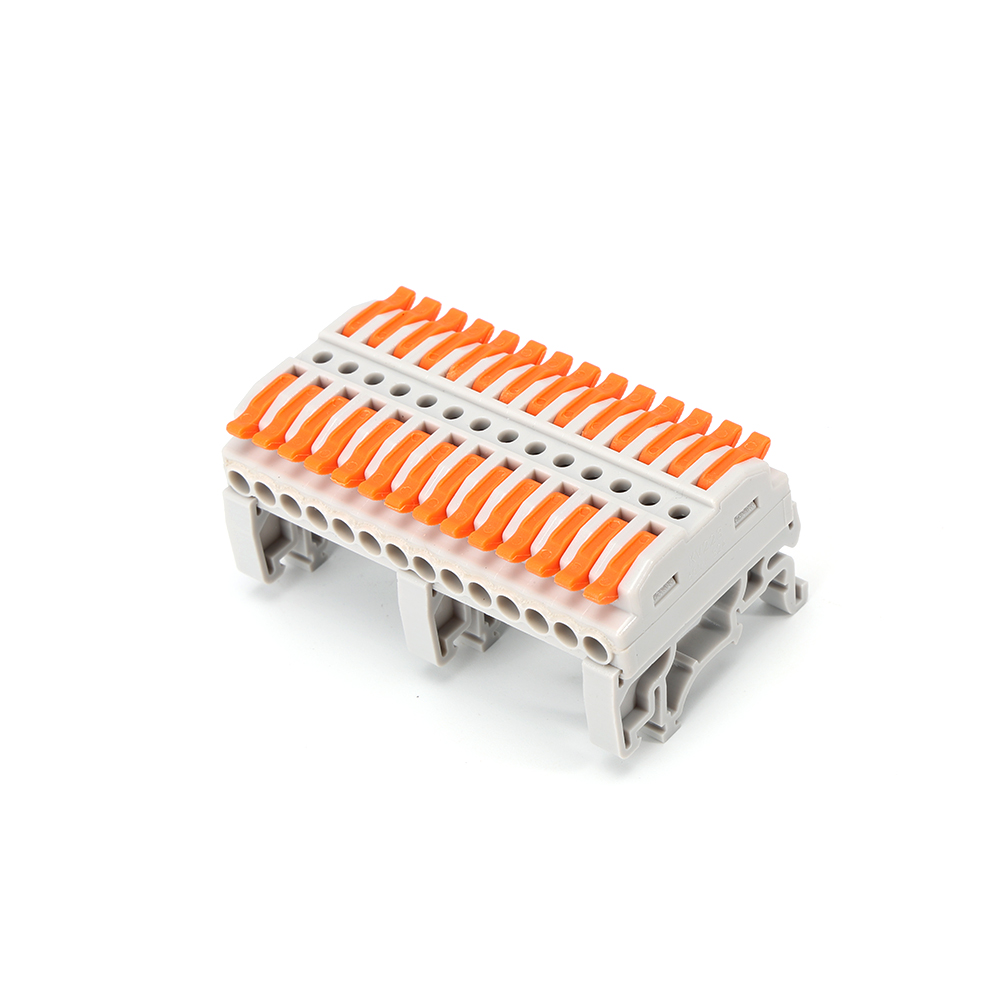

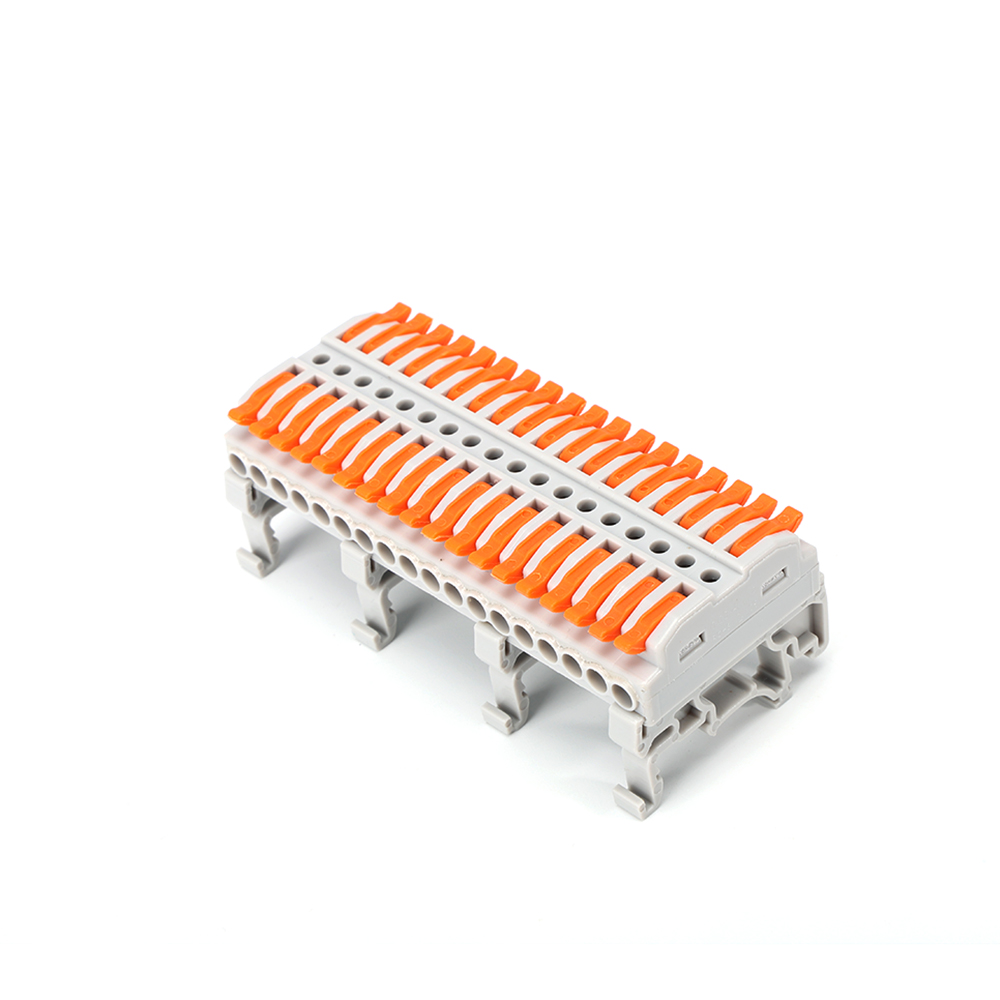

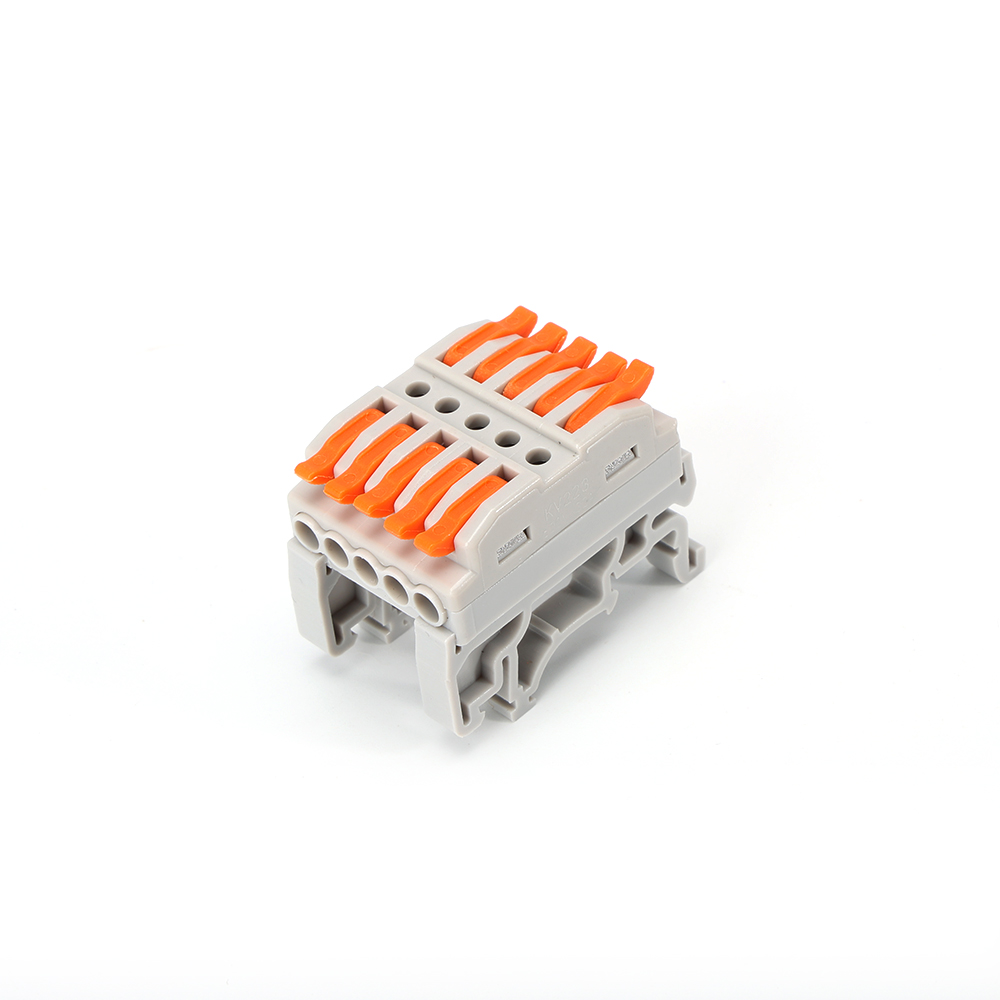

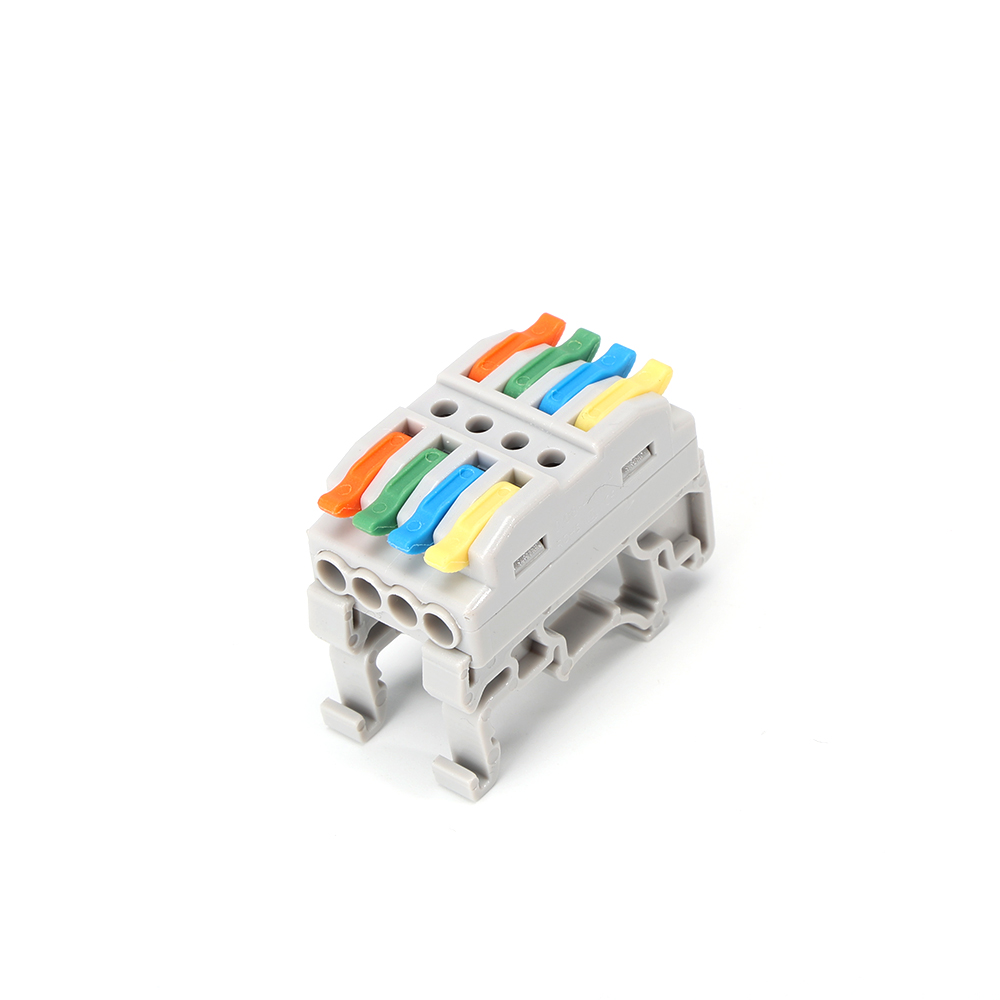

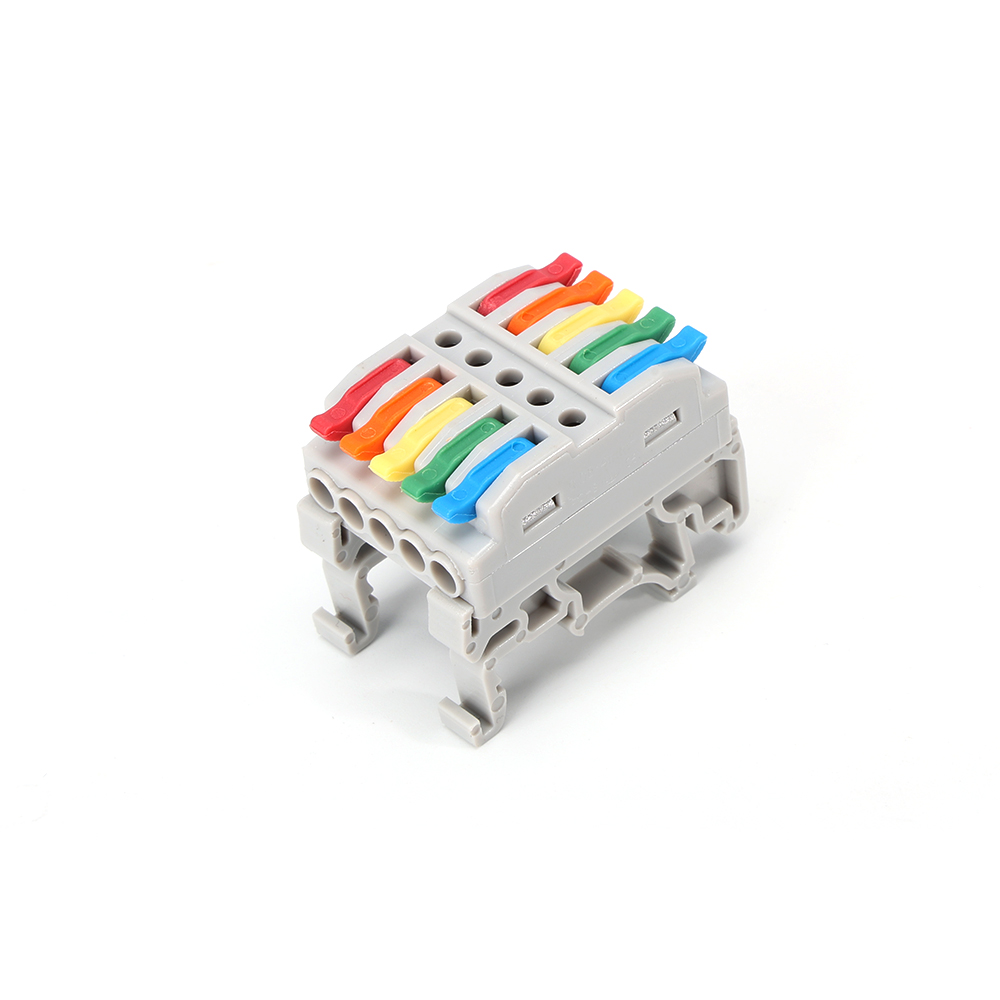

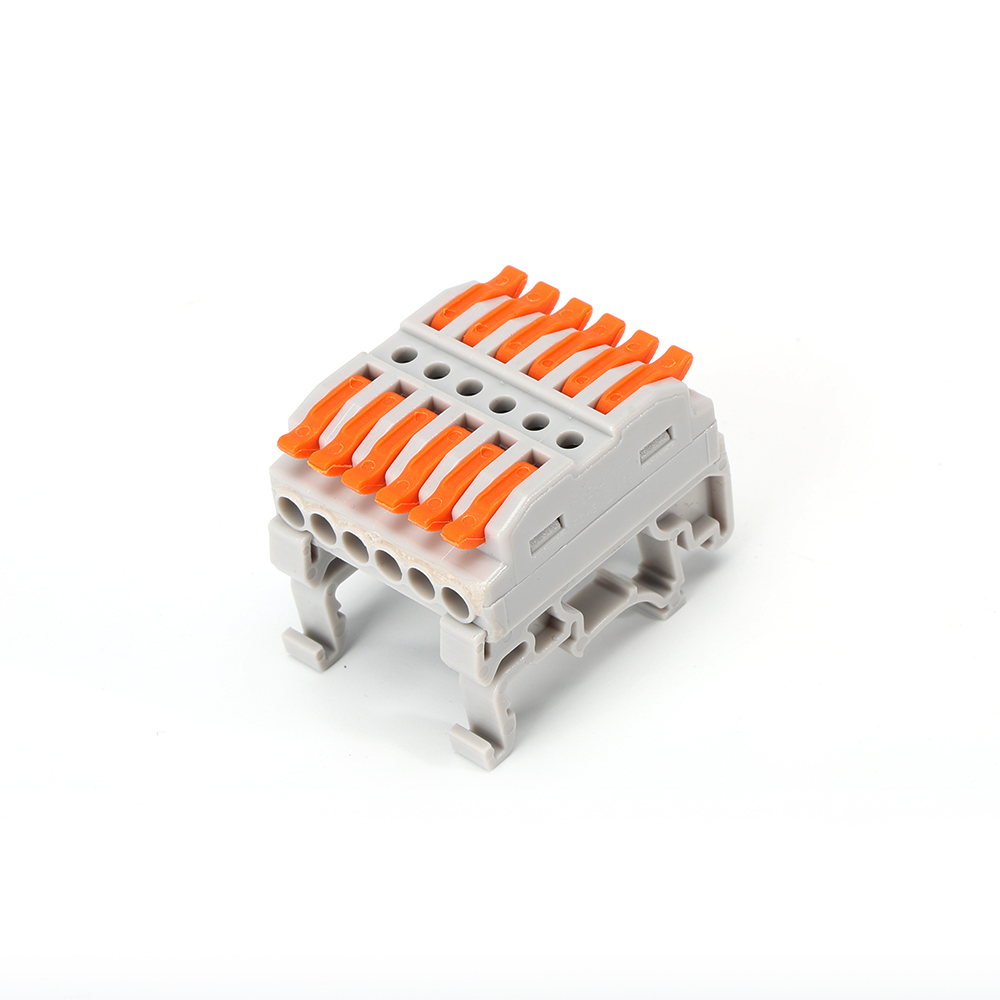

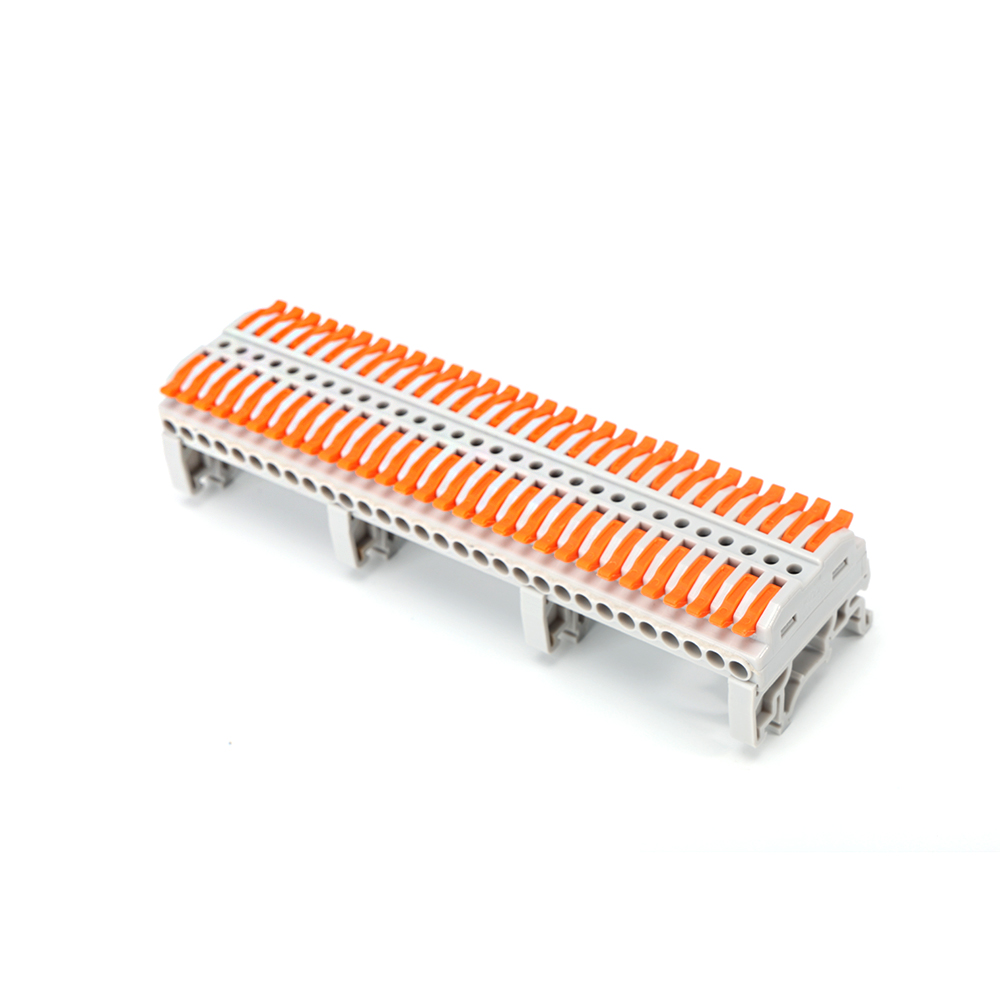

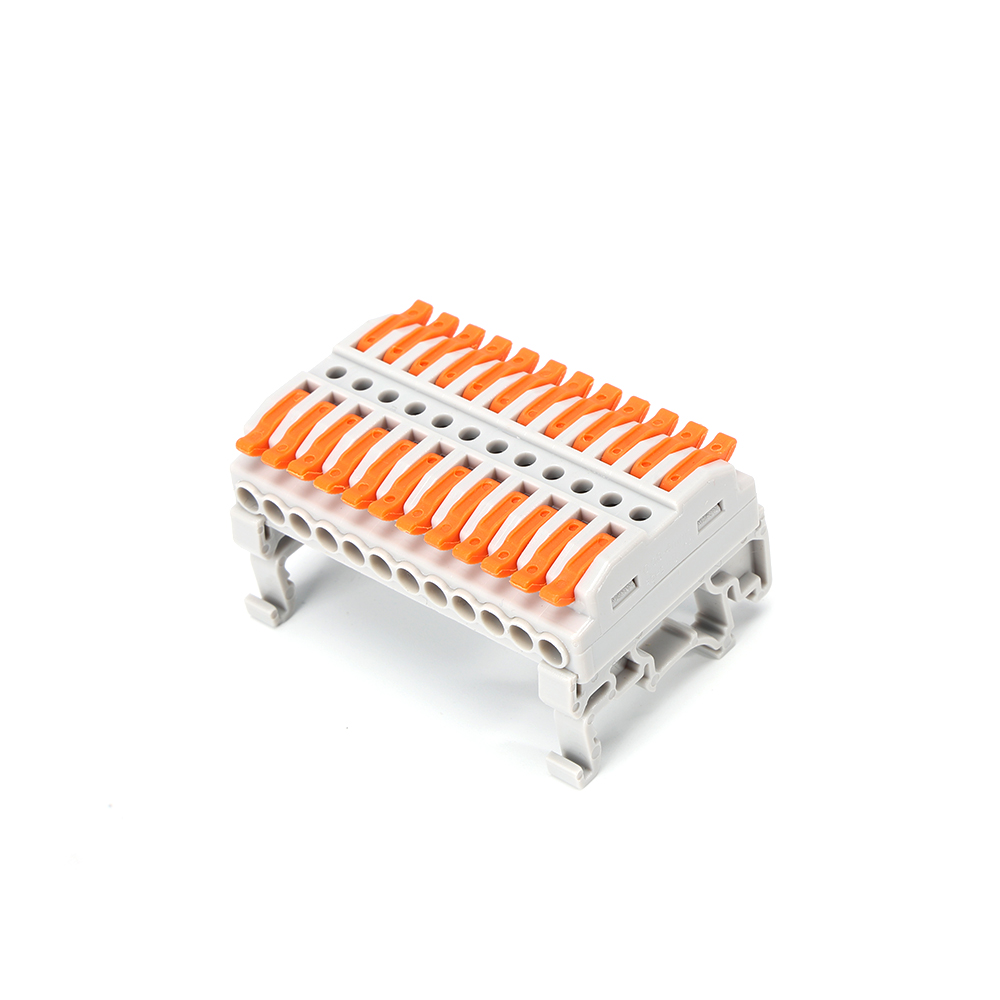

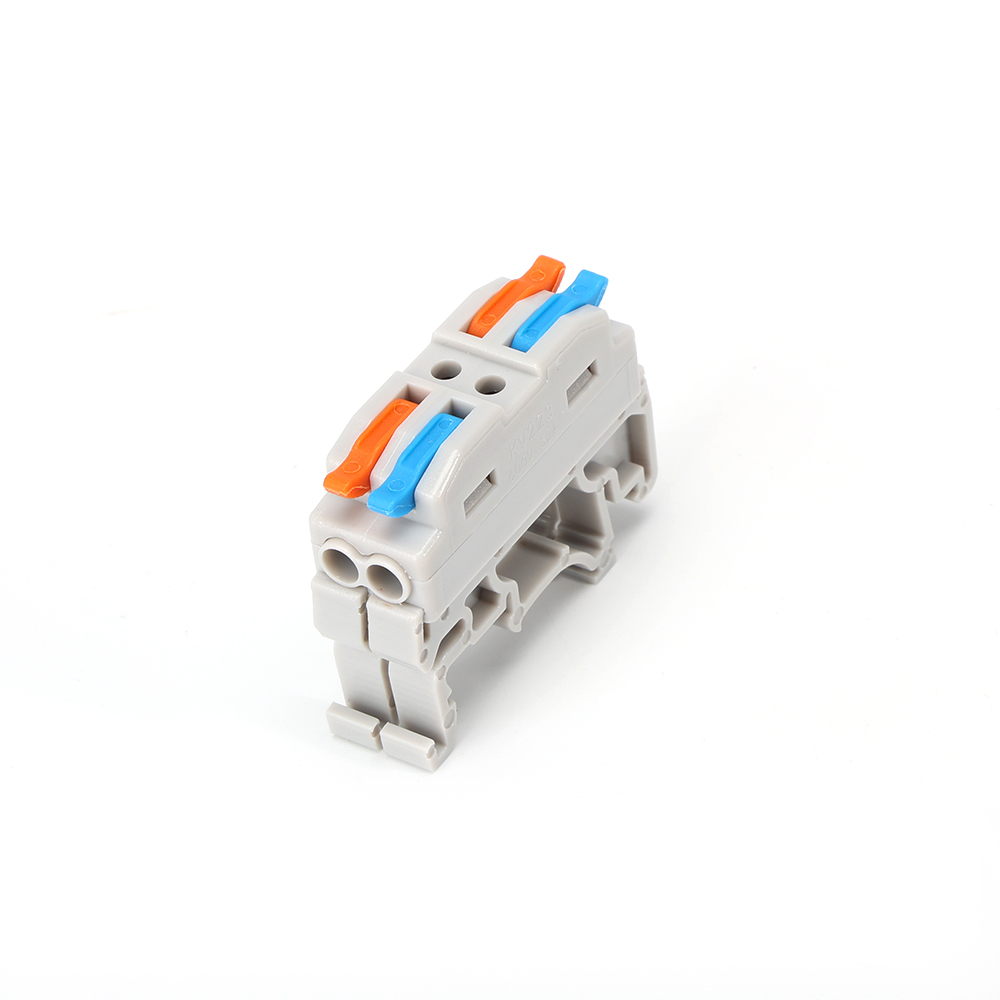

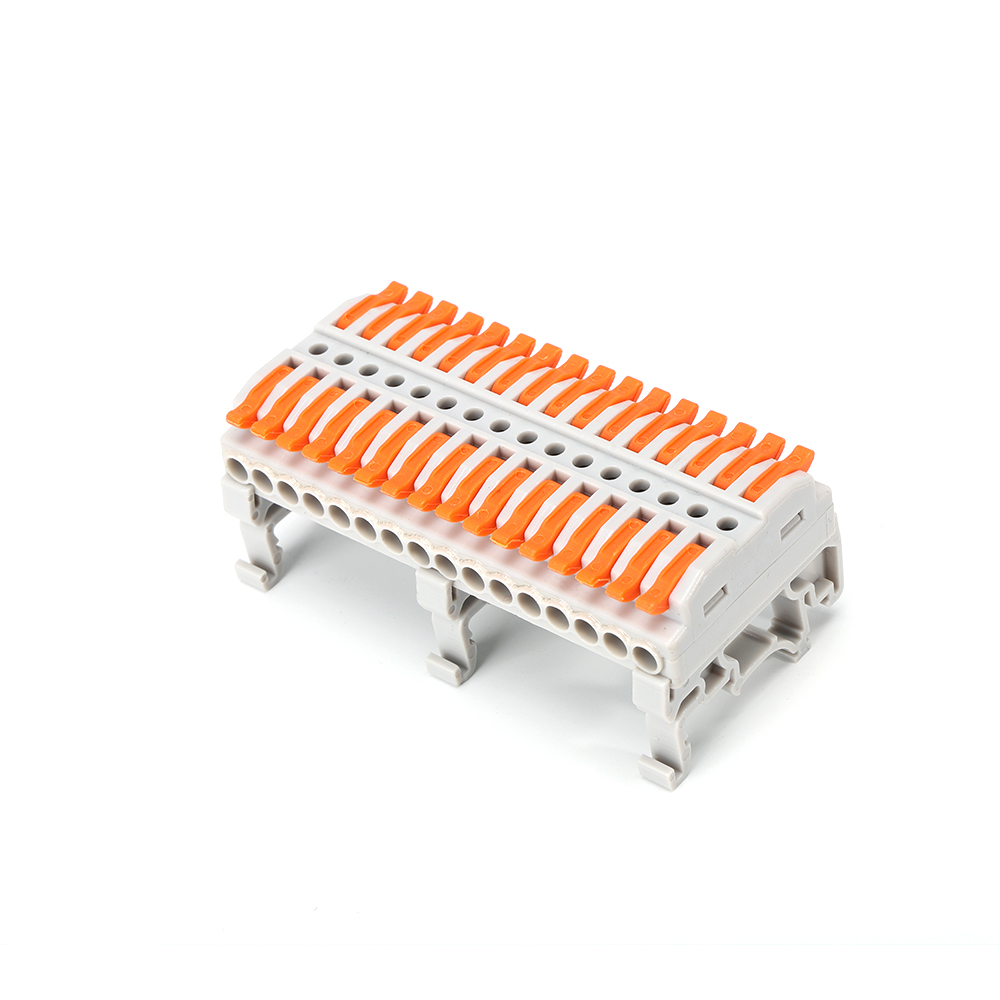

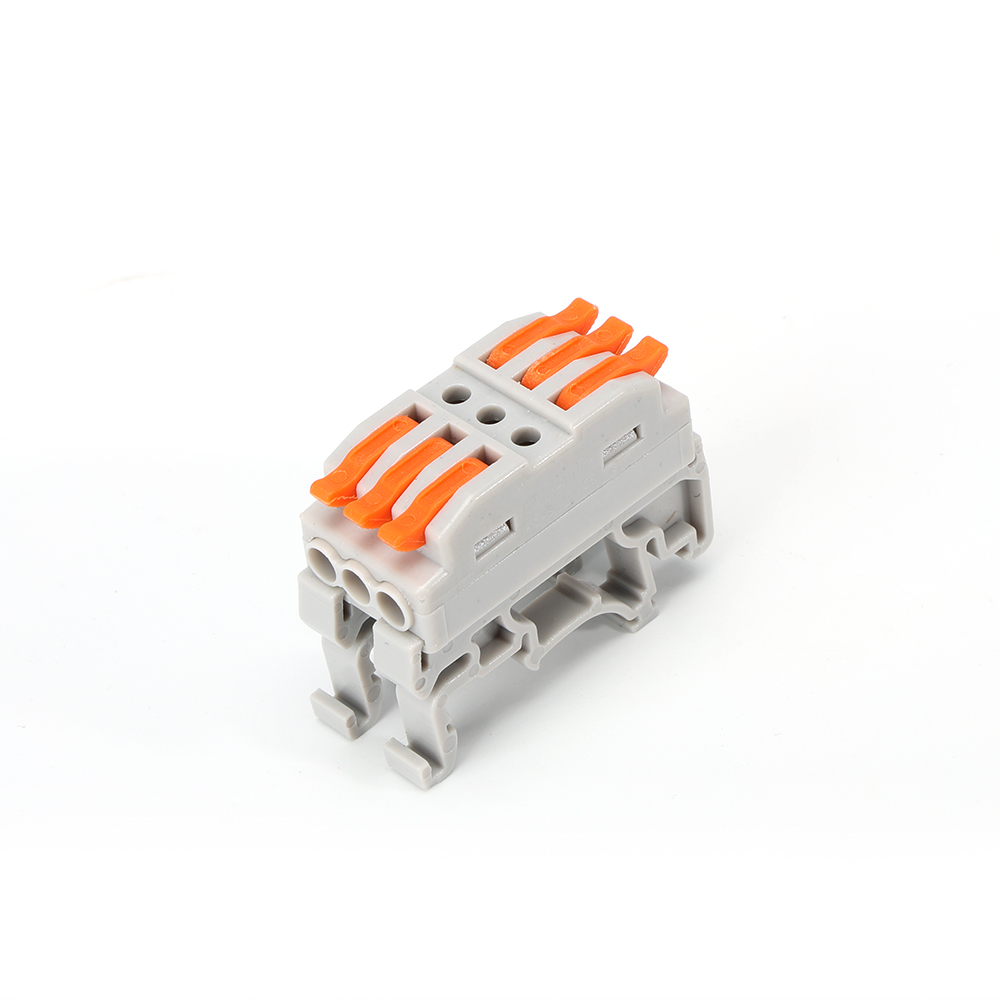

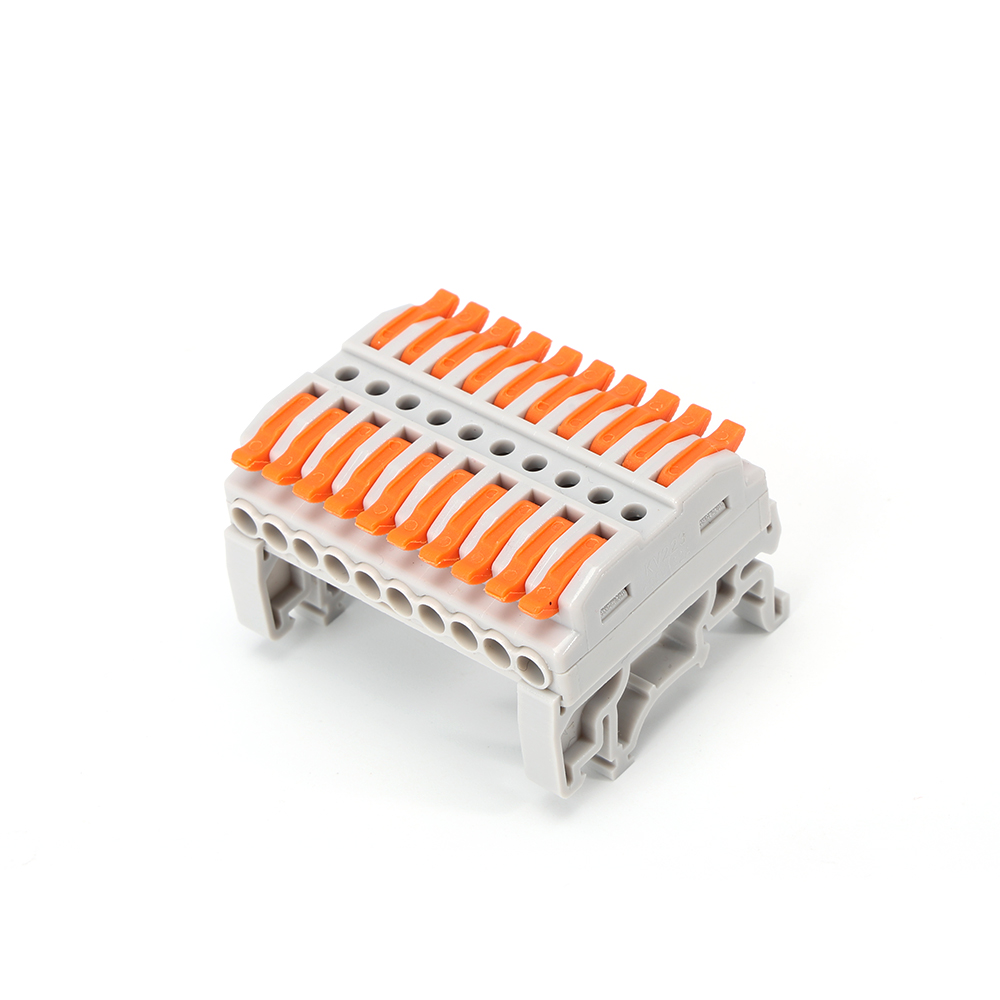

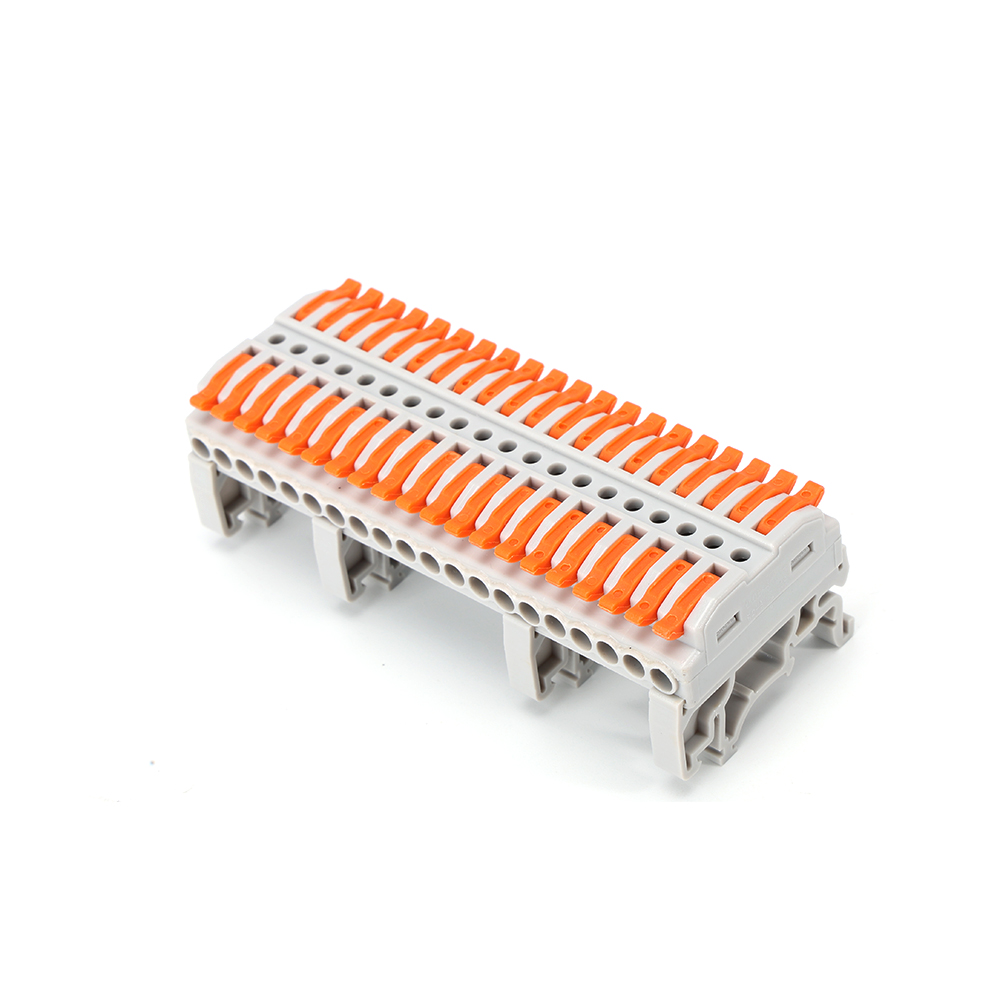

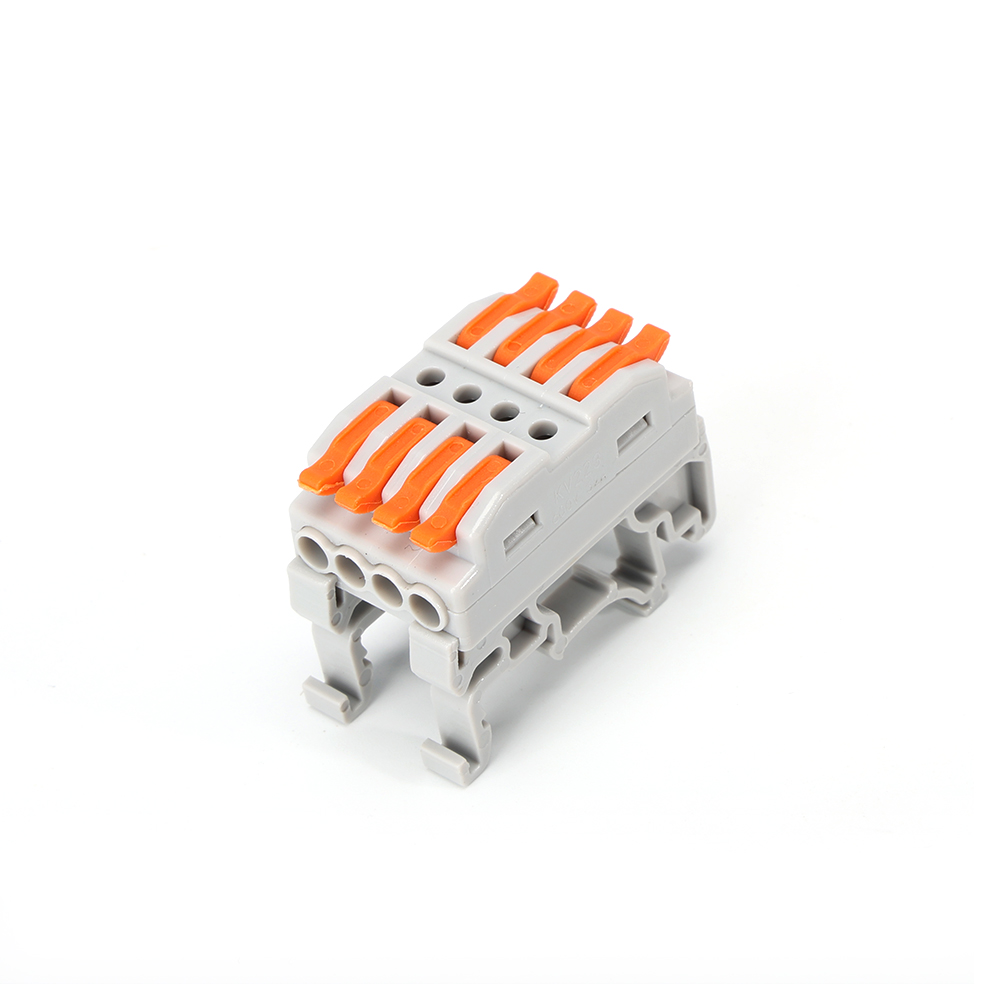

KV223G

Applicable Wires: 0.2-4 mm²

Operating temperature: -25℃~95℃

Rated voltage: 250V/600V

Rated current: 32 A

Number of poles: 2P-38P

Material of connectors shell: Nylon PA66/Polycarbon PC

Material of conductive parts: Brass Tin/plated

Characteristics:

Fast & Tool-Free Installation: The KV223G terminals feature a high-resilience clamping mechanism with lever operation for instant, tool-free wire connections.
Premium Conductivity & Safety: Purple copper conductors ensure low-resistance current flow, while fire-resistant materials enhance protection in demanding applications.
Versatile & User-Friendly: Side mounting holes and a top test port enable secure installation and voltage testing, with easy “lift-and-pull” wire removal for maintenance or reconfiguration.

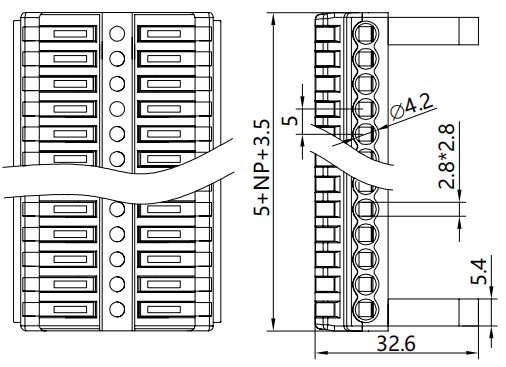

Technical Parameters

Applicable Wire Gauge	0.2-4mm²/28-12AWG
Temperature range	-25℃~95℃
Rated Voltage	250V/600V
Rated Current	32A
Contact resistance	≤0.015Ω
Insulation resistance	≥1000mΩ
Material	Shell: Nylon PA66/Polycarbon PC(Nyion)UL94V-2(0)
	Contact piece: Brass Tin/plated
	Spring buckle: 301 stainless steel
Reach	15 tests

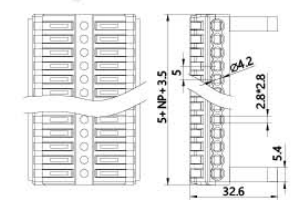

Allowance	±0.05mm
Interval	5.0mm
